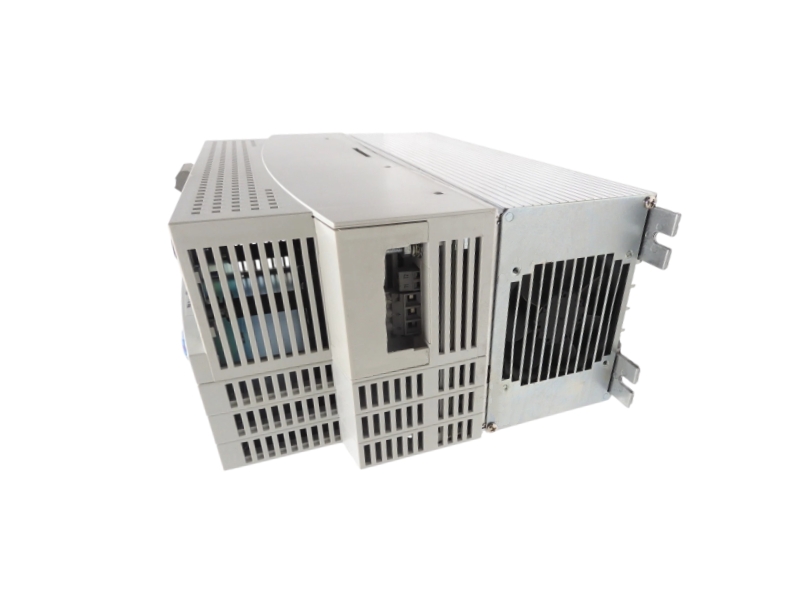

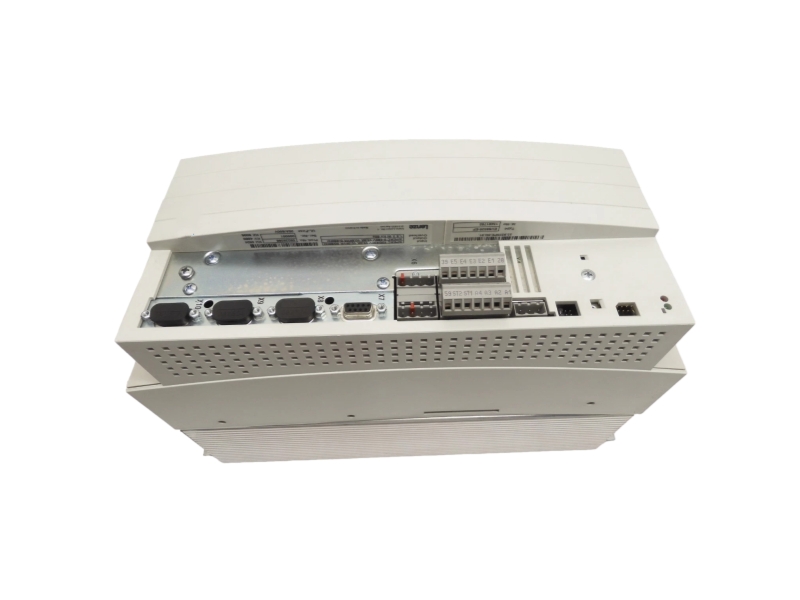

Name: Lenze EVS9325-EP 9300 Position Controller Servo Inverter
Availability: InStock

Order designationEVS9325-EP

Product series9300 Positioner

Application functionPositioning control

Device size reference9325

Default motor assignmentMDFKA80-120

Default motor rated power3.9 kW

Default motor frequency120 Hz

CAN interfaceX4

CAN electrical isolationNot isolated

Analog input 1X6/1 and X6/2

4 to 20 mA input settingC0034 = -1

Analog input monitoringSD5 via C0598

Following-error outputPOS-POUT-NORM

Following-error scalingC1218/1 corresponds to ±10 V

Quick-stop functionQSP

Commissioning software data9300 Positioner device description

Internal fan controlTemperature-controlled

9325 internal fan airflow14 m³/h

Fan switch-on threshold50 °C

Temperature trip threshold85 °C

FUNCTION PATH

How EVS9325-EP closes a positioning task

A practical view of the signal, control and integration decisions behind this model.

CORE ROLEPosition-controlled drive axis

The inverter combines motor control with a configurable position loop, reference handling and machine I/O.

X20

Reference

Position commands and machine signals define the requested motion profile.

Control

The positioner evaluates feedback and generates the motor-control response.

Supervise

Quick stop, following-error signals and diagnostics protect the axis during operation.

APPLICATION 01Indexed machine axis

Execute repeatable point-to-point motion in packaging or material handling.

APPLICATION 02Electronic gearing

Coordinate a driven axis with a machine reference or master motion.

APPLICATION 03Legacy motion service

Maintain a 9300 Positioner installation while preserving its project and feedback system.

PURCHASING FAQ

FAQ for EVS9325-EP

Clear answers for selecting, replacing and sourcing the right configuration.

What control role does Lenze EVS9325-EP perform?

Lenze EVS9325-EP belongs to the 9300 Positioner family and combines inverter operation with configurable positioning functions for a machine axis.

Which default motor assignment is documented for Lenze EVS9325-EP?

Lenze documents MDFKA80-120 as the default C0086 motor assignment for the 9325 EP configuration, rated 3.9 kW at 120 Hz.

How is a 4 to 20 mA signal configured on Lenze EVS9325-EP?

Use analog input 1 at X6/1 and X6/2, fit the documented X3 jumper and set C0034 to -1; configure SD5 monitoring with C0598 when required.

Can the following error of Lenze EVS9325-EP be sent to an analog output?

Yes. Lenze documents POS-POUT-NORM for this purpose, with the normalized value scaled through C1218/1 to the ±10 V analog range.

What must be compared before replacing Lenze EVS9325-EP?

Compare the complete type code, mains and motor data, encoder, option modules, terminal wiring, software version and saved parameter or application project.

Which records should accompany a Lenze EVS9325-EP sourcing request?

Provide nameplate photographs, quantity, destination, motor type, encoder, installed options, parameter backup status and the fault or replacement objective.
