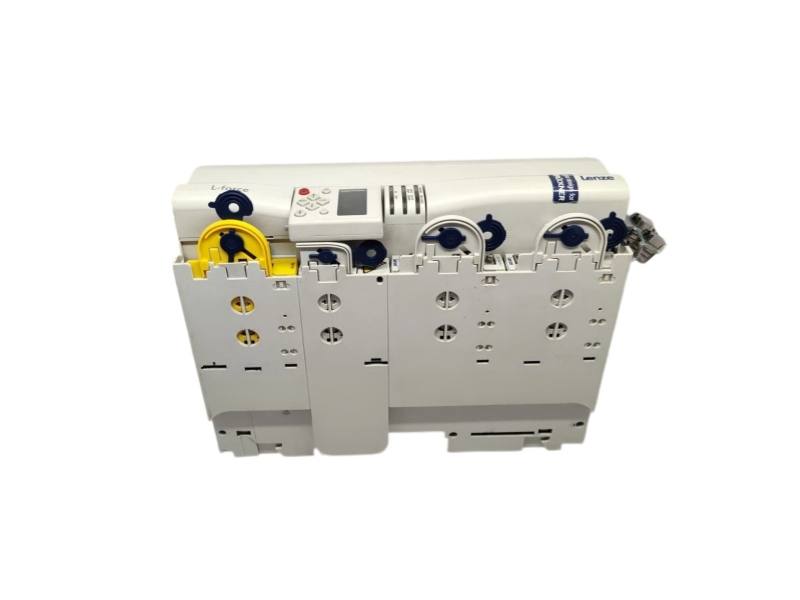

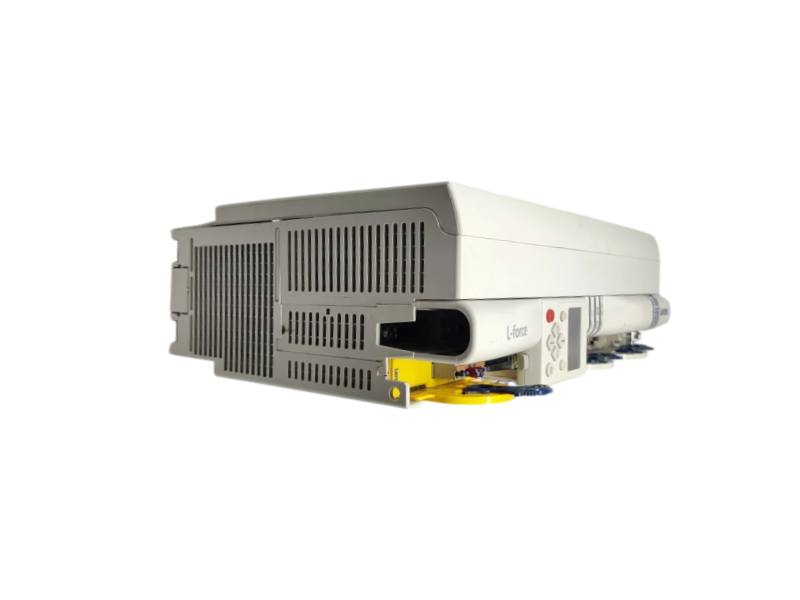

Name: Lenze E94AMHE0244 9400 HighLine Multi Drive Axis Module
Availability: InStock

OFFICIAL MOTION DATA

9400 HighLine motion and interface profile

OFFICIAL DATA COVERAGESeries functions, feedback paths, I/O resources, communication and lifecycle guidance.

Type designationE94AMHE0244

Product family9400 HighLine

Drive architectureMulti Drive axis module

Motion scopeSingle-axis and multi-axis applications

Supported motor typesSynchronous and asynchronous motors

Primary feedbackResolver input

Additional feedbackUniversal multi-encoder input

Function adaptationFunction-block interconnection

Motion technology functionsTable positioning, positioning control, electronic gearbox and cam motion

Multi Drive power range0.37 to 30 kW

Single Drive family range0.37 to 240 kW

Motor connectionSingle Drive and Multi Drive

Safety conceptScalable safety functions

Safe sensor connectionSafe inputs supported

Safe feedback pathSafe outputs supported

Holding brakeHolding-brake control connection

Digital inputs9 input channels

Digital outputs4 output channels

Analog inputs2 input channels

Analog outputs2 output channels

Industrial EthernetEtherCAT and EtherNet/IP options

Fieldbus optionsCANopen, DeviceNet, PROFIBUS and PROFINET

Safety bus optionsFSoE and PROFIsafe

Ecodesign standardEN IEC 61800-9-2

Safety-rated encoder connectionSupported

Safety PLC operationAvailable through the safety-bus architecture

Lifecycle classificationClassic

New-project guidanceSuccessor product series recommended

FUNCTION PATH

How E94AMHE0244 coordinates a precision axis

A motion path from setpoint and feedback to motor control, machine synchronization and safe response.

Reference

Receive the motion command from the controller or the configured technology application.

SETPOINT

Measure

Evaluate resolver or multi-encoder feedback for position and speed information.

FEEDBACK

Synchronize

Execute positioning, gearing or cam functions through the configured function-block network.

MOTION LOGIC

Protect

Coordinate safe inputs, safe feedback and the selected safety module with the machine concept.

SAFETY

APPLICATION 01

Coordinated machine axes

For multi-axis systems that share a drive architecture and synchronized motion sequence.

APPLICATION 02

Electronic gearing

For lines that electronically couple master and follower axes without mechanical gearing.

APPLICATION 03

Cam and positioning tasks

For repeatable position profiles, table positioning and configurable cam motion.

BUYER GUIDANCE

E94AMHE0244 questions answered

Selection, integration, lifecycle and quotation guidance written for practical purchasing decisions.

Where does Lenze E94AMHE0244 fit within a 9400 drive system?

E94AMHE0244 is a 9400 HighLine Multi Drive axis module intended to operate within the coordinated DC-bus, backplane and module architecture of the 9400 platform.

Which motor technologies can Lenze E94AMHE0244 control?

The official HighLine platform supports synchronous and asynchronous motors. Motor current, voltage, feedback and control data must still match the exact axis configuration.

Which feedback paths are available for Lenze E94AMHE0244 motion control?

The 9400 HighLine design provides a resolver input and a universal multi-encoder input that can serve motor feedback or an additional displacement-measuring system.

What machine functions can be configured in Lenze E94AMHE0244?

HighLine technology functions include table positioning, positioning control, electronic gearing and cam motion, with behavior adapted through function-block interconnection.

How should the Classic lifecycle of Lenze E94AMHE0244 affect a new project?

Lenze marks the 9400 HighLine range Classic and recommends a successor series for new designs. Existing machines may still be supported, but migration requires project and hardware review.

What must be identified before requesting Lenze E94AMHE0244 supply?

Send the full nameplate, hardware and firmware versions, safety and memory modules, fieldbus option, feedback type, motor data, project backup, quantity and destination.
