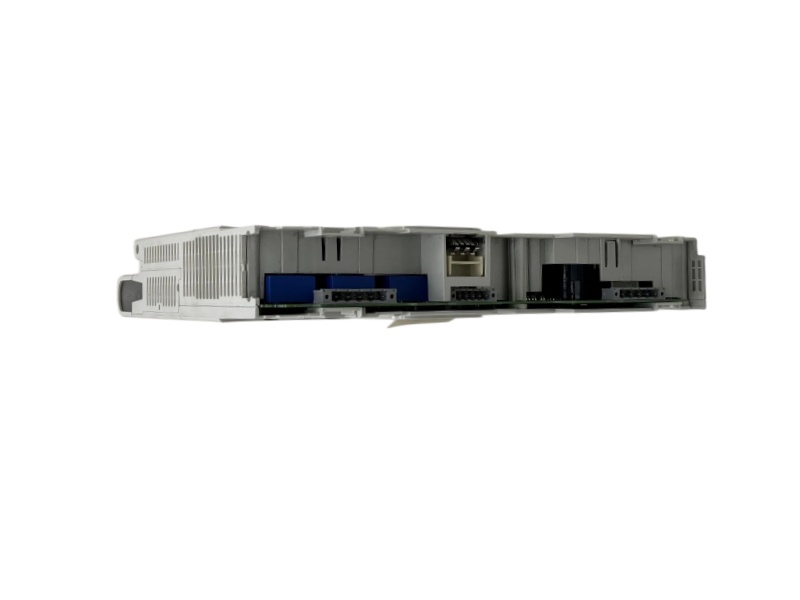

Lenze E94AMHE0024 axis module view 1

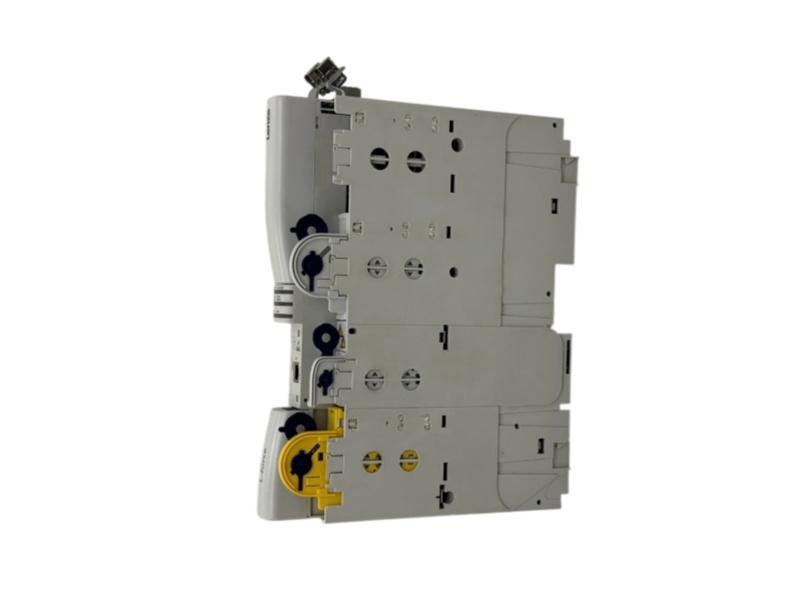

Lenze E94AMHE0024 axis module view 2
Lenze E94AMHE0024 axis module view 3

Lenze E94AMHE0024 9400 HighLine Multi Drive Axis Module

9400
MODULAR SERVO MOTION CONTROL

E94AMHE0024

Lenze E94AMHE0024 is a 9400 HighLine Multi Drive axis module for precise positioning, electronic gearing and cam-based motion in automated machinery.

MULTI DRIVEMOTIONHIGHLINE
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Lenze
Item number E94AMHE0024
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
OFFICIAL TECHNICAL DATA

Platform and integration data

HighLine motion functions organized for system planning.

01
Order codeE94AMHE0024
Product family9400 Servo Drives
Technology levelHighLine
Device architectureMulti Drive axis module
Supported motorsSynchronous and asynchronous
Primary motion tasksPositioning, gearing and camming
Integrated motion controlConfigurable
Feedback inputResolver supported
Additional feedbackUniversal multi-encoder input
Engineering softwareL-force Engineer
Parameter storageRemovable memory module concept
Safety conceptScalable safety modules
CAN-based fieldbus optionsCANopen and DeviceNet
Industrial Ethernet optionsEtherCAT, Ethernet and EtherNet/IP
PLC fieldbus optionsPROFIBUS and PROFINET
Safety fieldbus optionsFSoE and PROFIsafe
Function configurationFunction-block interconnection
Digital output supplySeparate external 24 V at X4
02
SIGNAL JOURNEY

How HighLine executes a motion profile

A modular process from automation command to supervised servo movement.

SIGNAL WORKBENCHPlan.
Synchronize.
Execute.
Diagnose.

The axis module converts coordinated machine logic into precise motor motion.

01

Plan

The configured application generates a position or speed profile for the machine axis.

02

Synchronize

Electronic gearing or cam functions relate the axis to the required master reference.

03

Execute

The power stage drives a matched synchronous or asynchronous motor through the DC-bus system.

04

Diagnose

Status, feedback and fault data support commissioning and machine-level supervision.

USE 01

PACKAGING AXES

Run coordinated cyclic positioning and cam profiles in modular machinery.

USE 02

MATERIAL HANDLING

Synchronize conveyors, feeders and transfer mechanisms around a shared machine sequence.

USE 03

MULTI-AXIS SYSTEMS

Integrate several servo axes through a common DC-bus and control architecture.

BUYER QUESTIONS

FAQ for Lenze E94AMHE0024

Practical guidance for confident sourcing and system planning.

03
QUESTION 01

What type of device is Lenze E94AMHE0024?

It belongs to the 9400 HighLine Multi Drive family and serves as a modular servo axis module rather than a complete stand-alone drive system.

QUESTION 02

Which motors can Lenze E94AMHE0024 control?

The 9400 HighLine platform supports compatible synchronous and asynchronous motors with the appropriate feedback, power and parameter configuration.

QUESTION 03

Which machine functions are suited to Lenze E94AMHE0024?

It is designed for demanding positioning, electronic gear and cam applications in coordinated machinery.

QUESTION 04

Why must the X4 supply be checked on Lenze E94AMHE0024?

Lenze states that the digital outputs at X4 require their own external 24 V supply; the external supply at X2 alone does not power those outputs.

QUESTION 05

Can Lenze E94AMHE0024 be replaced without reviewing the Multi Drive system?

No. Confirm DC-bus topology, motor and encoder data, safety module, communication option, memory module, firmware and application project before substitution.

QUESTION 06

Which files should accompany a Lenze E94AMHE0024 sourcing request?

Include nameplate photos, the exported parameter set or project, installed option-module details, connected motor data, quantity and delivery destination.
