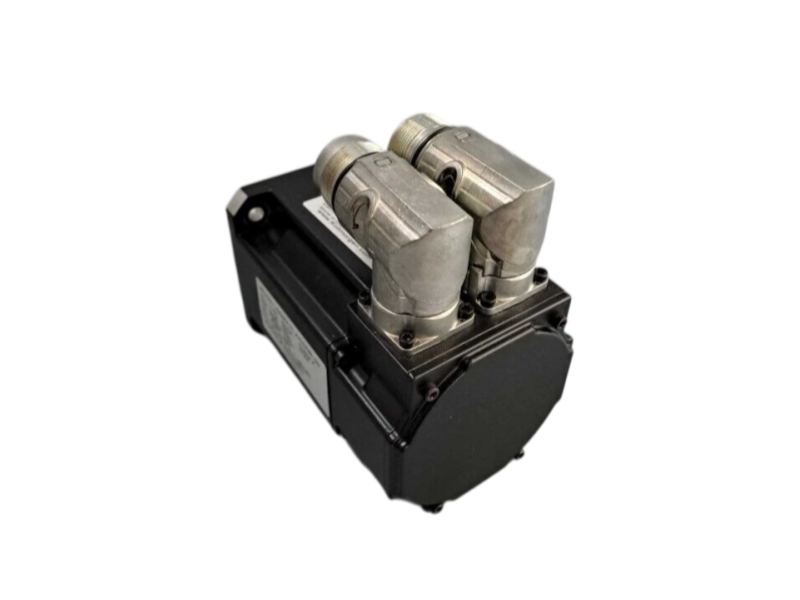

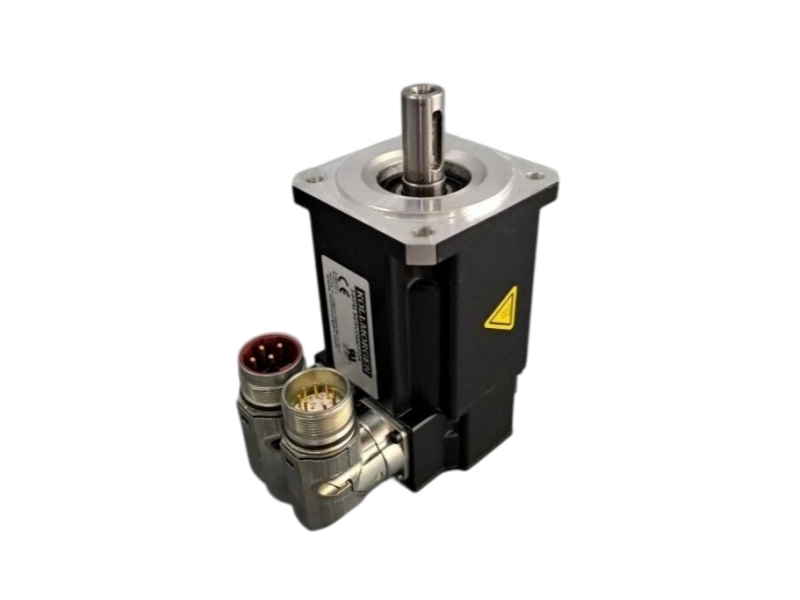

Name: Kollmorgen AKM31C-ACCNR-00 AKM Synchronous Servo Motor
Availability: InStock

OFFICIAL MOTOR DATA

AKM31C performance and configuration profile

OFFICIAL DATA COVERAGEBase-motor performance, suffix interpretation, feedback and mechanical selection data from Kollmorgen.

Complete modelAKM31C-ACCNR-00

Motor seriesAKM synchronous servo motor

Frame size code3

Frame dimension70 mm

Rotor stack length1 stack

Winding codeC winding

Mount / shaft codeAC

Connection codeC connector option

Brake codeN, no holding brake

Feedback codeR, resolver

Customization code00

Continuous torque at 60 deg C rise0.92 Nm

Peak stall torque3.88 Nm

Peak line current5.5 Arms

Maximum speed8000 rpm

Motor weight1.55 kg

Rotor inertia0.33 kg-cm2

Shaft arrangementKeyway for AC option

Mount standardIEC-type AKM mounting option

Feedback technologySingle-turn resolver

Motor constructionBrushless synchronous AC

Drive matchingCompatible Kollmorgen servo drive required

Cable matchingResolver and power cables selected by connector option

Commissioning requirementCorrect motor and feedback setup

Maximum rated DC bus voltage640 VDC

Continuous torque at 100 deg C rise1.15 Nm

Continuous stall current1.37 Arms

Torque constant0.85 Nm/Arms

Back-EMF constant54.5 V/krpm

Motor constant0.150 Nm/sqrt(W)

Line-to-line resistance21.4 ohm

Line-to-line inductance37.5 mH

FUNCTION PATH

How AKM31C-ACCNR-00 converts current into servo motion

A closed-loop path from the drive command through stator torque, resolver feedback and mechanical output.

Energize

Apply the drive's controlled three-phase current to the C-winding stator.

MOTOR CURRENT

Accelerate

Produce rotor torque within the continuous and peak limits of the AKM31C base motor.

TORQUE

Resolve

Return shaft position and speed through the resolver feedback circuit.

FEEDBACK

Correct

Let the matched servo drive close the motion loop and regulate the commanded axis.

CLOSED LOOP

APPLICATION 01

Compact indexing axes

For high-speed indexers that fit the AKM31C torque and inertia envelope.

APPLICATION 02

Resolver-based machinery

For machines designed around robust resolver feedback and Kollmorgen servo drives.

APPLICATION 03

Legacy AKM replacement

For exact ACCNR-00 mechanical and feedback replacement without changing machine interfaces.

BUYER GUIDANCE

AKM31C-ACCNR-00 questions answered

Selection, integration, lifecycle and quotation guidance written for practical purchasing decisions.

What does the suffix in Kollmorgen AKM31C-ACCNR-00 control?

The suffix defines the AC mount/shaft arrangement, connection option C, no holding brake, resolver feedback and standard 00 customization.

Which torque and speed values belong to Kollmorgen AKM31C-ACCNR-00?

Kollmorgen's AKM31C C-winding data lists 0.92 Nm continuous torque at a 60 deg C winding rise, 3.88 Nm peak torque and a maximum speed of 8000 rpm.

Which feedback device is built into Kollmorgen AKM31C-ACCNR-00?

Feedback code R specifies a resolver. The servo drive must use the correct resolver input, cable pinout and motor setup.

How should Kollmorgen AKM31C-ACCNR-00 be matched to a servo drive?

Check DC-bus voltage, peak and continuous current, motor database, resolver compatibility, power connector, feedback cable and application speed before commissioning.

Can another AKM31C replace Kollmorgen AKM31C-ACCNR-00 without mechanical changes?

Not automatically. A different suffix can change flange, shaft, connectors, brake or feedback, so both the base model and every configuration character must match.

Which nameplate details should be photographed for Kollmorgen AKM31C-ACCNR-00 pricing?

Capture the complete model, serial number, voltage and current data, connector views, shaft and flange, cable labels, condition, quantity and destination.
