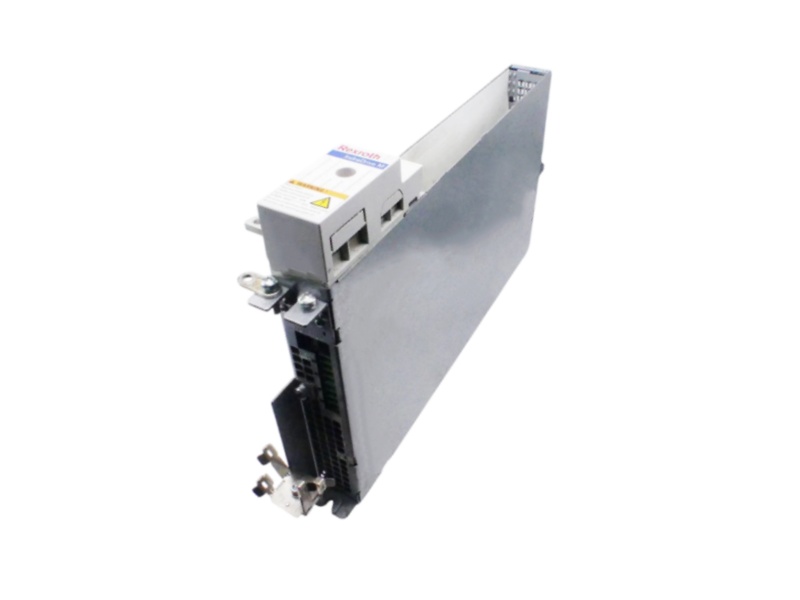

Bosch Rexroth HMD01.1N-W0012-A-07-NNNN double-axis inverter view 1

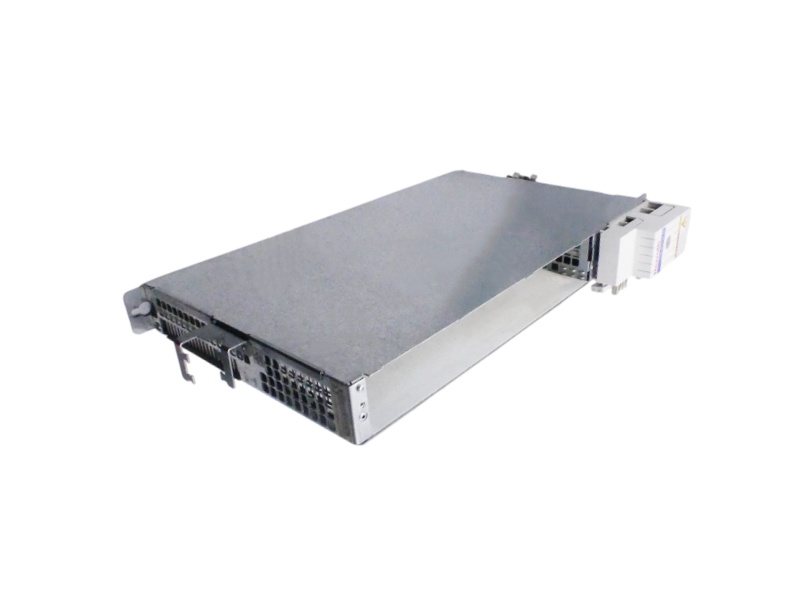

Bosch Rexroth HMD01.1N-W0012-A-07-NNNN double-axis inverter view 2
Bosch Rexroth HMD01.1N-W0012-A-07-NNNN double-axis inverter view 3

Bosch Rexroth HMD01.1N-W0012-A-07-NNNN IndraDrive M Double-Axis Inverter

AXIS
MODULAR SERVO POWER SECTION

HMD01.1N-W0012-A-07-NNNN

Bosch Rexroth HMD01.1N-W0012-A-07-NNNN is a compact IndraDrive M double-axis inverter designed for coordinated control of two servo axes in automated machinery.

2 AXES12 A MAX750 VDC
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Bosch Rexroth
Item number HMD01.1N-W0012-A-07-NNNN
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
OFFICIAL TECHNICAL DATA

Power-section and installation data

Official IndraDrive M limits for cabinet and axis engineering.

01
Type codeHMD01.1N-W0012-A-07-NNNN
Material numberR911306439
Rated input current17.0 A
Motor output voltage3 x AC 0 to 530 V
Maximum output current per axis12.0 A at 4 or 8 kHz
Continuous output current at 4 kHz6.9 A
Continuous output current at 8 kHz3.7 A
Typical braking voltage50 V
Permitted switching frequencies4 and 8 kHz
DC-bus voltage range254 to 750 VDC
DC-bus overvoltage threshold900 VDC
DC-bus undervoltage threshold254 VDC
Control voltage24 VDC ±20%
Brake supply under 50 m24 VDC ±5%
Brake supply over 50 m26 VDC ±5%
CoolingForced ventilation
Required airflow17 m³/h
Operating temperature0 to 40 °C
Reduced-data operationUp to 55 °C
Current derating2% per K above 40 °C
Mounting positionG1
Insulation resistance>50 MΩ at 500 VDC
Width50 mm
Height440 mm
Depth262 mm
Mass5.50 kg
02
SIGNAL JOURNEY

How the double-axis power section operates

A shared DC link feeds two independently regulated servo power stages.

SIGNAL WORKBENCHReceive.
Distribute.
Regulate.
Protect.

The modular power path supports two motors while sharing the IndraDrive M DC-bus infrastructure.

01

Receive

The module connects to the common IndraDrive M DC bus and control-voltage system.

02

Distribute

Internal power electronics provide separate controlled output paths for two machine axes.

03

Regulate

The associated controls command phase current according to each motor and feedback configuration.

04

Protect

Voltage, current and thermal supervision keep both power stages within documented operating boundaries.

USE 01

COMPACT MULTI-AXIS MACHINES

Concentrate two servo outputs in a narrow modular drive cabinet.

USE 02

PACKAGING LINES

Operate coordinated machine axes through a shared IndraDrive M power architecture.

USE 03

HANDLING SYSTEMS

Power two matched positioning axes where cabinet density and shared DC energy matter.

BUYER QUESTIONS

FAQ for Bosch Rexroth HMD01.1N-W0012-A-07-NNNN

Practical guidance for confident sourcing and system planning.

03
QUESTION 01

What does Bosch Rexroth HMD01.1N-W0012-A-07-NNNN control?

It is an IndraDrive M double-axis inverter that provides two motor power stages within a modular DC-bus drive system.

QUESTION 02

Which cooling arrangement is required for Bosch Rexroth HMD01.1N-W0012-A-07-NNNN?

The official project-planning data specifies forced ventilation and the required airflow must be maintained through the cabinet layout.

QUESTION 03

Can Bosch Rexroth HMD01.1N-W0012-A-07-NNNN operate as a stand-alone drive?

No. It is designed as an IndraDrive M axis module and depends on the matching DC-bus, control, feedback and system components.

QUESTION 04

Which cabinet checks matter for Bosch Rexroth HMD01.1N-W0012-A-07-NNNN?

Verify mounting position, airflow, ambient temperature, derating, clearances, protective grounding and the common DC-bus arrangement.

QUESTION 05

What must be compared before replacing Bosch Rexroth HMD01.1N-W0012-A-07-NNNN?

Match the complete type code and material number, motor data, current profile, switching frequency, firmware, safety functions, control sections and connection hardware.

QUESTION 06

Which documents should be sent with a Bosch Rexroth HMD01.1N-W0012-A-07-NNNN inquiry?

Attach both nameplates, the IndraDrive project or parameter backup, connected motor types, cabinet photos, quantity, destination and requested delivery date.
