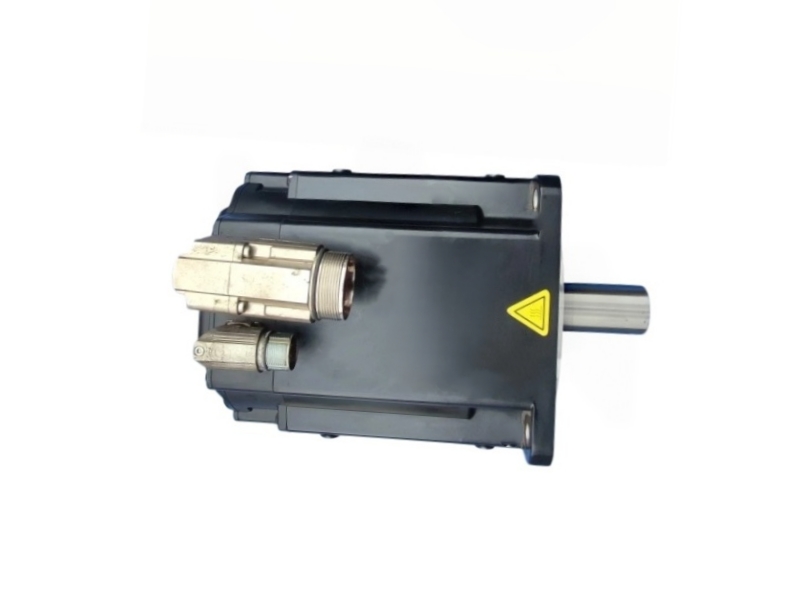

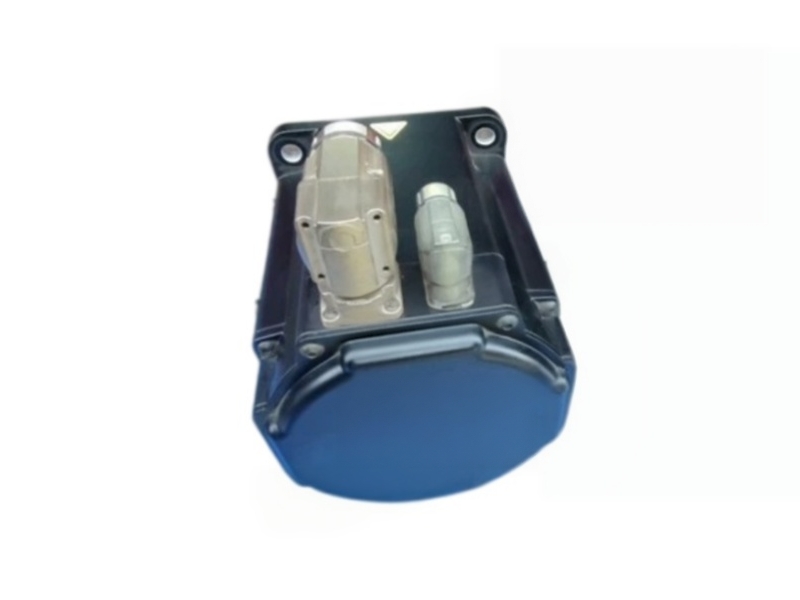

Name: Beckhoff AM3073-0Q30-0000 AM3000 Synchronous Servomotor
Availability: InStock

OFFICIAL MOTOR DATA

Servo torque, speed and mechanical configuration

Electrical rating, feedback, shaft, connector and installation data.

Order codeAM3073-0Q30-0000

Motor seriesAM3000

Motor technologyPermanent-magnet synchronous

Voltage class400 V

Rated voltage480 VAC

Rated speed3000 rpm

Rated power7.92 kW

Rated torque25.2 Nm

Standstill torque41.6 Nm

Peak torque168.0 Nm

Standstill current24.6 A

Peak current122.6 A

Torque constant1.69 Nm/A

Rotor inertia92.0 kgcm2

CoolingNatural convection

FeedbackSingle-turn BiSS absolute encoder

Encoder resolution2048 sine periods per revolution

ShaftSmooth shaft

Holding brakeNot fitted

Connector arrangementRotatable angular connectors

Motor connectionM40

Housing protectionIP54

MountingIM B5, IM V1 or IM V3

Ambient temperature5 to 40 degrees C

Flange diameter180 mm j6

Shaft diameter38 mm k6

Free shaft length80 mm

Motor weight26.7 kg

ConformityCE and cURus

Lifecycle phaseService phase

FUNCTION PATH

How the configured AM3073 converts commands into axis motion

From drive current and rotor feedback to controlled torque, speed and machine movement.

Command

Receive the motion target from the machine controller and servo drive.

Energize

Apply regulated three-phase current to the Q winding.

Measure

Return single-turn absolute rotor information through the BiSS encoder.

Correct

Adjust current and position control from the feedback response.

Move

Deliver the commanded mechanical motion through the smooth shaft.

HIGH-DYNAMIC AXESFor machinery requiring rapid acceleration with precise closed-loop control.

POSITIONED MACHINE MOTIONFor indexing, handling and coordinated mechanisms using absolute rotor feedback.

LEGACY AM3000 SERVICEFor exact configuration replacement while an AM8000 migration is engineered.

BUYER DECISION GUIDE

AM3073-0Q30-0000 questions answered

Clear guidance for configuration, compatibility, sourcing and documentation.

QUESTION 01

What motor configuration is encoded by Beckhoff AM3073-0Q30-0000?

The suffix identifies a Q winding, smooth shaft, single-turn BiSS absolute encoder, no holding brake and rotatable angular connectors.

QUESTION 02

How does the resolver-free feedback path of Beckhoff AM3073-0Q30-0000 affect drive selection?

The installed drive and feedback interface must support the specified BiSS absolute encoder and its sine-period format; a resolver-only interface is not equivalent.

QUESTION 03

Which servo-drive checks are essential for Beckhoff AM3073-0Q30-0000?

Confirm voltage class, current capability, feedback option, motor data set, connector pinout and the selected Beckhoff drive family.

QUESTION 04

Why does Beckhoff AM3073-0Q30-0000 require extra attention on a vertical axis?

This configuration has no holding brake, so the machine must provide an appropriate load-holding and safety strategy outside the motor.

QUESTION 05

What does the service phase mean for Beckhoff AM3073-0Q30-0000 replacement planning?

Beckhoff recommends AM8073 for new projects, but it is an engineered migration rather than a guaranteed drop-in exchange.

QUESTION 06

What should accompany a Beckhoff AM3073-0Q30-0000 quotation request?

Provide the complete motor label, drive model, cable and connector details, installed orientation, load data, quantity and delivery destination.
