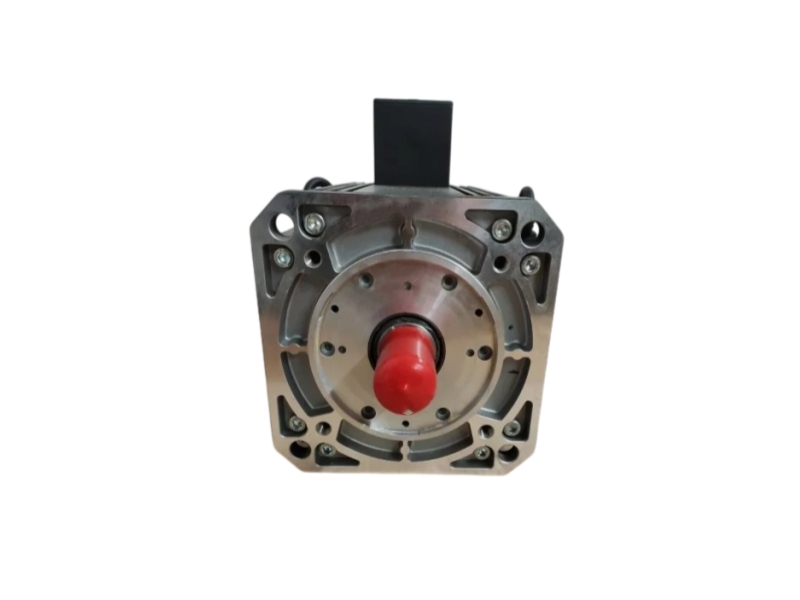

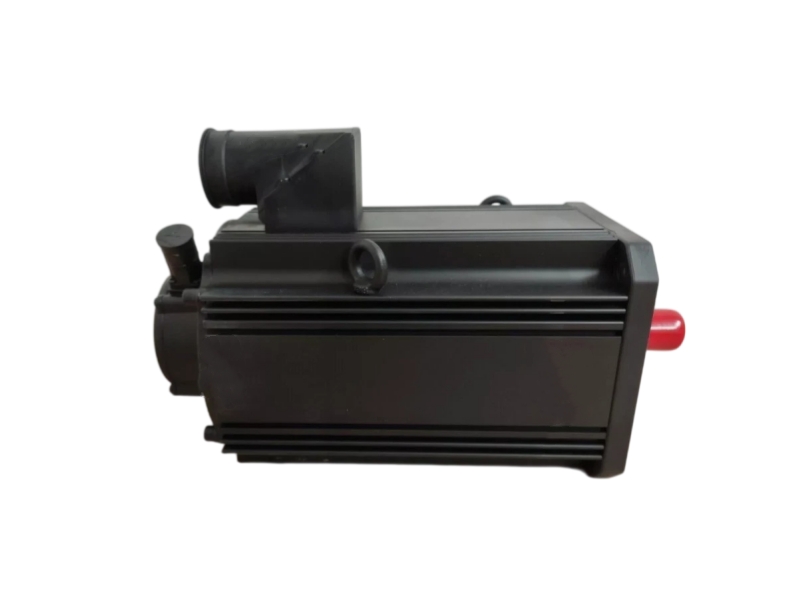

Name: Bosch Rexroth MSK100B-0200-NN-S1-BG0-NNNN IndraDyn S Synchronous Servo Motor
Availability: InStock

Complete type codeMSK100B-0200-NN-S1-BG0-NNNN

Product seriesIndraDyn S MSK

Motor size100

Motor lengthB

Winding code0200

Cooling modeNatural convection

Encoder codeS1

Encoder typeOptical singleturn Hiperface, 128 signal periods

Electrical connectionConnector on B-side

Shaft designPlain shaft with shaft sealing ring

Holding brakeWithout holding brake

Continuous torque at standstill, 60 K28.0 Nm

Continuous current at standstill, 60 K14.7 A rms

Continuous torque at standstill, 100 K33.0 Nm

Continuous current at standstill, 100 K17.3 A rms

Continuous surface torque42.0 Nm

Continuous surface current22.1 A rms

Maximum torque102.0 Nm

Maximum current66.2 A rms

Torque constant at 20 °C2.10 Nm/A

Voltage constant at 20 °C129.5 V per 1000 min⁻¹

Winding resistance at 20 °C0.58 Ω

Winding inductance7.6 mH

Discharge capacitance10.3 nF

Pole pairs4

Rotor moment of inertia0.01920 kg·m²

Thermal time constant40.0 min

Maximum speed4100 min⁻¹

Sound pressure levelBelow 75 dB(A)

Motor weight34.0 kg

Operating ambient temperature0 to 40 °C

Protection ratingIP65; thermal class 155

FUNCTION PATH

How MSK100B-0200-NN-S1-BG0-NNNN drives a precision axis

A practical view of the signal, control and integration decisions behind this model.

CORE ROLEHigh-torque servo stage

The permanent-magnet synchronous motor converts controlled drive current into precise torque and motion at the machine axis.

X20

Command

The matched Rexroth drive generates the torque and speed command for the selected winding.

Convert

The naturally cooled motor produces controlled shaft torque across the permitted operating envelope.

Feedback

The singleturn Hiperface encoder returns rotor position and electronic motor data to the drive.

APPLICATION 01Machine-tool feed axis

Provide precise torque and position feedback for controlled linear or rotary motion.

APPLICATION 02Packaging motion

Drive synchronized indexing, sealing or handling mechanisms with high peak torque.

APPLICATION 03Installed IndraDrive service

Replace a motor while retaining the validated drive, cable and mechanical interface.

PURCHASING FAQ

FAQ for MSK100B-0200-NN-S1-BG0-NNNN

Clear answers for selecting, replacing and sourcing the right configuration.

What does the type code MSK100B-0200-NN-S1-BG0-NNNN specify?

MSK100B-0200-NN-S1-BG0-NNNN identifies size 100, length B, 0200 winding, natural cooling, S1 singleturn Hiperface feedback, B-side connectors, a plain sealed shaft and no holding brake.

Which standstill rating applies to MSK100B-0200-NN-S1-BG0-NNNN?

The documented 60 K standstill rating is 28.0 Nm at 14.7 A rms, while the 100 K rating is 33.0 Nm at 17.3 A rms.

How does MSK100B-0200-NN-S1-BG0-NNNN report rotor position?

The S1 option uses an optical singleturn Hiperface encoder with 128 signal periods and electronic motor data for the matched Rexroth drive.

Does MSK100B-0200-NN-S1-BG0-NNNN include a holding brake?

No. The brake code 0 means this configuration has no holding brake, so the machine must not depend on a motor brake for vertical-load retention.

Which motor interfaces make MSK100B-0200-NN-S1-BG0-NNNN a configuration-specific replacement?

The full type code, material number, flange, shaft coupling, connector orientation, encoder and power cables, drive compatibility and stored motor parameters all affect interchangeability.

Which details are needed for an MSK100B-0200-NN-S1-BG0-NNNN quotation?

Provide quantity, destination, complete nameplate photographs, Rexroth material number, drive model, cable codes, mounting arrangement and required delivery date.
