Name: Kollmorgen AKM41E-ACCNR-00 AKM Synchronous Servomotor
Availability: InStock

Kollmorgen AKM41E-ACCNR-00 AKM Synchronous Servomotor

KOLLMORGEN / AKM SERVO MOTOR

AKM41E-ACCNR-00

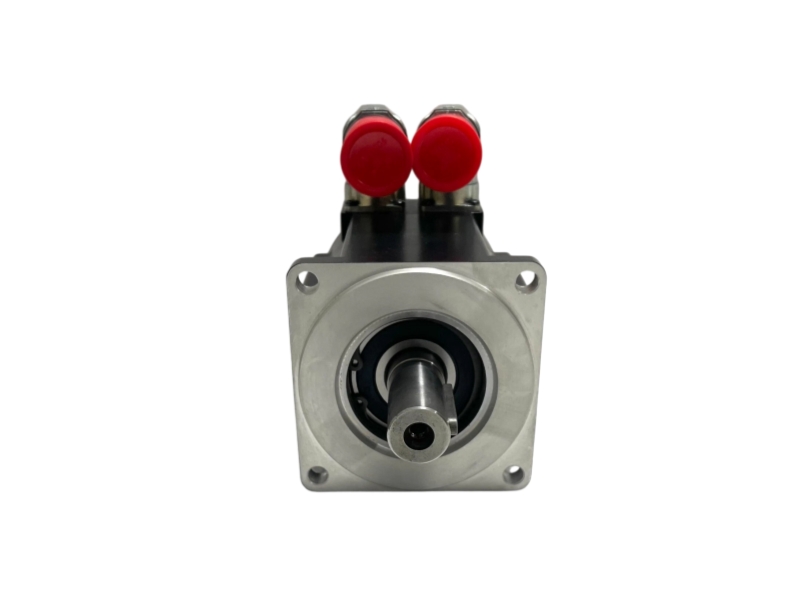

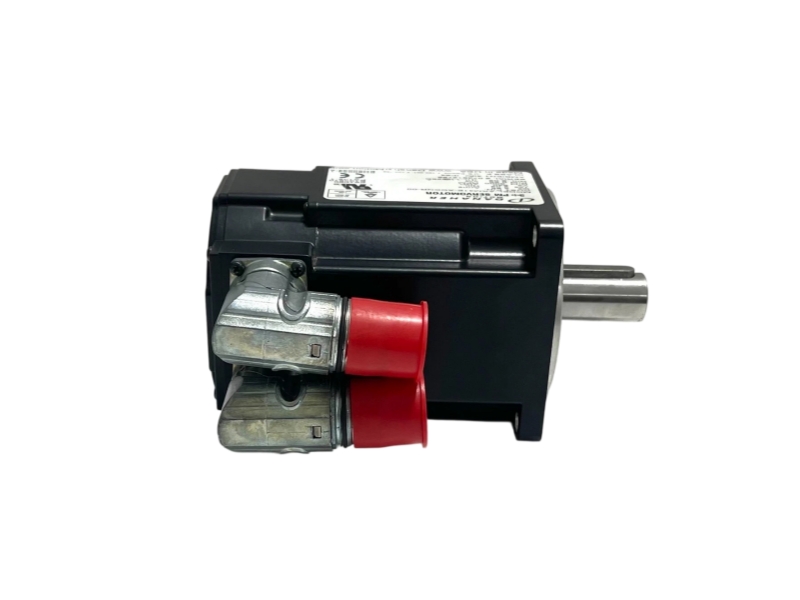

Kollmorgen AKM41E-ACCNR-00 is an 84 mm-frame AKM servomotor with keyed shaft, dual M23 connectors, resolver feedback and no brake.

Integrity SupplyOne Year WarrantyFast Delivery

Inquire Now WhatsApp +86 18106909650

OFFICIAL SERVO DATA

AKM41 mechanical, feedback and torque profile

Frame, winding, shaft, connectors, resolver and performance characteristics.

Order codeAKM41E-ACCNR-00

Motor familyAKM Series

Motor technologyPermanent-magnet synchronous

Frame size84 mm

Rotor stack1

Winding codeE

Continuous stall torque, 100 C rise2.02 Nm

Continuous stall torque, 60 C rise1.62 Nm

Peak stall torque5.33 Nm

Continuous stall current2.85 Arms

Peak line current9.0 Arms

Maximum speed4850 rpm

Rotor inertia0.81 kgcm2

Motor weight2.44 kg

Flange optionIEC tolerance

Shaft optionKeyed shaft

Connector optionDual 90-degree M23 Intercontec

Holding brakeNo holding brake

Feedback deviceSingle-turn resolver

Resolver typeInductive, 2-pole

Build code00 standard motor

Shaft sealNo shaft seal

Protection ratingIP54

CoolingNatural convection

FUNCTION PATH

How the AKM resolver motor closes a servo loop

From drive current and resolver angle to controlled shaft torque and machine movement.

Command

Receive the position, speed or torque target in the servo drive.

Energize

Regulate motor phase current for the requested torque.

Sense

Return rotor angle through the single-turn resolver.

Correct

Close the motion loop from command and measured position.

Drive

Transmit controlled torque through the keyed output shaft.

COMPACT SERVO AXESFor precision equipment needing a small low-inertia synchronous motor.

RESOLVER-BASED MACHINESFor systems already engineered around a compatible two-pole resolver interface.

KEYED-SHAFT MECHANISMSFor couplings or gearboxes that require the ACCNR shaft configuration.

BUYER DECISION GUIDE

AKM41E-ACCNR-00 questions answered

Clear guidance for configuration, compatibility, sourcing and documentation.

QUESTION 01

How is the suffix of Kollmorgen AKM41E-ACCNR-00 decoded?

It specifies an IEC flange, keyed shaft, dual 90-degree M23 connectors, no brake, resolver feedback and the standard 00 build.

QUESTION 02

Which feedback electronics must support Kollmorgen AKM41E-ACCNR-00?

The servo drive needs a compatible interface for the installed single-turn, two-pole inductive resolver and the matching feedback cable.

QUESTION 03

What mechanical interfaces should be compared for Kollmorgen AKM41E-ACCNR-00?

Verify flange dimensions and tolerance, shaft diameter and key, connector orientation, cable bend space and the driven coupling.

QUESTION 04

Why is an external holding method important with Kollmorgen AKM41E-ACCNR-00?

The N code means no motor holding brake, so gravity or safety-critical loads need a separately engineered holding solution.

QUESTION 05

Does a newer Kollmorgen motor automatically replace Kollmorgen AKM41E-ACCNR-00?

No direct interchange should be assumed; motor constants, mechanics, feedback, cables and drive configuration must all be compared.

QUESTION 06

Which nameplate details should be supplied for a Kollmorgen AKM41E-ACCNR-00 inquiry?

Send the complete order code, serial and production data, drive model, cable part numbers, load orientation, quantity and destination.
