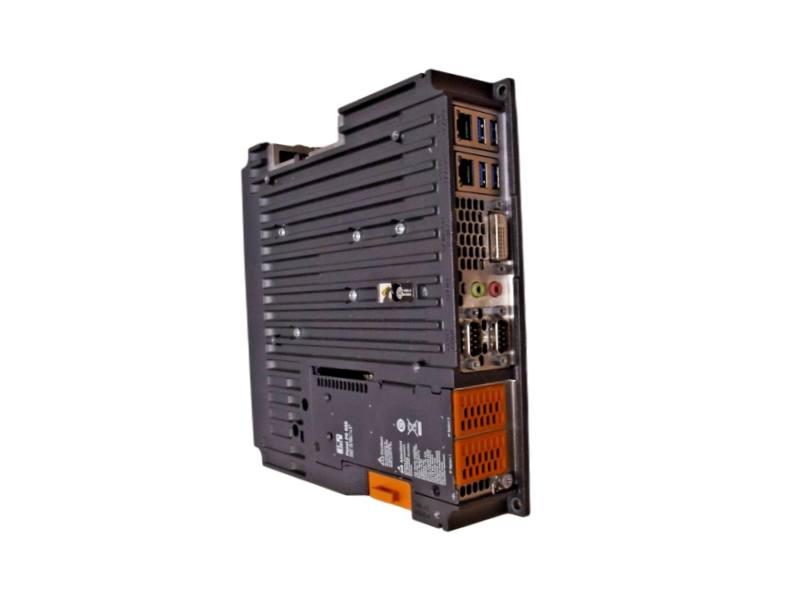

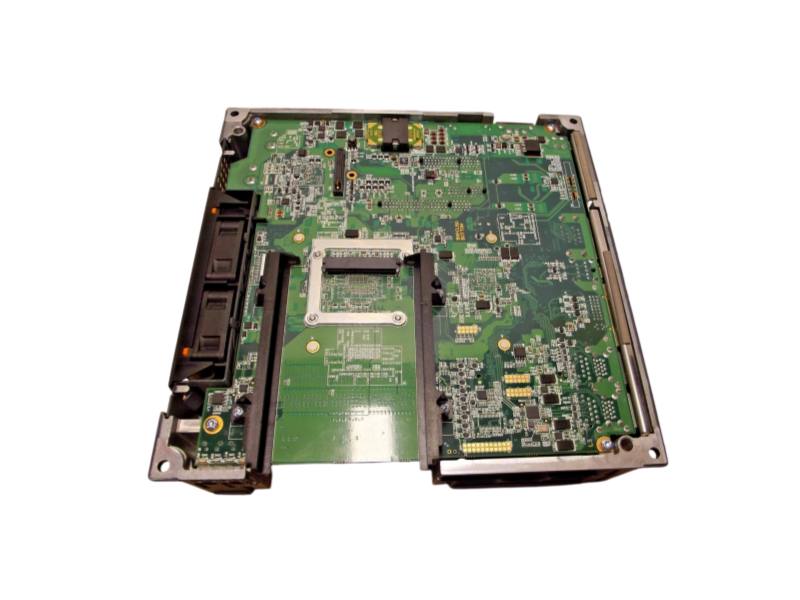

Name: B&R 5PC901.TS77-03 Panel PC 900 CPU Board
Availability: InStock

OFFICIAL CPU DATA

Panel PC 900 compute and interface specifications

OFFICIAL DATA COVERAGEProcessor, memory, graphics, storage, communications and power data from B&R.

Material number5PC901.TS77-03

Target platformPanel PC 900

ProcessorIntel Core i7-3517UE

Clock frequency1700 MHz

Processor cores2 CPU cores

Processor architecture22 nm

Intel Smart Cache4 MB

External busDMI, 5 GT/s

ChipsetIntel QM77

Graphics controllerIntel HD Graphics 4000

Dynamic graphics frequencyUp to 1 GHz

Color depthUp to 32-bit

Memory typeDDR3

Memory channels2 memory channels

Maximum memory16 GB

Maximum memory bandwidth25.6 GB/s

Ethernet ports2 x RJ45

Ethernet rate10/100/1000 Mbit/s

USB ports4 x USB 3.0 Type A

RS232 ports2 x DSUB, 9-pin

CFast slot1 x SATA III

Mass-memory management3 x SATA

Panel interfaceDVI-I for SDL/DVI/Monitor

CoolingPassive via heat sink

Nominal voltage24 VDC +/-25%

Nominal current5.5 A

WeightApproximately 450 g

B&R ID code0xDF8D

BatteryRenata 950 mAh lithium-ion, removable

Battery service life4 years at the stated operating condition

Status LEDsPower, HDD, Link and Run

Power buttonYes

Reset buttonYes, dedicated reset control

BuzzerYes, integrated buzzer

Intel 64 architectureSupported by the processor

Intel Turbo BoostVersion 2.0

Intel Hyper-ThreadingSupported by the CPU

Real-time clock accuracyTypically 12 ppm at 25 deg C

Power-failure buffer time10 ms

DVI resolutionUp to 1920 x 1200 WUXGA

RGB resolutionUp to 2048 x 1536 at 75 Hz

RS232 maximum baud rate115 kbit/s

CFast transfer interfaceSATA III, 6.0 Gbit/s

USB transfer rateUp to SuperSpeed 5 Gbit/s

USB current capacityMaximum 1 A per connection

Audio interfaceHDA with microphone, line input and line output

Inrush currentMaximum 60 A for less than 300 microseconds

Power galvanic isolationYes, power input isolated

Maximum operating elevation3000 m, component-dependent

Overvoltage categoryCategory II per EN 61131-2

FUNCTION PATH

How the PPC900 CPU board organizes machine data

A compute path from field and operator interfaces through processor, memory, storage and display output.

Connect

Receive network, serial, USB and operator-panel data through the integrated interfaces.

I/O ENTRY

Compute

Execute the operating system and machine applications on the dual-core Core i7 processor.

PROCESSING

Store

Use CFast and SATA resources for boot media, application files and service data.

MASS MEMORY

Present

Drive the connected display through DVI-I, SDL or monitor output while reporting platform status.

HMI OUTPUT

APPLICATION 01

Panel PC 900 upgrades

For PPC900 systems that require the exact QM77 CPU-board configuration.

APPLICATION 02

Machine visualization

For industrial HMIs using DVI-I, SDL or monitor connections and local USB service.

APPLICATION 03

Networked machine control

For PC-based automation that uses dual Gigabit Ethernet and serial device integration.

BUYER GUIDANCE

5PC901.TS77-03 questions answered

Selection, integration, lifecycle and quotation guidance written for practical purchasing decisions.

Which memory must be ordered for B&R 5PC901.TS77-03?

The board uses two DDR3 memory channels and supports up to 16 GB. B&R lists compatible 1, 2, 4 and 8 GB SO-DIMM accessories that are ordered separately.

How can B&R 5PC901.TS77-03 connect an operator display?

Its DVI-I panel and monitor interface supports SDL, DVI or monitor operation, with official graphics resolutions up to WUXGA on DVI and QXGA on RGB.

Which storage paths are available on B&R 5PC901.TS77-03?

The CPU board provides a SATA III CFast slot, support for a SATA III slide-in compact drive and mass-memory management for three SATA devices.

Are the serial ports on B&R 5PC901.TS77-03 galvanically isolated?

No. Both COM ports are RS232, modem-capable, 16550-compatible and not galvanically isolated, so grounding and cable routing must follow the PPC900 documentation.

What power conditions must be preserved when replacing B&R 5PC901.TS77-03?

The board uses a 24 VDC nominal supply with +/-25% tolerance and can draw 5.5 A nominally. The official inrush limit and system-unit wiring also need review.

Which files are useful when sourcing B&R 5PC901.TS77-03?

Include the CPU-board label, PPC900 system-unit type, installed memory and storage, BIOS version, operating system, required drivers, quantity and destination.
