Name: B&R 5AC600.SRAM-00 512 KB SRAM Module
Availability: InStock

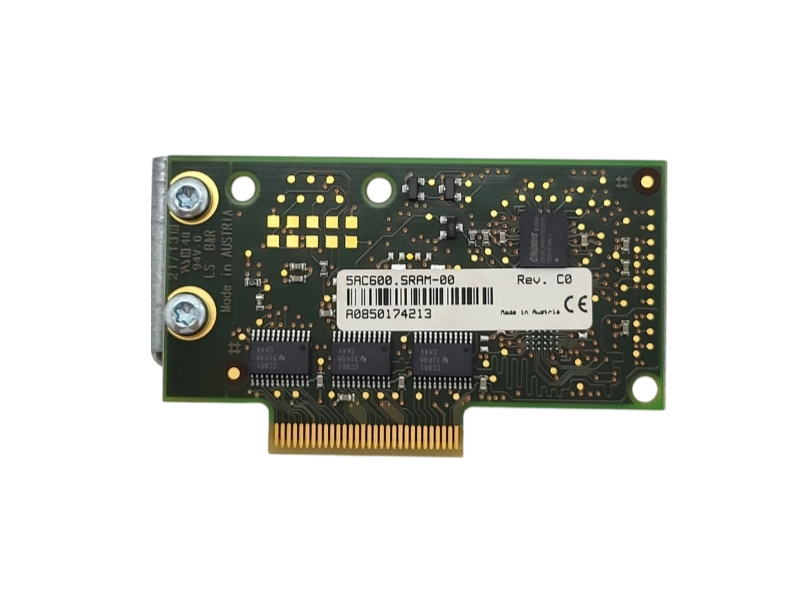

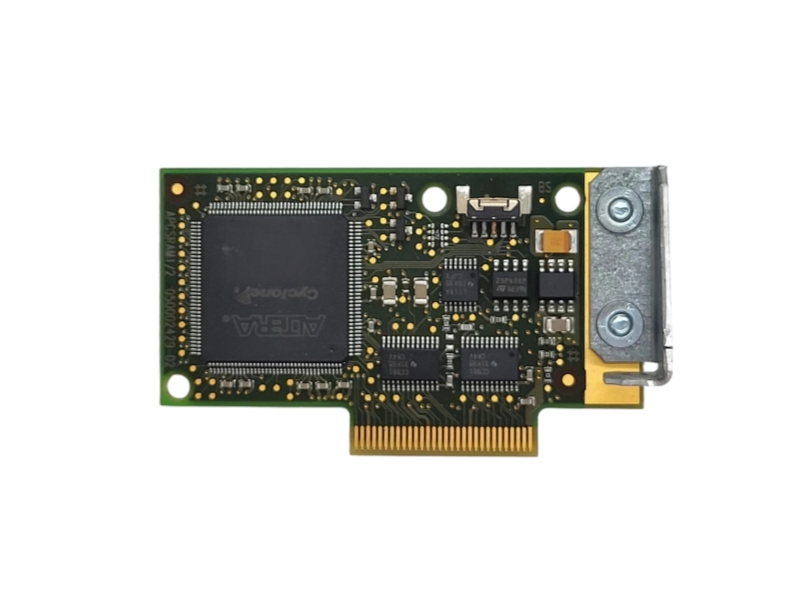

B&R 5AC600.SRAM-00 512 KB SRAM Module

B&R APC620 / RETENTIVE MEMORY5AC600.SRAM-00

BATTERY-BACKED SRAM

B&R 5AC600.SRAM-00 is a battery-backed SRAM expansion for compatible APC620 and PPC700 systems, preserving critical variables during power loss while providing fast local data access.

512 KBSRAM

31 MB/sWRITE

25 MB/sREAD

● Integrity Supply● One Year Warranty● Fast Delivery

PRODUCT ENQUIRYMatch the CPU board and retention requirement.

Inquire Now →WhatsApp +86 18106909650

LEAD TIME2-3 DAYS

OFFICIAL MODULE DATA

Retentive memory & host-board data

Official B&R capacity, transfer-rate and retained-variable values for the exact SRAM module.

Material number5AC600.SRAM-00

Host platform 1Automation PC 620

Software contextAutomation Runtime; see Automation Studio help

Module typeSRAM expansion module

Host platform 2Panel PC 700

CE conformityYes

Total SRAM capacity512 kByte

Retained variables with 5PC600.X855-xx256 kByte

Power-fail useRatained-variable storage

Memory backupBattery-backed

Retained variables with 5PC600.E855-xx256 kByte

Official documentationAutomation PC 620 user manual

Maximum write transfer rate31 MByte/s

Retained variables with 5PC600.X945-00192 kByte

Maximum read transfer rate25 MByte/s

IDENTIFY

Read the IPC model and CPU-board code before selecting the memory expansion.

HOST BOARD

INSTALL

Fit the module with ESD precautions and the machine fully isolated from power.

HARDWARE

ALLOCATE

Define retained variables within the capacity available for the confirmed CPU board.

RUNTIME DATA

PROVE

Perform a controlled power-fail and restart test to verify that the intended values are restored.

RETENTION TEST

PROCUREMENT DECISIONS

5AC600.SRAM-00 buyer questions

Which computers accept B&R 5AC600.SRAM-00?

B&R specifies the module for Automation PC 620 and Panel PC 700 systems; confirm the exact CPU board and slot before installation.

Why does retained capacity vary with B&R 5AC600.SRAM-00 host boards?

The official data assigns different retained-variable capacity to the X855/E855 and X945 CPU-board families, so allocation must follow the installed board.

Does B&R 5AC600.SRAM-00 preserve data without a battery-backed design?

No. The module is explicitly battery-backed, and battery condition plus system maintenance practice must be included in the retention plan.

How should B&R 5AC600.SRAM-00 data retention be tested after installation?

Configure the intended retained variables, save the project, perform a controlled power interruption and confirm the expected values after restart.

What must be migrated when replacing B&R 5AC600.SRAM-00?

Back up the Automation Runtime project and retained-data definition, verify the CPU-board family, then retest power-fail behavior with the replacement module.

Which details are needed for a B&R 5AC600.SRAM-00 documentation request and quote?

Send the IPC and CPU-board codes, module label, required condition and quantity, destination and delivery date, and request the applicable APC620 manual.
