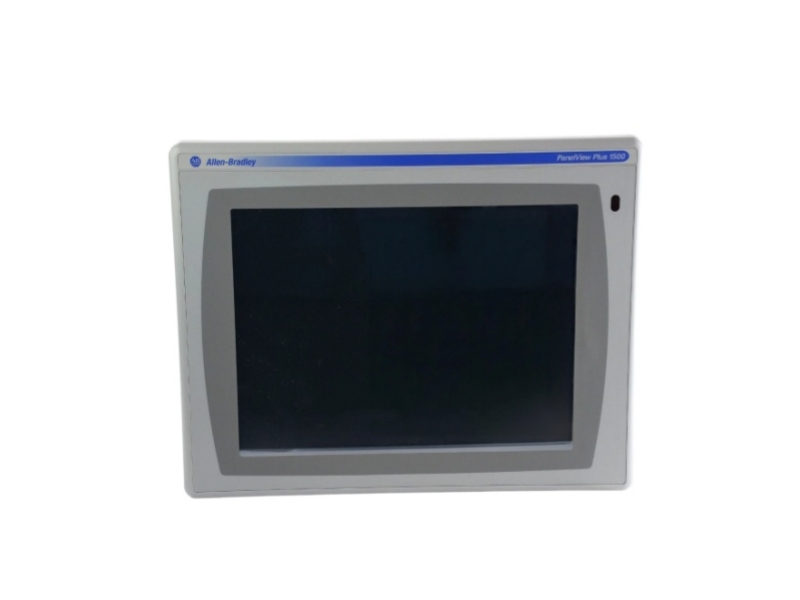

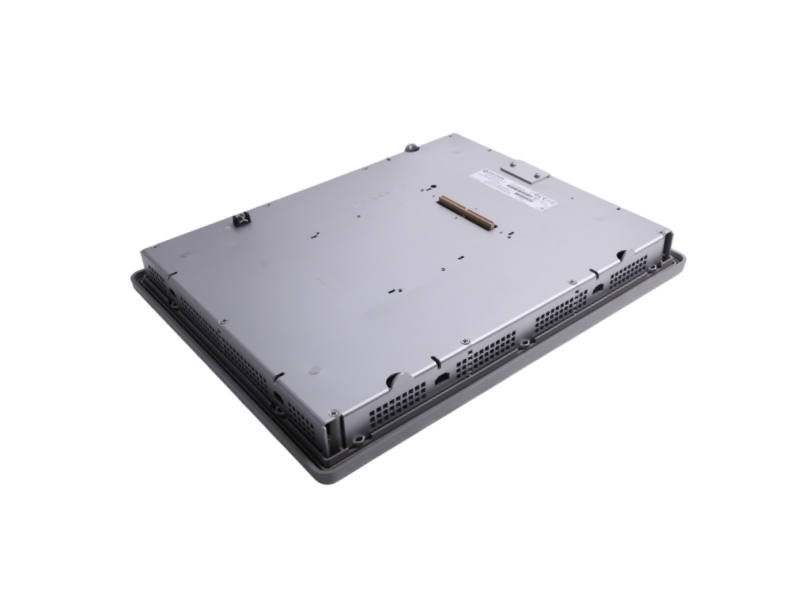

Name: Allen-Bradley 2711P-RDT15C PanelView Plus 15-inch Touch Display Module
Availability: InStock

Catalog number2711P-RDT15C

Product descriptionPanelView Plus display touch screen

Display size15 in

Display technologyColor active-matrix TFT LCD

Pixel resolution1024 x 768

Display area304 x 228 mm

Luminance300 cd/m²

Operator inputAnalog resistive touch

Touch actuation rating1 million presses

Touch operating force10 g

BacklightCCFL, 50,000 h minimum

Application flash memory20 MB for Series A to D logic modules

External CompactFlash512 MB maximum

Input voltage85 to 264 VAC

Power consumption70 W maximum; 39 W typical

Heat dissipation240 BTU/h

Operating altitude2000 m

Relative humidity5 to 95%, non-condensing

Front protectionIP65

Enclosure ratingNEMA Type 12, 13 and 4X indoor

Overall dimensions416 x 330 x 65 mm

Panel cutout305 x 391 mm

Approximate weight4.2 kg

Country of originUnited States of America

Standard warranty1 year

Lifecycle statusDiscontinued since September 30, 2021

FUNCTION PATH

How 2711P-RDT15C forms the operator interface

A practical view of the signal, control and integration decisions behind this model.

CORE ROLEDisplay module assembly

The 15-inch touch display provides the visual and operator-input layer for a compatible PanelView Plus logic module.

X20

Present

The active-matrix TFT renders the application at 1024 x 768 pixels.

Capture

The analog resistive surface converts operator touches into terminal input.

Combine

The display module mounts with a compatible logic module to complete the terminal.

APPLICATION 01Large machine visualization

Provide high-resolution process graphics and touch control at the machine.

APPLICATION 02Installed terminal repair

Replace a damaged display while retaining a compatible PanelView Plus logic module.

APPLICATION 03Panel retrofit planning

Evaluate cutout, enclosure rating and revision requirements before an HMI migration.

PURCHASING FAQ

FAQ for 2711P-RDT15C

Clear answers for selecting, replacing and sourcing the right configuration.

Is Allen-Bradley 2711P-RDT15C a complete PanelView Plus terminal?

No. Allen-Bradley 2711P-RDT15C is the 15-inch touch display module and must be paired with a compatible logic module and the required power arrangement.

How can the backlight revision of Allen-Bradley 2711P-RDT15C be identified?

Check the series letter on the rear label. Rockwell identifies Series B or earlier as CCFL and Series C as LED for this 15-inch display family.

Does an LED Allen-Bradley 2711P-RDT15C replacement require new firmware?

Rockwell states that a firmware upgrade is required when an LED display module replaces an existing CCFL display; it is not required for a complete configured terminal.

Which enclosure conditions suit Allen-Bradley 2711P-RDT15C?

Allen-Bradley 2711P-RDT15C provides IP65 and NEMA Type 12, 13 and 4X indoor front ratings when correctly mounted in a suitable enclosure.

What is the supply status of Allen-Bradley 2711P-RDT15C?

Rockwell Automation lists Allen-Bradley 2711P-RDT15C as discontinued from September 30, 2021 and assigns an engineering replacement category.

What should be supplied for an Allen-Bradley 2711P-RDT15C replacement quotation?

Provide quantity, destination, terminal and logic-module catalog numbers, series letters, firmware revision, power type and photos of both nameplates.
