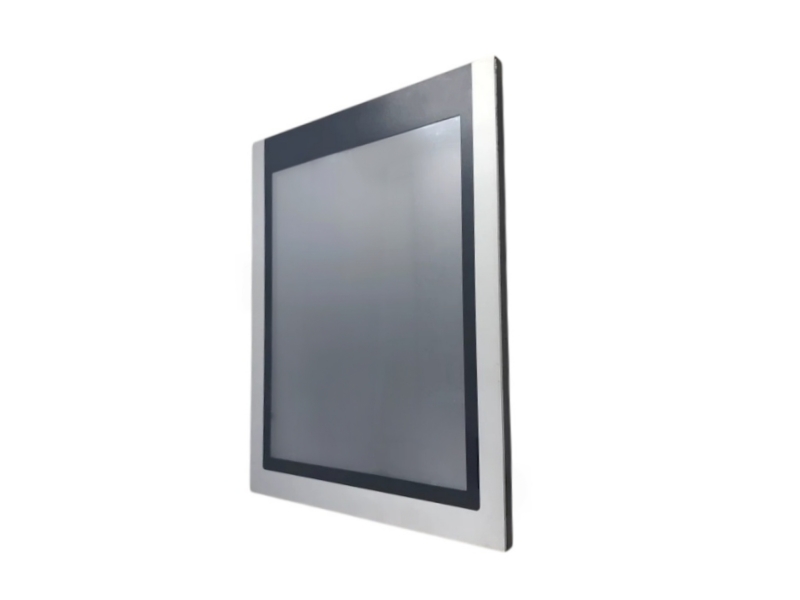

B&R 5AP923.1215-00 12.1-Inch Automation Panel view 3

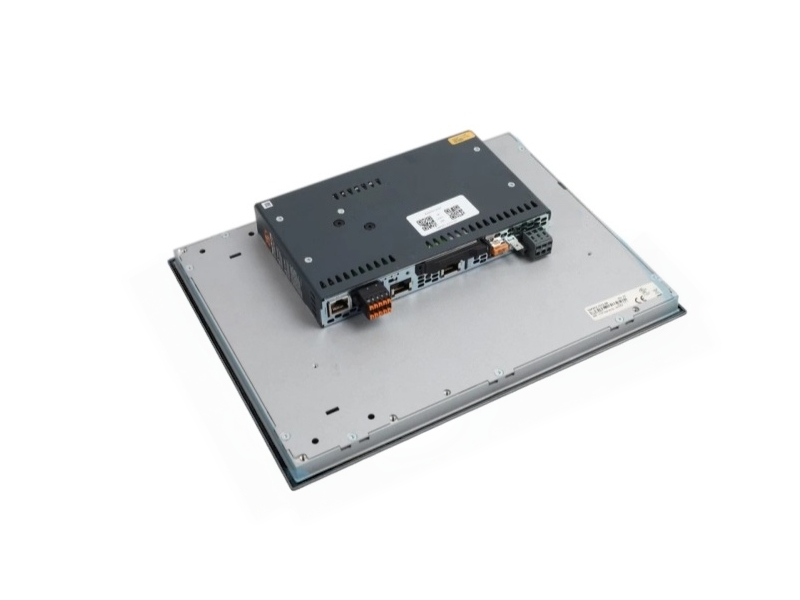

B&R 5AP923.1215-00 12.1-Inch Automation Panel view 2
B&R 5AP923.1215-00 12.1-Inch Automation Panel product image

B&R 5AP923.1215-00 12.1-Inch Automation Panel

B&R AP9x3 / SINGLE-TOUCH HMI5AP923.1215-00
12.1-INCH XGA PANEL

B&R 5AP923.1215-00 is a cabinet-mounted 12.1-inch XGA panel with resistive single-touch input for machine visualization and operator control with compatible Automation and Panel PC systems.

12.1 inDISPLAY
1024×768XGA
IP65FRONT
● Integrity Supply● One Year Warranty● Fast Delivery
PRODUCT ENQUIRYMatch the panel, link module and cutout.
Inquire Now →WhatsApp +86 18106909650
LEAD TIME2-3 DAYS
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R Industrial Automation
Item number 5AP923.1215-00
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
OFFICIAL MODULE DATA

Display, touch & enclosure specifications

Official panel optics, touch technology, installation ratings and mechanical data for the exact material number.

Material number5AP923.1215-00
Half-brightness time50,000 h
Panel overlayPolyester
Product familyAutomation Panel 9x3
Touch technologyAnalog resistive single-touch
FrameCoated aluminum
Display typeTFT color
Touch controllerB&R serial, 12-bit
Light background colorRAL 9006
Display diagonal12.1 in
Touch transmittance81% ±3%
Display border colorRAL 7024
ResolutionXGA, 1024 × 768 pixels
Horizontal viewing angle80° right / 80° left
Gasket3 mm fixed gasket
Aspect ratio4:3
Vertical viewing angle, Rev. F0+70° up / 70° down
Width315 mm
Display orientationLandscape
Vertical viewing angle, Rev. < F080° up / 80° down
Height239 mm
Color depth16.7 million colors
Front protectionIP65
Weight2200 g
Contrast ratio700:1
Rear protectionIP20 with installed link module or system unit
B&R ID code0xE1B0
BacklightLED
UL front ratingType 4X, indoor use only
CertificationsCE, UKCA, cULus and cULus HazLoc
Brightness rangeTypical 25 to 500 cd/m², dimmable
Pollution degree2 per EN 61131-2

01

MEASURE

Check the existing panel opening, mounting depth, gasket contact and accessible cabinet space.

MECHANICS
02

PAIR

Identify the PPC or link-module platform that will be fitted behind the Automation Panel.

HOST SYSTEM
03

MOUNT

Install the panel in landscape orientation and preserve the specified front sealing surface.

ENCLOSURE
04

TEST

Confirm image quality, touch calibration, brightness control and operator access after assembly.

HMI CHECK
PROCUREMENT DECISIONS

5AP923.1215-00 buyer questions

03
01

Which systems can host B&R 5AP923.1215-00?

B&R lists AP9x3, PPC900, PPC2100, PPC2200 and PPC3x00 platforms, as well as compatible link modules; verify the exact rear module before ordering.

02

What operator-input technology is built into B&R 5AP923.1215-00?

The panel uses an analog resistive single-touch screen with a B&R serial controller, making touch calibration and host compatibility part of commissioning.

03

How do the front and rear protection conditions differ for B&R 5AP923.1215-00?

The front is designed for the sealed cabinet face, while the rear protection applies only when the required link module or system unit is installed.

04

Why should the hardware revision be recorded for B&R 5AP923.1215-00?

B&R publishes different vertical viewing-angle values before and from revision F0, so the label revision can matter in viewing-position evaluations.

05

What should be compared before replacing an installed B&R 5AP923.1215-00?

Confirm the cabinet opening, panel dimensions, rear host module, connector arrangement, touch interface, display orientation and machine software compatibility.

06

What information helps obtain the correct manual and offer for B&R 5AP923.1215-00?

Send front and rear label photos, revision, host PPC or link module, quantity, condition, destination and the required delivery date, and request the matching AP9x3 documentation.
