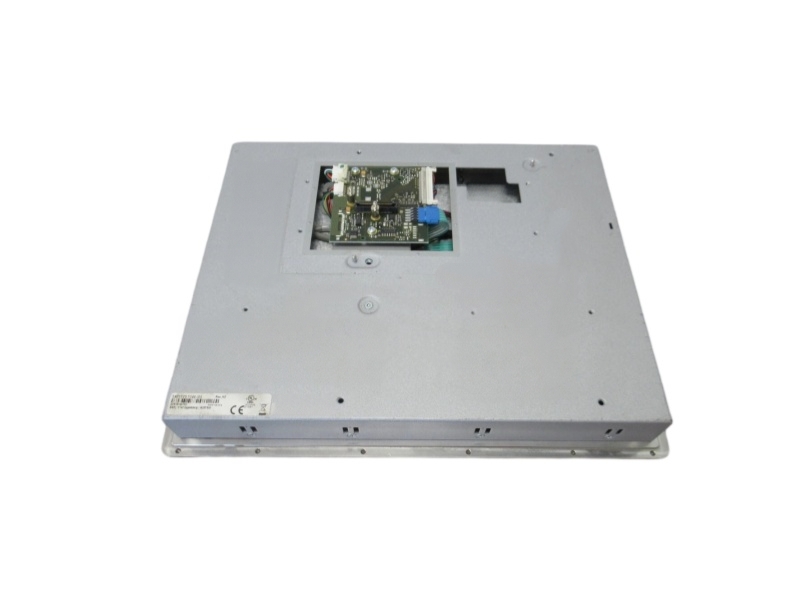

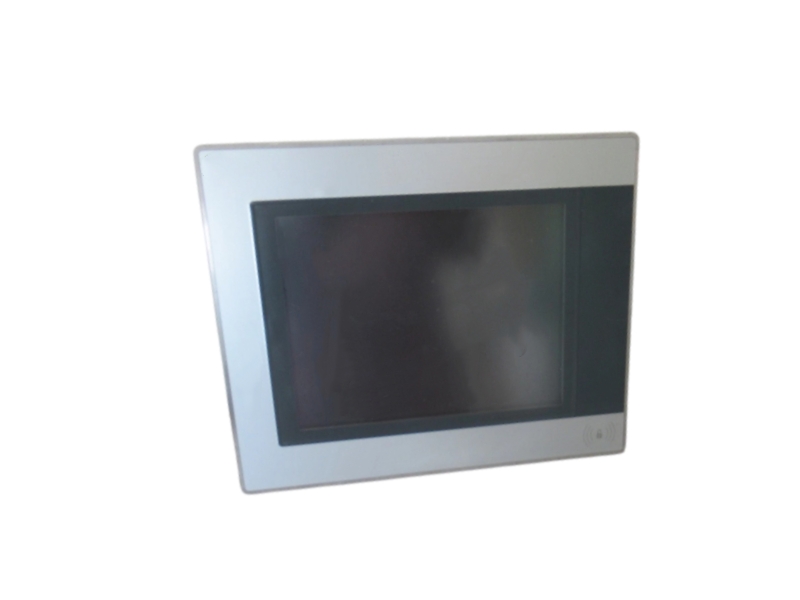

Name: B&R 5AP1125.1044-I00 10.4-Inch Hygienic Automation Panel
Availability: InStock

OFFICIAL DISPLAY DATA

Hygienic panel display and interface specifications

Display, touch, housing, protection and RFID data for panel selection.

Material number5AP1125.1044-I00

Product familyAutomation Panel 1000

Display size10.4 inches

Display technologyColor TFT

Resolution800 x 600 pixels

Aspect ratio4:3

Display colors16.2 million

Contrast800:1

Viewing angle85 degrees in each direction

BacklightLED, 22.5 to 450 cd/m2

Backlight half-brightness50,000 hours

Touch technologyAnalog resistive single-touch

Touch resolution12-bit controller

Touch transmittance81% +/-3%

Front materialStainless steel 1.4301

Front protectionIP69K

Rear protectionIP20 with system unit or link module

UL enclosure ratingType 4X indoor, front

RFID frequency13.56 MHz

RFID mediaI-Code SLI and MIFARE Classic

RFID read/write distanceApproximately 1 to 3 cm

B&R ID code0xE891

Panel width321 mm

Panel height261 mm

Product weight4.3 kg

CertificationsCE and cULus

FUNCTION PATH

How the hygienic panel connects operators to the machine

A practical path from protected touch input to controller interaction and user identification.

Display

Present process status and machine prompts on the SVGA color interface.

Touch

Translate single-touch input through the resistive controller.

Identify

Read or write approved RFID media near the integrated antenna.

Transfer

Pass HMI and identification data through the selected B&R architecture.

Protect

Maintain a cleanable stainless-steel front at the machine boundary.

HYGIENIC MACHINE OPERATIONFor packaging or processing equipment that needs a flush, cleanable operator surface.

CONTROLLED USER ACCESSFor applications that associate operator permissions or recipes with compatible RFID media.

PANEL PC INTEGRATIONFor B&R system-unit or link-module projects requiring a sealed local interface.

BUYER DECISION GUIDE

5AP1125.1044-I00 questions answered

Clear guidance for configuration, compatibility, sourcing and documentation.

QUESTION 01

How should B&R 5AP1125.1044-I00 be paired with a computing unit?

Select a supported B&R Panel PC system unit or link module and verify the interface, mounting and cable arrangement for the complete assembly.

QUESTION 02

Which front-sealing conditions apply to B&R 5AP1125.1044-I00?

The stainless-steel front is rated IP69K and UL Type 4X indoor; the rear only reaches its documented protection after correct integration with the required system hardware.

QUESTION 03

Where does the RFID function of B&R 5AP1125.1044-I00 add value?

It supports short-range operator identification, access control and recipe selection with approved I-Code SLI or MIFARE Classic media.

QUESTION 04

Does B&R 5AP1125.1044-I00 have a designated successor?

B&R maintains product documentation for this configuration and does not identify a direct successor on the product page; verify current lifecycle and availability when requesting a quote.

QUESTION 05

What must be checked before replacing an installed B&R 5AP1125.1044-I00?

Compare the full material number, system unit, link module, panel cutout, cable routing, RFID use and machine image before approving the exchange.

QUESTION 06

Which records help prepare a B&R 5AP1125.1044-I00 manual and price request?

Send front and rear nameplate photos, the connected system-unit number, software image details, quantity, destination and required delivery date.
