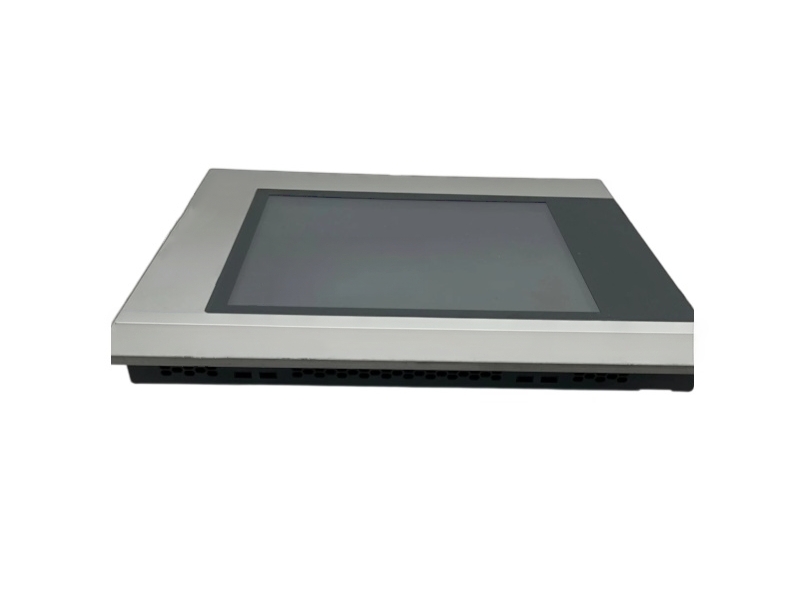

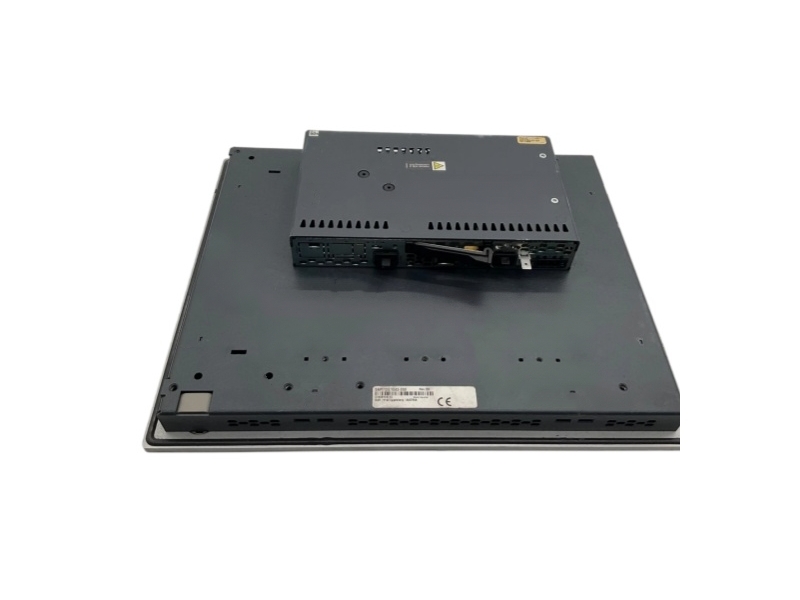

Name: B&R 5AP1120.1043-000 10.4-Inch Automation Panel
Availability: InStock

OFFICIAL PANEL DATA

Display, touch, protection and mechanical specifications

OFFICIAL DATA COVERAGEExact screen, interface, enclosure and installation data from B&R.

Material number5AP1120.1043-000

Product familyAutomation Panel 1000

Display diagonal10.4 inches

Display typeTFT color

ResolutionVGA, 640 x 480 pixels

Aspect ratio4:3

Display colors16.7 million

Contrast900:1

Viewing angle horizontal80 deg left / 80 deg right

Viewing angle vertical80 deg up / 80 deg down

BacklightLED, dimmable

Brightness22.5 to 450 cd/m2 typical

Half-brightness time70,000 h

Touch technologyAnalog resistive single-touch

Touch controllerB&R serial, 12-bit

Touch transmission81% +/-3%

Front USB1 x USB 2.0 Type A

USB currentMaximum 500 mA

Front protectionIP65

Rear protectionIP20 with link module or system unit installed

UL front ratingType 4X indoor use only

MountingLandscape cabinet mounting

Width323 mm

Height260 mm

Weight2800 g

B&R ID code0xE7AD

USB transfer rate1.5, 12 or 480 Mbit/s

Pollution degreeDegree 2 per EN 61131-2

CE certificationYes, CE conformity

UKCA certificationYes, UKCA conformity

UL certificationcULus E115267

Hazardous-location certificationcULus HazLoc E180196, Class I Division 2 Groups ABCD T4

Front decorative filmPolyester

Light background colorRAL 9006

Dark display-border colorRAL 7024

Carrier frameNatural anodized aluminum

Panel gasket3 mm fixed gasket

Touchscreen driver availabilityProvided for approved operating systems

FUNCTION PATH

How 5AP1120.1043-000 supports machine interaction

A user-interface path from touch and USB input through the connected PC platform to the VGA display.

Touch

Capture operator input through the 12-bit analog resistive touch controller.

USER INPUT

Link

Pass panel data to the connected PPC system or link module.

SYSTEM CONNECTION

Render

Display the machine interface on the 640 x 480 TFT with controlled LED brightness.

VISUAL OUTPUT

Service

Provide protected front access through the USB 2.0 Type A connection.

LOCAL ACCESS

APPLICATION 01

Cabinet machine HMI

For landscape operator stations that need a compact 10.4-inch VGA display.

APPLICATION 02

Glove-friendly operation

For environments where resistive touch is preferred over capacitive touch.

APPLICATION 03

B&R panel retrofits

For supported PPC and link-module systems using the documented panel format.

BUYER GUIDANCE

5AP1120.1043-000 questions answered

Selection, integration, lifecycle and quotation guidance written for practical purchasing decisions.

Which B&R systems can use B&R 5AP1120.1043-000?

B&R lists AP1000, PPC900, PPC2100, PPC2200 and PPC3x00 platforms, as well as compatible link modules, for this panel.

What operator experience does B&R 5AP1120.1043-000 provide?

The panel combines a 10.4-inch 640 x 480 TFT with analog resistive single-touch, 16.7 million colors and a dimmable LED backlight.

What is the purpose of the front connector on B&R 5AP1120.1043-000?

It is a USB 2.0 Type A service port supporting low-, full- and high-speed operation with up to 500 mA current capacity.

Which enclosure ratings apply to B&R 5AP1120.1043-000?

The installed front is IP65 and UL Type 4X for indoor use; the rear is IP20 only when the required link module or system unit is fitted.

Can B&R 5AP1120.1043-000 replace B&R 5PP520.1043-00?

B&R states that the panel is installation-compatible with 5PP520.1043-00, but the link electronics, cable, firmware and application still require confirmation.

Which integration details should accompany a B&R 5AP1120.1043-000 RFQ?

Send the panel and connected system-unit labels, cutout dimensions, cable and link-module type, firmware, USB requirement, quantity, condition and destination.
