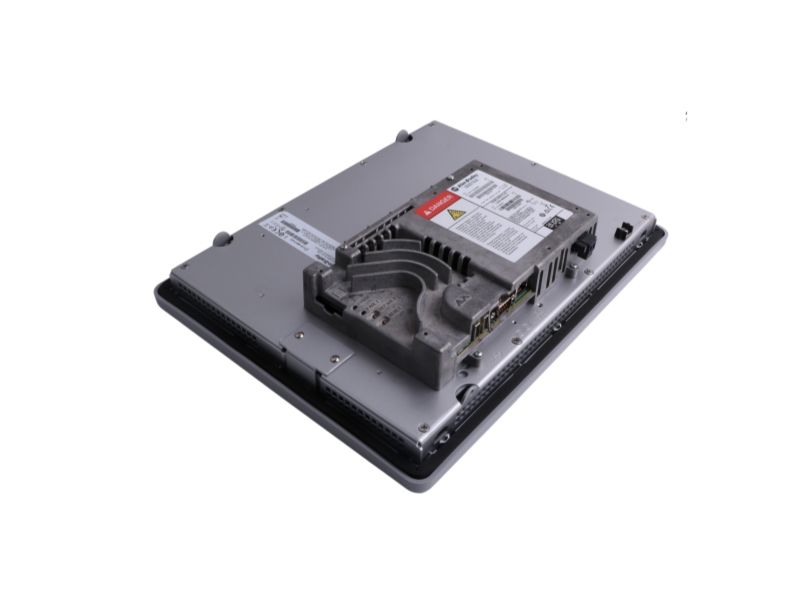

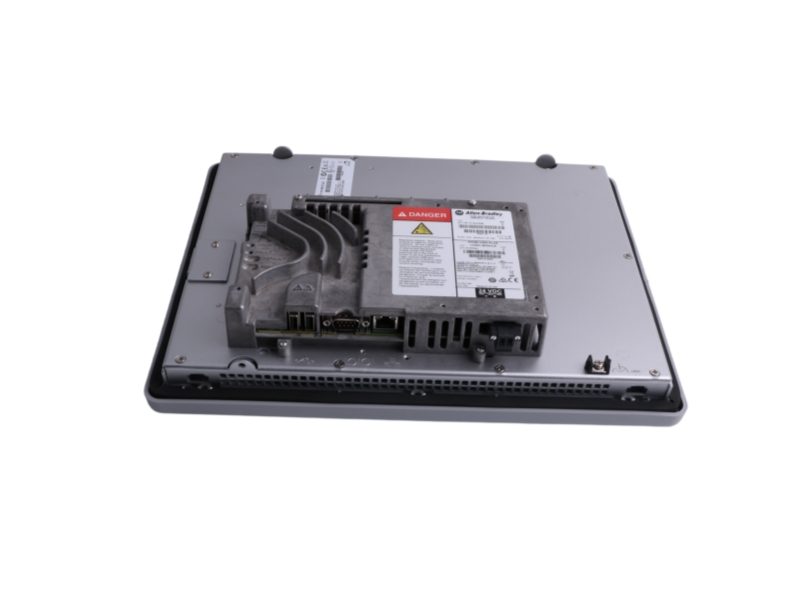

Name: Allen-Bradley 2711P-T12C4D8 PanelView Plus 6 1250 Touch Terminal
Availability: InStock

OFFICIAL TERMINAL DATA

PanelView display, memory and connection profile

Screen, touch, communication, power, memory and enclosure information.

Catalog number2711P-T12C4D8

Terminal familyPanelView Plus 6 1250

Operator inputTouch screen

Display size12.1 inches

Display typeColor active-matrix TFT

Display resolution800 x 600 pixels

Display area246 x 184 mm

Touch technology8-wire analog resistive

Operating systemWindows CE 6.0

Runtime softwareFactoryTalk View ME 6.0 or later

Installed memory512 MB RAM / 512 MB nonvolatile

Available user memoryApproximately 79 MB

Removable storageSD and USB media

Ethernet10/100 Auto-MDI/MDI-X

Serial interfaceRS-232

USB host ports2

Nominal input24 VDC

Maximum power70 W

Typical power39 W

BacklightReplaceable CCFL

Backlight life50,000 hours at 25 degrees C

Front protectionIP65 and NEMA 4X

Operating altitude2000 m

Relative humidity5 to 95%, non-condensing

Overall dimensions282 x 363 x 55 mm

Panel cutout257 x 338 mm

Approximate weight3.2 kg

Lifecycle end dateDecember 30, 2021

FUNCTION PATH

How the PanelView terminal runs a machine interface

From the stored HMI project and controller data to operator touch commands and diagnostics.

Load

Start the stored Machine Edition application from terminal memory.

Connect

Exchange controller tags over the configured Ethernet or serial link.

Present

Render status, alarm and navigation objects on the color display.

Operate

Convert resistive touch input into the programmed HMI actions.

Record

Use local storage and removable media for approved project handling.

LEGACY MACHINE HMIFor installed PanelView Plus 6 systems that require an exact spare terminal.

LOCAL ALARM HANDLINGFor operator stations that display process states, prompts and machine alarms.

MIGRATION PREPARATIONFor sites converting a saved Machine Edition project to a current terminal platform.

BUYER DECISION GUIDE

2711P-T12C4D8 questions answered

Clear guidance for configuration, compatibility, sourcing and documentation.

QUESTION 01

Which communications are built into Allen-Bradley 2711P-T12C4D8?

The standard terminal includes 10/100 Ethernet, RS-232 and two USB host ports, plus an interface for supported communication modules.

QUESTION 02

How does the touch technology of Allen-Bradley 2711P-T12C4D8 influence replacement?

The original unit uses an 8-wire analog resistive screen, so the replacement project must be checked for screen layout, calibration behavior and operator workflow.

QUESTION 03

What migration path does Rockwell identify for Allen-Bradley 2711P-T12C4D8?

Rockwell lists 2711P-T12W22D9P as the engineering replacement and provides a migration guide for converting the application and installation.

QUESTION 04

Why may Allen-Bradley 2711P-T12C4D8 need an adapter plate during modernization?

The replacement terminal does not necessarily match the original panel cutout; Rockwell identifies 2711P-RAAT12 for the documented cutout adaptation.

QUESTION 05

When sourcing Allen-Bradley 2711P-T12C4D8, which condition details matter most?

Request clear display, bezel, rear-label and connector photos and confirm the loaded firmware, touch operation and included terminal hardware.

QUESTION 06

Which documents should be requested with an Allen-Bradley 2711P-T12C4D8 quote?

Ask for the technical data, installation instructions and PanelView Plus 6 to PanelView Plus 7 migration guide together with the commercial offer.
