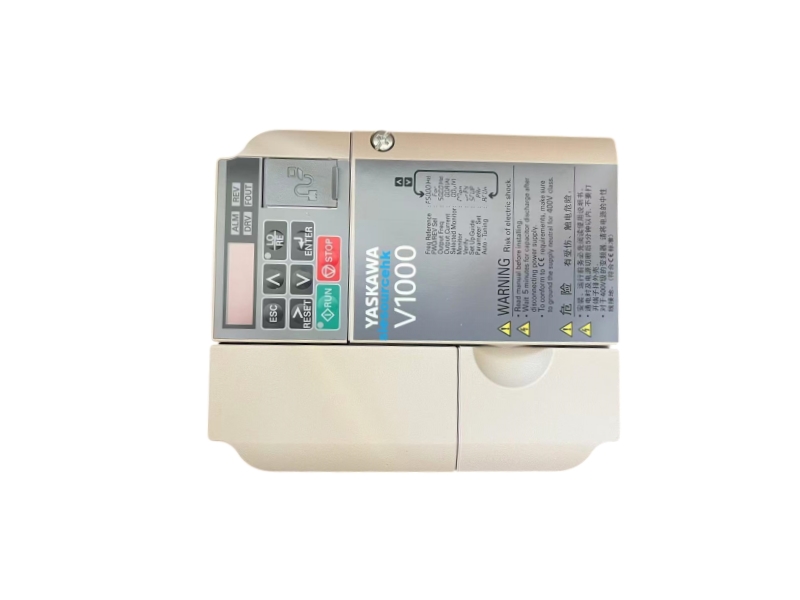

Name: Yaskawa CIMR-VC4A0009BAA V1000 4 kW AC Drive
Availability: InStock

Model numberCIMR-VC4A0009BAA

SeriesV1000

Input power class3-phase 400 V

Rated output current, ND8.8 A

Rated output current, HD7.2 A

Maximum motor power, ND4 kW

Maximum motor power, HD3 kW

ND overload capacity120% for 60 s

HD overload capacity150% for 60 s

Supported motor typesInduction and permanent-magnet motors

Maximum output frequency400 Hz

Analog inputs2

Analog outputs1

Digital inputs6

Digital outputs3

Safety functionSafe Torque Off inputs

Safety integritySIL 2

Performance levelPL d

Braking transistorExternal

Motor thermal protectionStandard

Ambient temperature-10 to 50 °C

Maximum humidity95%, non-condensing

Altitude without derating1000 m

Maximum altitude with derating3000 m

EnclosureIP20 / UL Open Type

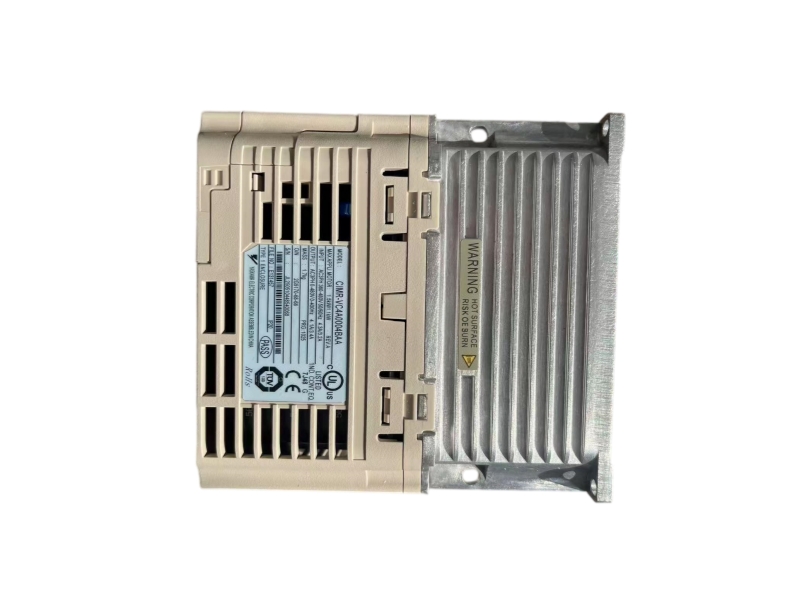

Cooling methodColdplate or air cooling

Dimensions108 x 128 x 154 mm

Weight1.7 kg

ConformitycUL, CE, RoHS, UL and UKCA

Product statusLegacy drive

FUNCTION PATH

How CIMR-VC4A0009BAA controls the motor

A practical view of the signal, control and integration decisions behind this model.

CORE ROLECompact variable-speed stage

The drive converts the 400 V-class supply into controlled motor voltage and frequency for the selected duty profile.

X20

Command

Digital, analog or network references define run state and speed demand.

Regulate

The V1000 control algorithm drives the selected induction or permanent-magnet motor.

Protect

Overload, motor thermal protection and safe-disable inputs supervise the machine axis.

APPLICATION 01Conveyors and feeders

Regulate acceleration and running speed in compact material-handling machines.

APPLICATION 02Pumps and fans

Match motor output to process demand using normal-duty operation.

APPLICATION 03Machine retrofit

Replace an installed V1000 only after matching options, terminals and parameter backup.

PURCHASING FAQ

FAQ for CIMR-VC4A0009BAA

Clear answers for selecting, replacing and sourcing the right configuration.

How do ND and HD ratings differ on Yaskawa CIMR-VC4A0009BAA?

Yaskawa CIMR-VC4A0009BAA is rated 8.8 A and 4 kW for normal duty, or 7.2 A and 3 kW for heavy duty with higher short-term overload capacity.

Which motor technologies can Yaskawa CIMR-VC4A0009BAA operate?

Yaskawa CIMR-VC4A0009BAA supports induction motors and permanent-magnet motors using the control modes documented for the V1000 series.

Does Yaskawa CIMR-VC4A0009BAA include a braking transistor?

The official configuration lists an external braking transistor, so stopping energy and any braking hardware must be engineered for the actual machine.

What functional-safety capability is integrated in Yaskawa CIMR-VC4A0009BAA?

The V1000 provides safe-disable inputs for Safe Torque Off, with SIL 2 and PL d ratings when incorporated according to the safety instructions.

Which settings must be transferred when replacing Yaskawa CIMR-VC4A0009BAA?

Record the complete parameter set, duty selection, motor data, command source, I/O assignments, acceleration times and communication option before exchange.

What information will speed up a Yaskawa CIMR-VC4A0009BAA quotation?

Send quantity, destination, full nameplate, motor nameplate, ND or HD duty, installed network option, enclosure requirement and required delivery date.
