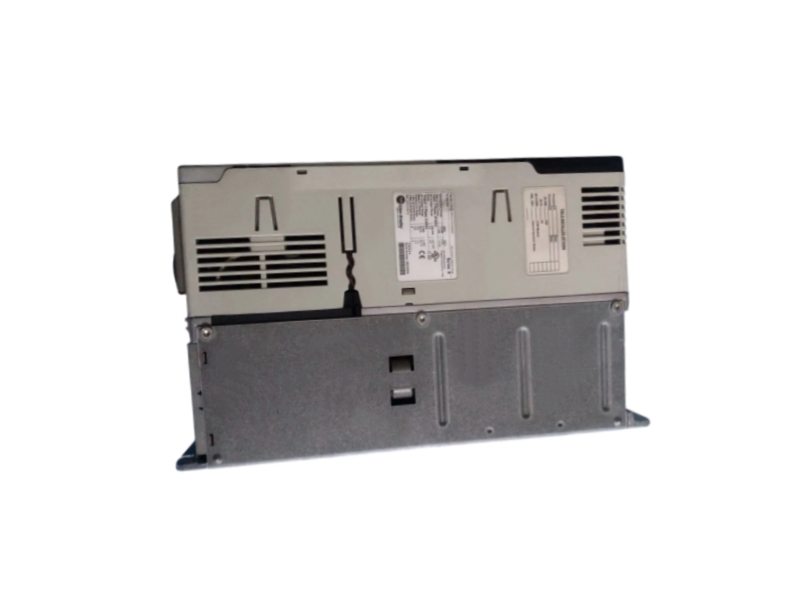

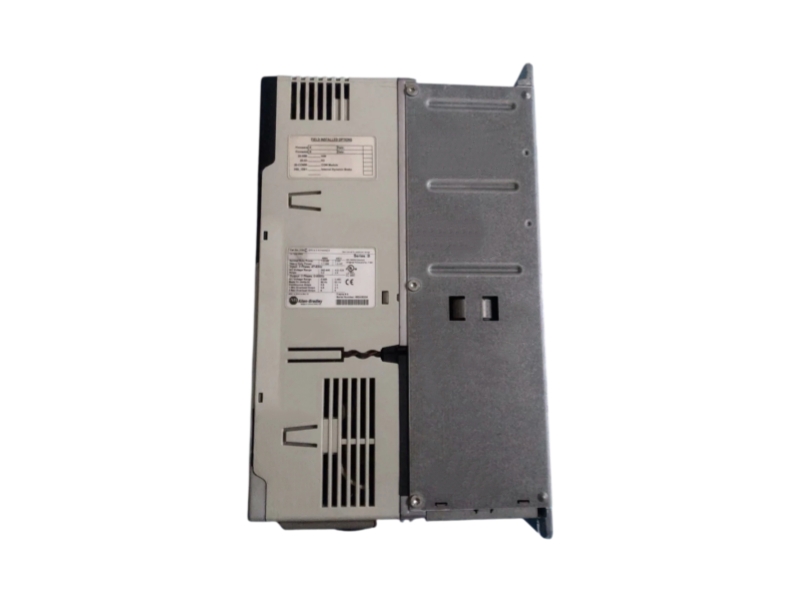

Name: Allen-Bradley 20BC3P5A0AYNANC0 PowerFlex 700 AC Drive
Availability: InStock

OFFICIAL DRIVE DATA

PowerFlex 700 configuration and electrical limits

OFFICIAL DATA COVERAGECatalog-string details, overload data, control hardware and protection thresholds.

Catalog number20BC3P5A0AYNANC0

Product familyPowerFlex 700 AC Drive 20B

Input supply400 VAC, three-phase

Continuous output current3.5 A

Normal-duty motor rating1.5 kW

Heavy-duty motor rating1.1 kW

Output overload current4.5 A for 1 min; 6 A for 3 s

Frame sizeFrame 0

EnclosureIP20 / Type 1, conformal coating

Control optionVector control with 24 VDC I/O

Brake IGBTInstalled

Drive-mounted brake resistorNot included

EMC filterSecond-environment filter

Communication moduleNo internal communication module

Feedback optionNo feedback

Operator interfaceNo HIM; blank plate

Nominal DC bus voltage540 VDC at 380/400 VAC

DC bus overvoltage trip810 VDC

DC bus undervoltage shutoff305 VDC

AC input overvoltage trip570 VAC

AC input undervoltage trip233 VAC

Carrier frequencies2, 4, 8 and 10 kHz

Maximum circuit-breaker rating15 A at 400 VAC, three-phase

Country of originMexico

Lifecycle statusDiscontinued

Discontinued dateNovember 30, 2023

UPC820919076718

Standard warranty duration1 year

Custom firmwareNo custom firmware

Acceleration / decelerationTwo programmable times, 0 to 3600 s in 0.1 s increments

Control methodSine-coded PWM with programmable carrier frequency

Current-limit range20 to 160% of rated output current

Efficiency97.5% at rated current and nominal line voltage

Input power rating2.2 kVA at 400 VAC, three-phase

Internal power loss45 W

External power loss31 W

Total power loss76 W

Maximum output frequency420 Hz

Analog inputs2 input channels

Analog outputs2 output channels

Digital inputs6 input channels

Digital outputs3 output channels

Operating temperature0 to 50 deg C

Relative humidity5 to 95%, non-condensing

Sound level58 dB for Frame 0

Approximate height336 mm

Approximate width110 mm

Approximate depth200 mm

Approximate drive and packaging weight8.16 kg

Maximum altitude without derating1000 m

FUNCTION PATH

How the configured PowerFlex 700 controls a motor

A functional view of command, vector control, power conversion and supervised stopping.

Command

Accept the configured speed or torque reference through the selected 24 VDC control interface.

REFERENCE

Regulate

Apply vector-control algorithms and programmable carrier frequency to the connected motor.

CONTROL

Convert

Switch the 400 VAC supply into controlled output voltage and frequency for the load.

POWER STAGE

Brake

Use the installed brake IGBT with a correctly sized external resistor when regenerative stopping requires it.

DECELERATION

APPLICATION 01

Coated control cabinets

For industrial panels where conformal coating is specified for the drive electronics.

APPLICATION 02

Vector-controlled machinery

For speed or torque applications that use the 24 VDC vector-control cassette.

APPLICATION 03

Legacy PowerFlex 700 service

For exact configuration replacement while an engineered migration is assessed.

BUYER GUIDANCE

20BC3P5A0AYNANC0 questions answered

Selection, integration, lifecycle and quotation guidance written for practical purchasing decisions.

Which catalog options are built into Allen-Bradley 20BC3P5A0AYNANC0?

The exact configuration includes 400 VAC input, 3.5 A output, coated IP20 / Type 1 construction, vector control with 24 VDC I/O, a brake IGBT and a second-environment EMC filter.

What duty ratings apply to Allen-Bradley 20BC3P5A0AYNANC0?

Rockwell specifies 1.5 kW for normal duty and 1.1 kW for heavy duty, with 4.5 A available for one minute and 6 A for three seconds.

Does Allen-Bradley 20BC3P5A0AYNANC0 include a communication adapter or encoder feedback?

No. The catalog configuration has no internal communication module and no feedback option, so network and closed-loop requirements must be added or redesigned separately.

How should regenerative braking be arranged around Allen-Bradley 20BC3P5A0AYNANC0?

The brake IGBT is installed, but the drive-mounted brake resistor is not included. Select and wire an external resistor only after checking the official braking and duty calculations.

What does the discontinued status of Allen-Bradley 20BC3P5A0AYNANC0 mean for replacement?

Rockwell lists the 20B drive family as discontinued and identifies the replacement category as engineering replacement. A PowerFlex 755 migration is not a drop-in substitution and needs an application review.

Which evidence should accompany an Allen-Bradley 20BC3P5A0AYNANC0 quotation request?

Provide clear nameplate photos, series and firmware details, motor data, parameter backup, installed options, quantity, destination and required delivery date.
