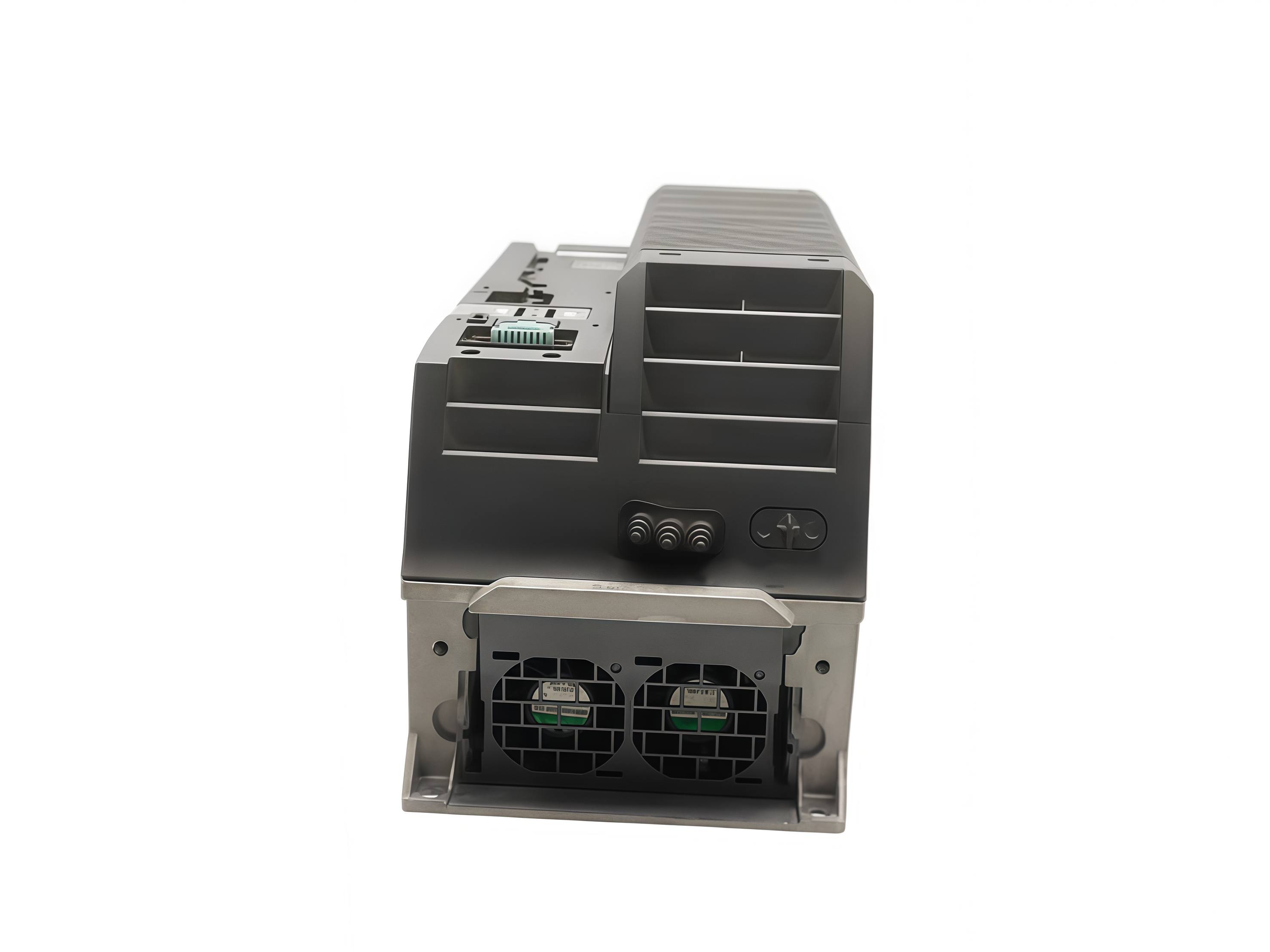

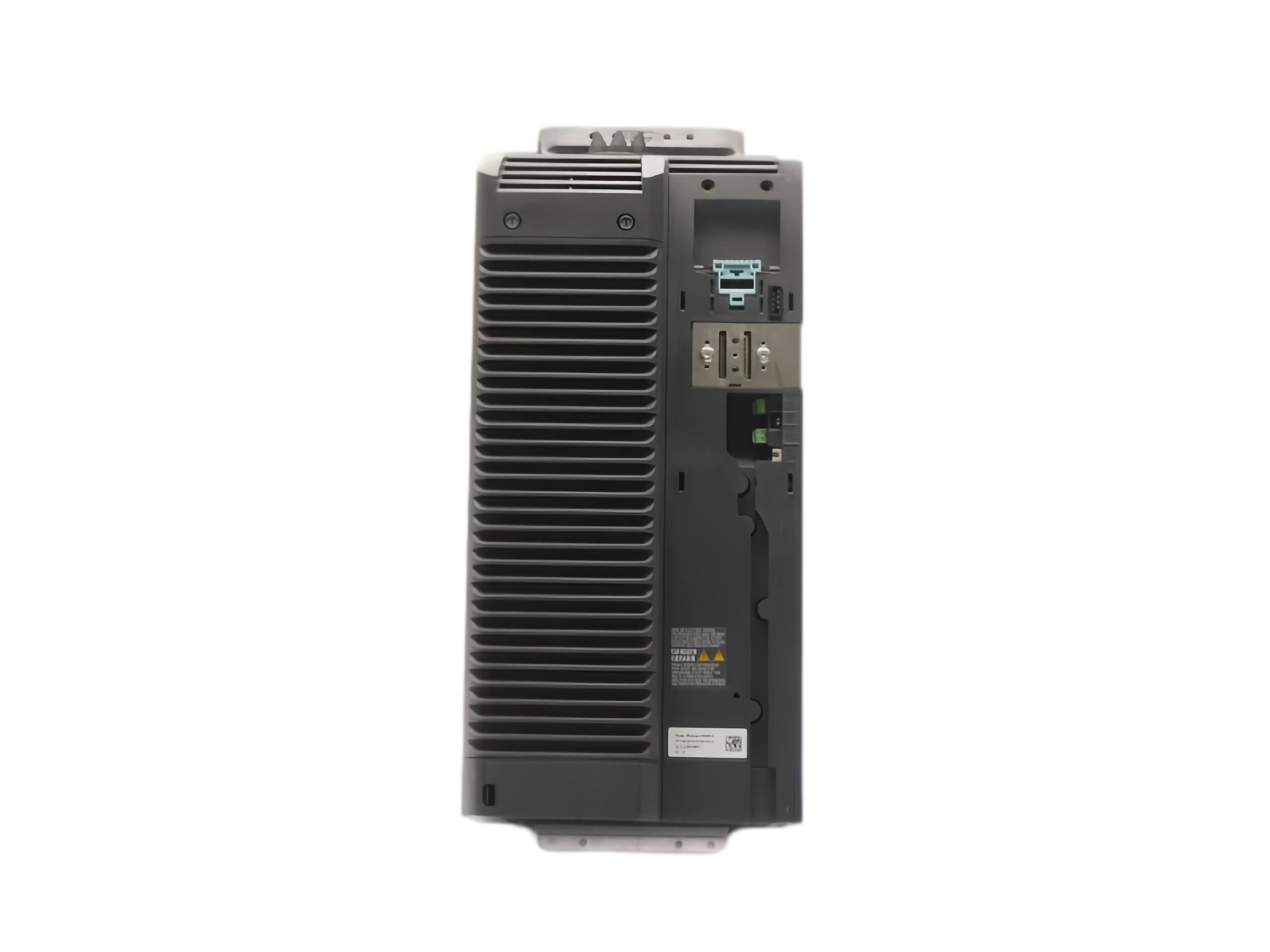

Name: Siemens 6SL3210-1PE24-5UL0 SINAMICS G120 PM240-2 Power Module
Availability: InStock

OFFICIAL PM240-2 DATA

SINAMICS power, overload and installation data

OFFICIAL DATA COVERAGEExact order-number ratings, dimensions, lifecycle and logistics from Siemens.

Article number6SL3210-1PE24-5UL0

Product familySINAMICS G120 PM240-2

Module formatAir-cooled blocksize power module

Frame sizeFSD

Line voltage380 to 480 VAC, three-phase

Voltage tolerance+10% / -20%

Line frequency47 to 63 Hz

Integrated line filterNo

Integrated braking chopperYes

Rated output current45 A

High-overload power18.5 kW

Low-overload power22 kW

High-overload peak200% for 3 s

High-overload short duty150% for 57 s

Low-overload peak150% for 3 s

Low-overload short duty110% for 57 s

HO ambient range-20 to +50 deg C

LO ambient range-20 to +40 deg C

Protection degreeIP20

Control UnitNot supplied with the power module

Operator panelNot part of the module delivery

Minimum CU firmwareV4.7 HF8

Dimensions H x W x D472 x 200 x 237 mm

Net weight16.6 kg

Packaging dimensions495 x 356 x 300 mm

Commodity code8504409999

Country of originChina

LifecycleActive product

Base-load current38 A

S6 duty current at 40%54 A

Maximum current76 A

Rated pulse frequency4 kHz

Maximum pulse frequency16 kHz

Power loss without line filter0.70 kW

Cooling-air requirement55 l/s

24 VDC Control Unit supply1.0 A

Efficiency classIE2

EAN4042948668078

UPC804766090837

Packaging quantity1 piece

FUNCTION PATH

How the PM240-2 delivers a controlled motor supply

From three-phase line input through the Control Unit command to motor output and regenerative braking.

Accept

Receive the 380-480 VAC line supply through the correctly protected power circuit.

LINE INPUT

Interpret

Use the paired Control Unit to process commands, feedback and drive parameters.

CONTROL UNIT

Modulate

Generate variable-frequency motor output within the selected overload profile.

POWER OUTPUT

Dissipate

Route regenerative energy through the integrated chopper and matched external braking component.

BRAKING

APPLICATION 01

High-overload machinery

For loads with demanding acceleration, breakaway torque or cyclic peaks.

APPLICATION 02

Low-overload process drives

For continuous fan, pump or conveyor duties that fit the 22 kW profile.

APPLICATION 03

Modular G120 retrofits

For existing G120 architectures where the Control Unit and accessories are verified separately.

BUYER GUIDANCE

6SL3210-1PE24-5UL0 questions answered

Selection, integration, lifecycle and quotation guidance written for practical purchasing decisions.

Why does Siemens 6SL3210-1PE24-5UL0 have both 18.5 kW and 22 kW ratings?

The 18.5 kW value belongs to the high-overload profile, while 22 kW belongs to the low-overload profile. Each profile has its own overload sequence and ambient-temperature limit.

Which components are missing from Siemens 6SL3210-1PE24-5UL0 as supplied?

The order number covers the PM240-2 power module without a Control Unit or operator panel. Those items and any line-side components must be selected separately.

Can Siemens 6SL3210-1PE24-5UL0 handle regenerative stopping without extra hardware?

The power module includes a braking chopper, but the external braking resistor and its thermal design must be selected for the application's energy and duty cycle.

What Control Unit firmware is required with Siemens 6SL3210-1PE24-5UL0?

Siemens states that the module is approved for compatible Control Units from firmware version V4.7 HF8. The exact Control Unit type and option set still need verification.

Which official logistics data identifies Siemens 6SL3210-1PE24-5UL0?

Siemens lists a 16.6 kg net weight, 495 x 356 x 300 mm packaging dimensions, commodity code 8504409999 and China as the country of origin.

What should a Siemens 6SL3210-1PE24-5UL0 request specify for accurate selection?

State the motor nameplate, high- or low-overload duty, Control Unit, firmware, braking requirement, line components, enclosure conditions, quantity and destination.
