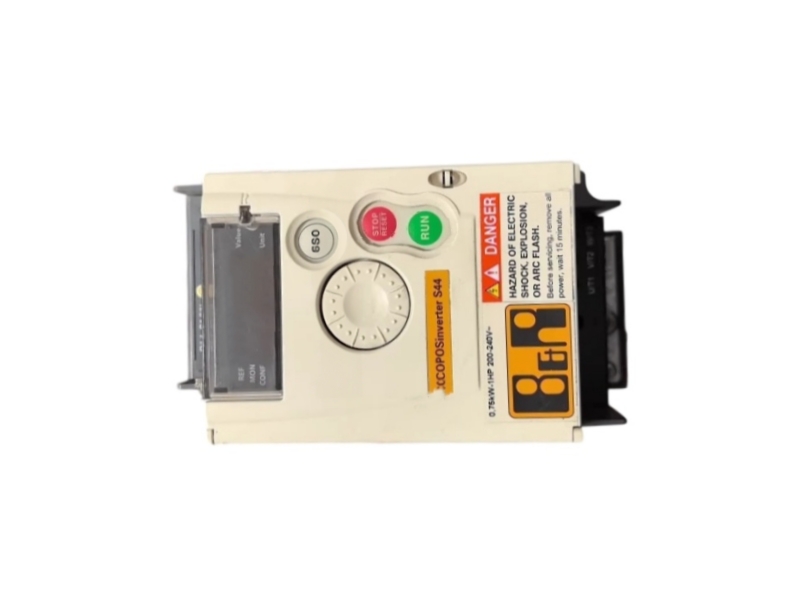

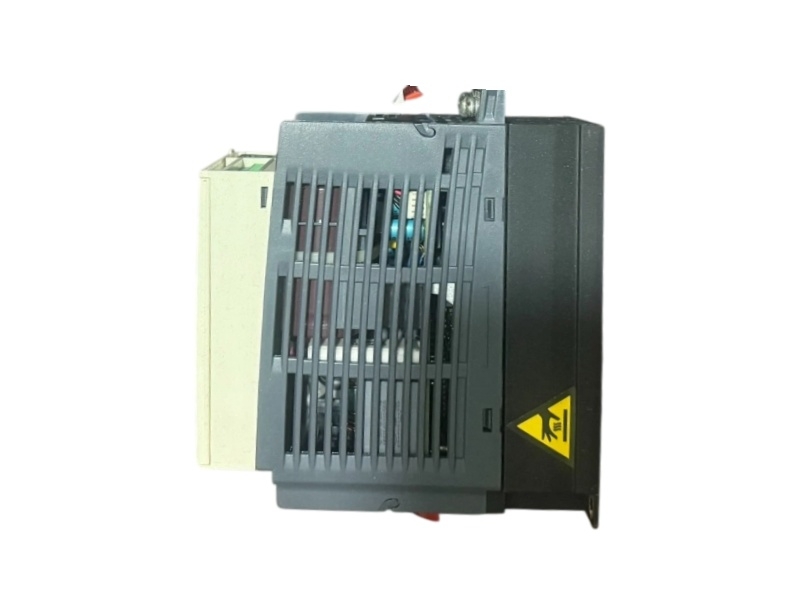

Name: B&R 8I44S200075.000-1 ACOPOSinverter S44 0.75 kW Drive
Availability: InStock

OFFICIAL DRIVE DATA

Supply, output and motor-control specifications

Power-stage, interface, cable and installation limits for drive selection.

Material number8I44S200075.000-1

Drive familyACOPOSinverter S44

Mains supply1 x 200 to 240 VAC

Mains tolerance-15% / +10%

Mains frequency50 to 60 Hz +/-5%

Motor power0.75 kW / 1 hp

Maximum mains current10.2 A at 200 V

Mains current at 240 V8.5 A

Apparent power3.5 kVA

Short-circuit current1000 A

Power loss44 W

Continuous output current4.2 A at 240 V

Transient output current6.3 A for 60 seconds

Output frequency0.5 to 400 Hz

Carrier-frequency range2 to 16 kHz

Nominal carrier frequency4 kHz

Motor-control modesV/f, sensorless flux vector, pump/fan

Shielded motor-cable length50 m

Unshielded motor-cable length100 m

CommunicationRS485

Digital outputs1 solid-state and 1 relay

Analog output0 to 10 V or 0 to 20 mA

Integrated EMC filterYes

Protection ratingIP20

Operating temperature-10 to 40 degrees C without derating

Maximum operating altitude2000 m with derating

Dimensions72 x 130 x 131.2 mm

Weight0.8 kg

Mounting orientationVertical, +/-10 degrees

ConformityCE, cULus and KC

FUNCTION PATH

How the S44 controls an induction motor

From mains conversion and speed reference to regulated motor voltage, frequency and status output.

Supply

Accept the single-phase mains input through the protected installation.

Reference

Read the configured speed command from local control or communication.

Calculate

Apply the selected V/f or sensorless-vector motor model.

Convert

Generate the commanded output frequency and voltage.

Report

Return drive state through RS485, analog or digital outputs.

COMPACT CONVEYORSFor variable-speed transport mechanisms within the documented current duty.

PUMPS AND FANSFor loads using the quadratic control profile of the S44.

MACHINE AUXILIARIESFor small induction motors requiring local I/O and serial communication.

BUYER DECISION GUIDE

8I44S200075.000-1 questions answered

Clear guidance for configuration, compatibility, sourcing and documentation.

QUESTION 01

Which supply arrangement is required by B&R 8I44S200075.000-1?

Use a single-phase 200 to 240 VAC source within the documented tolerance and provide the upstream protection required by the installation.

QUESTION 02

How should motor control be selected on B&R 8I44S200075.000-1?

Choose V/f, sensorless flux-vector or pump/fan behavior according to motor data, load type and the dynamic response required by the machine.

QUESTION 03

What cable planning applies to B&R 8I44S200075.000-1?

Check the official shielded and unshielded motor-cable limits together with EMC routing, grounding and the selected switching frequency.

QUESTION 04

What installation derating can affect B&R 8I44S200075.000-1?

Higher ambient temperature or installation altitude can reduce available drive capacity, so enclosure cooling and duty must be calculated for the site.

QUESTION 05

Has B&R assigned a replacement to B&R 8I44S200075.000-1?

No direct successor is identified on the official product page; confirm current availability and evaluate any alternative from complete motor and control requirements.

QUESTION 06

Which duty information improves a B&R 8I44S200075.000-1 quotation?

Provide motor nameplate data, load type, acceleration and stopping profile, cable length, supply, braking needs, quantity and destination.
