OFFICIAL MODULE DATA

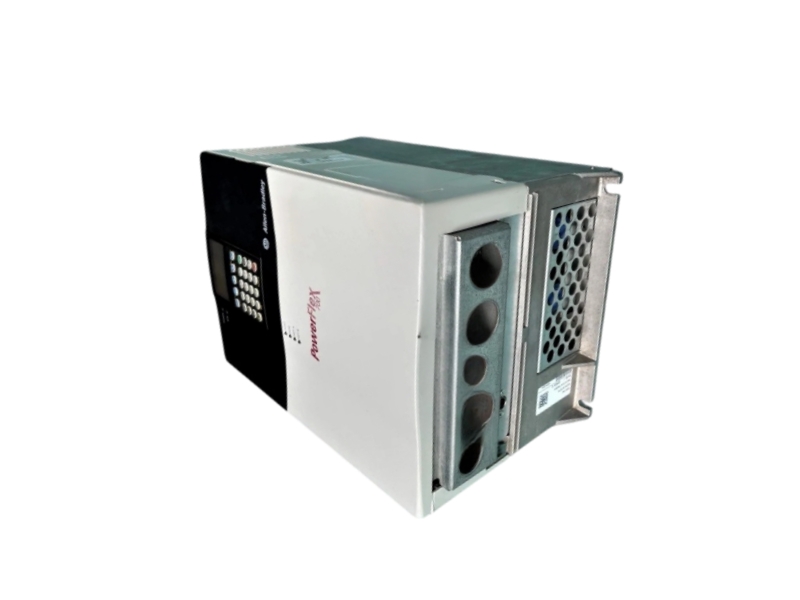

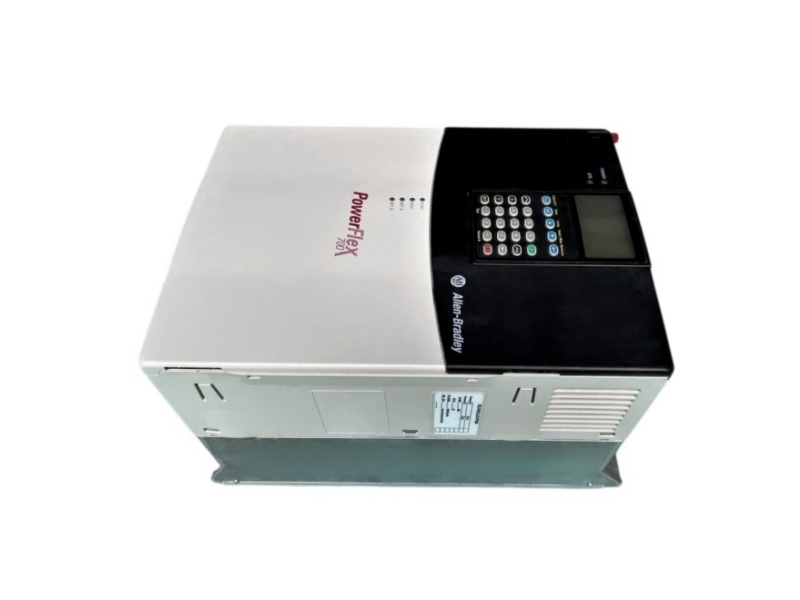

Configured PowerFlex 700 drive data
Official Rockwell configuration, electrical, environmental and lifecycle values for this complete catalog number.
Catalog number20BC030A0AYNANC0
Control configurationVector control, 24 V I/O
NEMA enclosureType 1
Product familyPowerFlex 700
Feedback optionNo feedback
Operating temperature50°C at 540 VDC
Normal-duty output15 kW
Brake transistorBrake IGBT installed
Storage temperature minimum-40°C
Heavy-duty output11 kW
Drive-mounted brake resistorNot installed
Relative humidity5 to 95%, non-condensing
Rated output current30 A
EMC configurationEMC filter and common-mode choke
Altitude without derating1000 m maximum
Drive voltage class400 VAC
Communication moduleNot installed
Shock withstand15 g peak for 11 ms
Input voltage range380 to 480 VAC
Operator interfaceNo HIM; blank plate
Vibration withstand0.152 mm displacement, 1 g peak
Input phases3
Analog inputs2
Lifecycle statusDiscontinued
Output phases3
Analog outputs2
Discontinued dateNovember 30, 2023
Maximum output frequency420 Hz
Digital inputs6
Replacement categoryEngineering Replacement
Nominal mains frequency50 Hz
Digital outputs3
Repair optionsAvailable
Efficiency97.5% at rated current and nominal line voltage
Degree of protectionIP20
Country of originMexico
