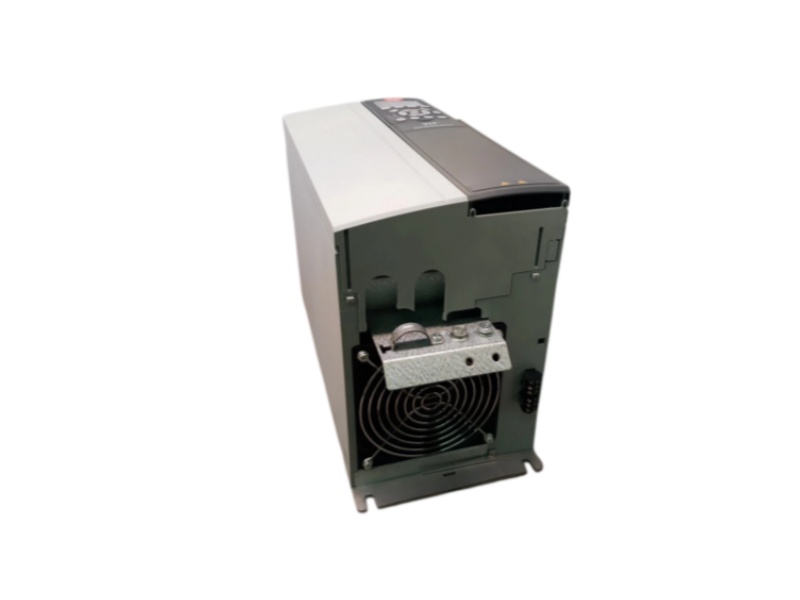

Danfoss FC-302P11KT5E20H1B product image 1

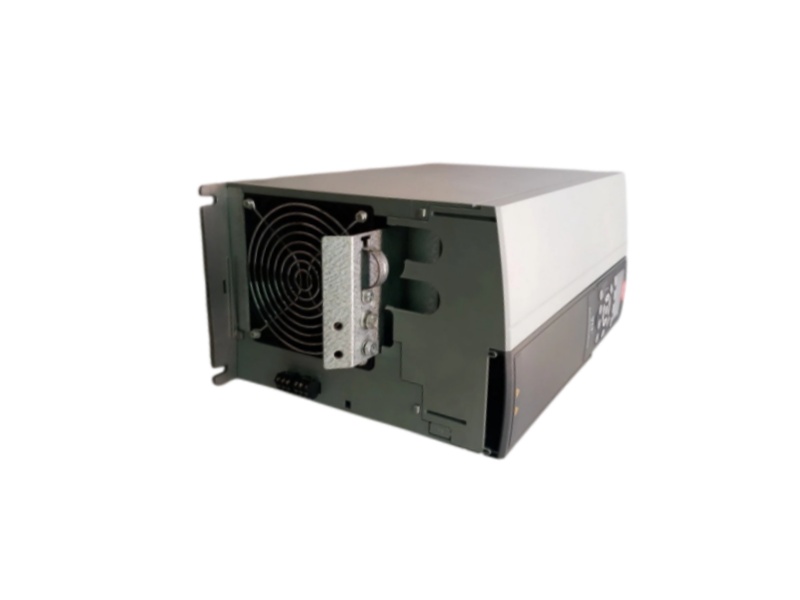

Danfoss FC-302P11KT5E20H1B product image 2
Danfoss FC-302P11KT5E20H1B product image 3

Danfoss FC-302P11KT5E20H1B VLT AutomationDrive FC 302

FC
FLEXIBLE INDUSTRIAL MOTOR CONTROL

FC-302P11KT5E20H1B

Danfoss FC-302P11KT5E20H1B is an 11 kW high-overload VLT AutomationDrive for precise speed and torque control in demanding industrial motor applications.

11 KW HO380–500 VIP20
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Danfoss
Item number FC-302P11KT5E20H1B
Country of Origin Denmark
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
OFFICIAL TECHNICAL DATA

Power and enclosure data

High-overload and normal-overload values for accurate drive sizing.

01
Type codeFC-302P11KT5E20H1B
Mains voltage class380 to 500 VAC
High-overload shaft output11 kW
Normal-overload shaft output15 kW
EnclosureIP20, frame B3
HO current at 380–440 V24 A
NO current at 380–440 V32 A
HO current at 441–500 V21 A
NO current at 441–500 V27 A
HO intermittent current, 380–440 V38.4 A for 60 s
NO intermittent current, 380–440 V35.2 A for 60 s
HO intermittent current, 441–500 V33.6 A for 60 s
NO intermittent current, 441–500 V29.7 A for 60 s
HO continuous power at 400 V16.6 kVA
NO continuous power at 400 V22.2 kVA
Maximum input current, 380–440 V22 A HO / 29 A NO
Maximum input current, 441–500 V19 A HO / 25 A NO
Maximum fuse63 A
IP20 mains/brake conductor10 mm² / AWG 8
Typical power loss291 W HO / 392 W NO
Typical efficiency0.98
Approximate weight12 kg
02
SIGNAL JOURNEY

How FC 302 adapts power to machine demand

Motor identification, regulation and energy functions work through one drive platform.

SIGNAL WORKBENCHIdentify.
Optimize.
Control.
Coordinate.

The AutomationDrive uses motor data and process commands to produce efficient controlled motion.

01

Identify

Automatic Motor Adaptation can characterize a connected compatible motor during commissioning.

02

Optimize

Automatic Energy Optimization adjusts magnetization to reduce unnecessary motor losses.

03

Control

The drive regulates asynchronous or permanent-magnet motors for the configured process task.

04

Coordinate

Integrated motion-control functions can support positioning and synchronization applications.

USE 01

PROCESS MACHINERY

Regulate pumps, fans, mixers and conveyors under variable production demand.

USE 02

POSITIONING TASKS

Use integrated motion features for suitable encoderless positioning applications.

USE 03

GENERAL AUTOMATION

Standardize motor control across equipment that needs configurable communications and options.

BUYER QUESTIONS

FAQ for Danfoss FC-302P11KT5E20H1B

Practical guidance for confident sourcing and system planning.

03
QUESTION 01

How should Danfoss FC-302P11KT5E20H1B be sized for overload duty?

Choose between the documented high-overload and normal-overload ratings according to the motor current, load profile and required short-term torque.

QUESTION 02

Which motor technologies can Danfoss FC-302P11KT5E20H1B operate?

The FC 302 platform supports compatible asynchronous and permanent-magnet motors when the correct control mode and motor data are configured.

QUESTION 03

What cabinet protection is required for Danfoss FC-302P11KT5E20H1B?

Its IP20 enclosure must be installed inside a suitable cabinet with the clearances, cooling and environmental protection defined in Danfoss documentation.

QUESTION 04

Can Danfoss FC-302P11KT5E20H1B perform positioning?

The FC 302 platform includes integrated motion-control capabilities for supported applications, but the exact feedback and option configuration must be checked.

QUESTION 05

Which type-code elements must match a Danfoss FC-302P11KT5E20H1B replacement?

Verify power size, voltage class, enclosure, hardware variant, RFI and brake configuration, control card, option slots, software and parameter backup.

QUESTION 06

What should be supplied for a Danfoss FC-302P11KT5E20H1B price and availability check?

Provide the complete type code, quantity, destination, nameplate photos, motor data, installed options and the requested delivery schedule.
