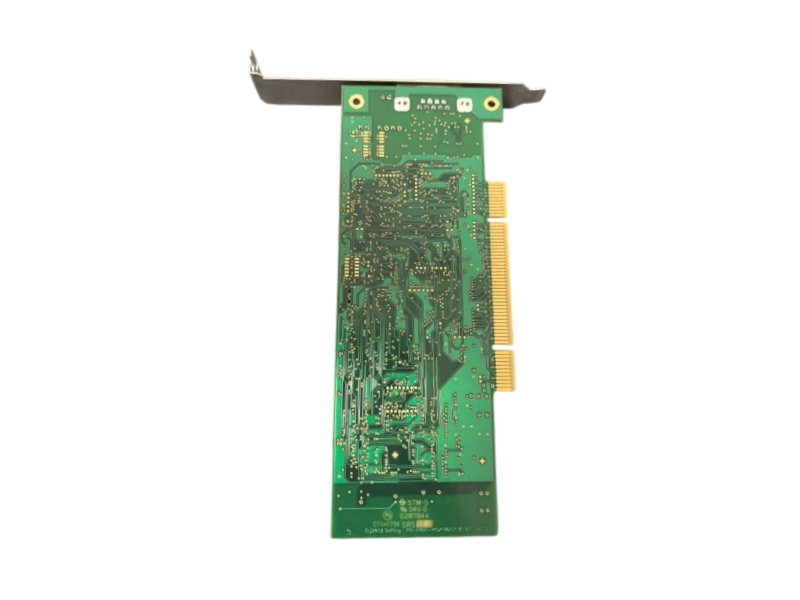

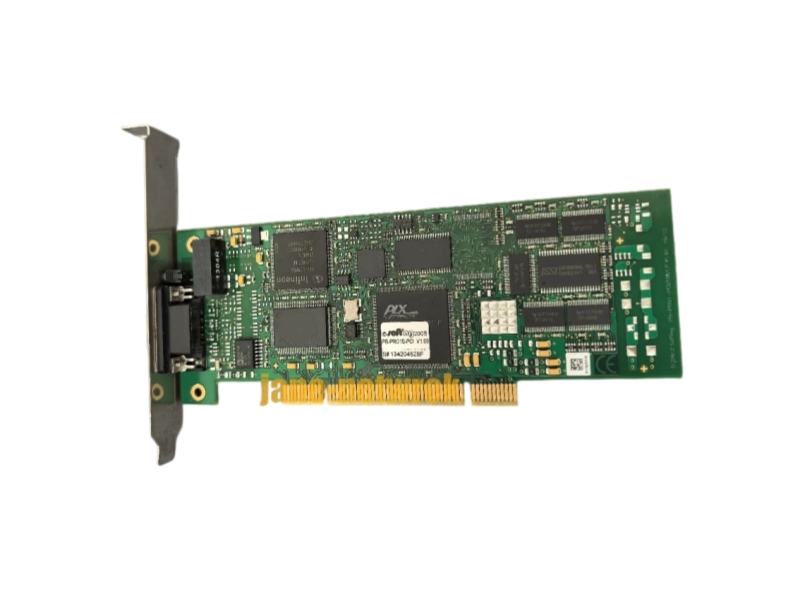

Softing PB-PRO1S-PCI PROFIBUS DP Slave PCI Interface Card

SOFTING PROFIBUS PC INTERFACE

PB-PRO1S-PCI

Softing PB-PRO1S-PCI provides one galvanically isolated PROFIBUS DP slave channel for PCI-based industrial computers and control applications.

DP SLAVE1 CHANNELPCI 2.212 MBIT/S
Brand New OriginalOne Year WarrantyWorldwide Shipping
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Softing
Item number PB-PRO1S-PCI
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
PROFIBUS INTERFACE DATA

Host and fieldbus architecture for PB-PRO1S-PCI

Official model data organized for confident specification and replacement review.

Product designationPB-PRO1S-PCI
Communication rolePROFIBUS DP slave
Number of channels1
Fieldbus interface9-pin D-sub female
Physical layerEIA-485
Galvanic isolationProvided for the fieldbus channel
Supported transfer rates9.6 kbit/s to 12 Mbit/s
Host interfacePCI 2.2
Shared memory128 KB per channel
Controller familySofting PROFIBUS controller
Supply voltage5 V and 3.3 V, ±5%
Typical current at 5 V500 mA
Typical current at 3.3 V200 mA
Operating temperature0 to 70 °C
Storage temperature-20 to 70 °C
Relative humidityBelow 90%, non-condensing
Dimensions168 x 64 mm
Windows supportWindows XP, 7, 8 and 10
Linux supportSupported
ConformityCE, FCC and RoHS
02
FUNCTION PATH

How PB-PRO1S-PCI joins a DP network

A practical view of the signal, control and integration decisions behind this model.

CORE ROLEPC-to-PROFIBUS link

The PCI card gives an industrial computer a dedicated PROFIBUS DP slave connection without using an external gateway.

X20
01

Connect

The isolated 9-pin fieldbus port connects the host computer to the PROFIBUS segment.

02

Exchange

The card transfers cyclic process data through dedicated shared memory on the PCI bus.

03

Integrate

Driver support lets the host application supervise the DP slave data path.

APPLICATION 01Test and simulation

Use a PC application as a defined DP slave during machine or network validation.

APPLICATION 02Industrial data acquisition

Transfer PROFIBUS process values into a PCI-based monitoring computer.

APPLICATION 03Legacy system service

Maintain an installed PC platform that depends on a native PROFIBUS interface.

03
PURCHASING FAQ

FAQ for PB-PRO1S-PCI

Clear answers for selecting, replacing and sourcing the right configuration.

01

Which PROFIBUS role is built into Softing PB-PRO1S-PCI?

Softing PB-PRO1S-PCI is the single-channel slave-only version. It should not be ordered when the host computer must act as a PROFIBUS DP master.

02

What host hardware must be checked before installing Softing PB-PRO1S-PCI?

Confirm a free PCI 2.2 slot, the available 5 V and 3.3 V supplies, enclosure clearance for a 168 x 64 mm card and a supported operating system.

03

How fast can Softing PB-PRO1S-PCI communicate on PROFIBUS DP?

Softing PB-PRO1S-PCI supports the standard documented rates from 9.6 kbit/s through 12 Mbit/s; the selected rate must match the DP segment.

04

Where is Softing PB-PRO1S-PCI commonly used in an automation system?

Softing PB-PRO1S-PCI is suited to PCI-based test stations, supervisory computers and embedded controls that must exchange cyclic data as a DP slave.

05

What is the official successor to discontinued Softing PB-PRO1S-PCI?

Softing lists PB-PRO1-PCI as the successor. Confirm software licensing, driver support and the required master or slave role before changing hardware.

06

What details should accompany a quotation request for Softing PB-PRO1S-PCI?

Provide quantity, destination, PC model, operating system, PROFIBUS role, required data package and whether a replacement for an installed card is involved.
