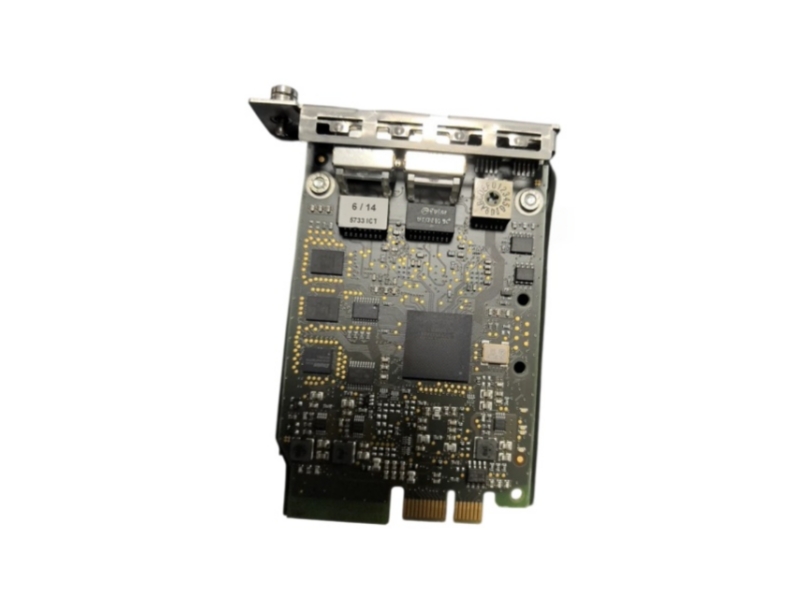

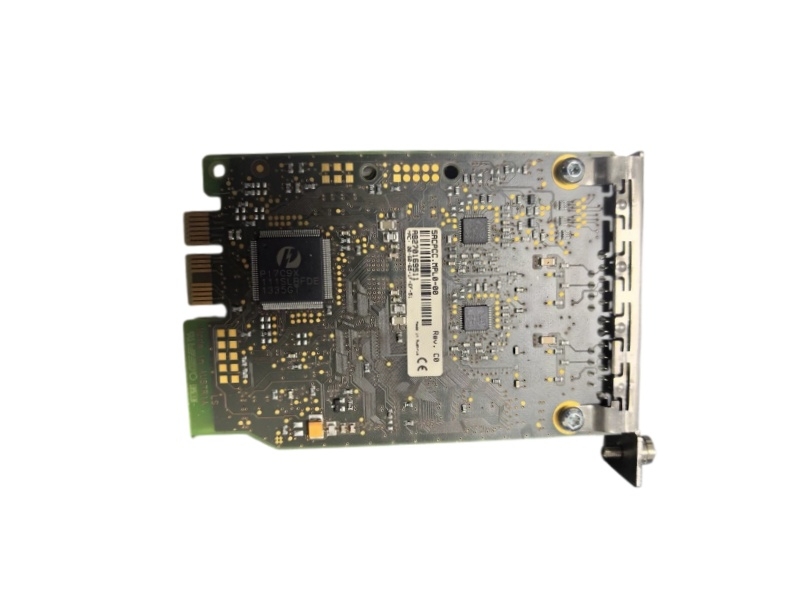

Name: B&R 5ACPCC.MPL0-00 POWERLINK PCI Express Compact Card
Availability: InStock

OFFICIAL INTERFACE DATA

POWERLINK ports, memory and host connection

Network speed, connectors, retained memory, addressing and compliance data.

Material number5ACPCC.MPL0-00

Card typePCI Express compact POWERLINK card

Network protocolPOWERLINK

Transfer rate100 Mbit/s

Ethernet standard100BASE-T, IEEE 802.3

Network ports2

Connector typeShielded RJ45

Internal network element2-port hub

Maximum segment length100 m

Host slotPCIe compact module slot

Station-number controls2 rotary switches

Card-number control1 rotary switch

Installed SRAM512 kB

Retained variable area128 kB

Retention eventHost power failure

Status indicationData-transfer LED

B&R ID code0xAB27

ConformityCE and UKCA

Supported PC familyAutomation PC 820

Supported panel familyPanel PC 800

FUNCTION PATH

How the PCIe compact card extends a POWERLINK network

From host data and address selection to two-port deterministic Ethernet communication.

Install

Seat the module in the supported PCIe compact slot.

Address

Set the card and network station numbers with the rotary controls.

Connect

Attach shielded Ethernet segments to the two RJ45 ports.

Exchange

Move cyclic process data between the host and POWERLINK nodes.

Retain

Preserve designated variables through a host power interruption.

ADDITIONAL POWERLINK MASTERFor compatible industrial PCs that need a separate real-time network interface.

MACHINE-SEGMENT ISOLATIONFor architectures that separate a dedicated POWERLINK branch from other communication.

RETAINED NETWORK VARIABLESFor control tasks that require selected card memory to survive host power loss.

BUYER DECISION GUIDE

5ACPCC.MPL0-00 questions answered

Clear guidance for configuration, compatibility, sourcing and documentation.

QUESTION 01

What network function does B&R 5ACPCC.MPL0-00 add to an Automation PC?

It provides an additional 100 Mbit/s POWERLINK interface through a PCI Express compact expansion slot.

QUESTION 02

How can both RJ45 ports on B&R 5ACPCC.MPL0-00 be used?

The internal two-port hub supports line-style POWERLINK wiring; both connections belong to the same card interface rather than independent controllers.

QUESTION 03

Which host-platform details determine compatibility with B&R 5ACPCC.MPL0-00?

Check the exact Automation PC or Panel PC family, available PCIe compact slot, Automation Runtime release and approved hardware documentation.

QUESTION 04

What remains available after power loss on B&R 5ACPCC.MPL0-00?

The card provides a defined retained-variable area in its SRAM; the application must be designed to use that area correctly.

QUESTION 05

Has B&R announced a direct replacement for B&R 5ACPCC.MPL0-00?

The official product page does not name a direct successor. Confirm lifecycle, host support and availability for the exact material number before purchase.

QUESTION 06

What evidence is useful when requesting B&R 5ACPCC.MPL0-00 documentation and delivery?

Send the host computer material number, installed slot, Automation Runtime version, network role, quantity, destination and required date.
