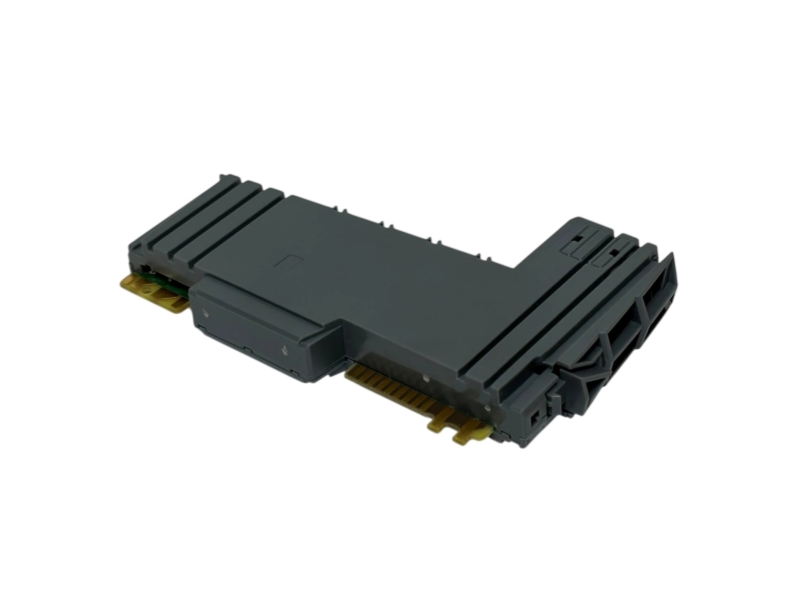

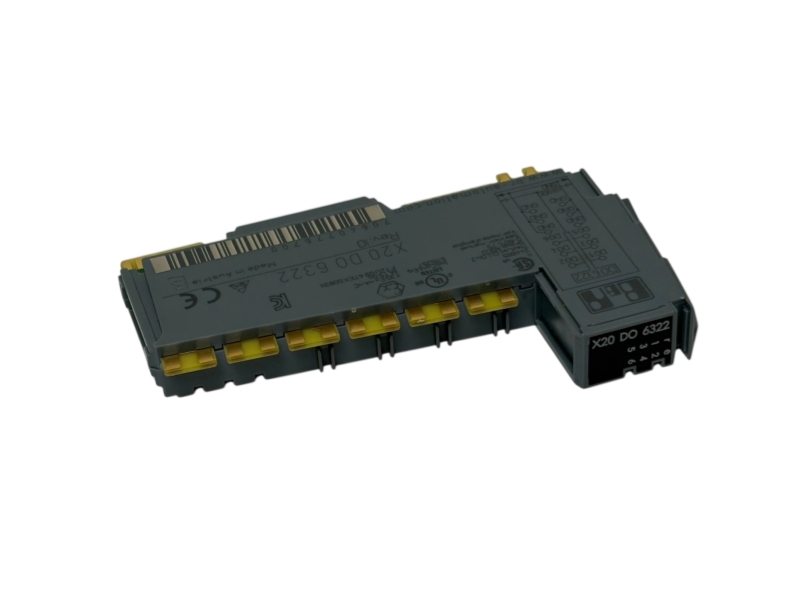

Name: B&R X20DO6322 X20 6-Channel Digital Output Module
Availability: InStock

OFFICIAL OUTPUT DATA

Six-channel output and installation specifications

Channel loading, protection, power, isolation and environmental boundaries.

Material numberX20DO6322

Product familyB&R X20 System

Output channels6

Output circuitSource

Nominal output voltage24 VDC

Rated output current0.5 A per channel

Connection options1-wire or 2-wire

Ground distributionSignal supply available

Output protectionIntegrated

Safe-state functionOSP mode

Bus power consumption0.18 W

Internal I/O consumption0.71 W

Electrical isolationChannels isolated from bus

Channel / I/O supply isolationNot provided

Status indicationChannel and operating-state LEDs

Degree of protectionIP20

Horizontal operation-25 to 60 degrees C

Vertical operation-25 to 50 degrees C

Storage and transport-40 to 85 degrees C

Relative humidity5 to 95%, non-condensing

Maximum altitude without derating2000 m

Module pitch12.5 +0.2 mm

1-wire terminal blockX20TB06

2-wire terminal blockX20TB12

Required bus moduleX20BM11

B&R ID code0x1B98

FUNCTION PATH

How X20DO6322 delivers supervised field commands

From controller output data to protected switching and load-state indication.

Receive

Accept the six-channel output image from the X20 controller.

Validate

Apply the configured module and safe-state behavior.

Switch

Connect the field supply to the selected source outputs.

Protect

Respond to electrical overload or short-circuit conditions.

Indicate

Expose channel and module status for service diagnostics.

COMPACT VALVE BANKSFor six discrete 24 VDC commands in distributed machine I/O.

CONTACTOR AND RELAY CONTROLFor source-driven interface loads within the documented channel current.

MIXED WIRING LAYOUTSFor stations choosing 1-wire or 2-wire terminals to suit panel practice.

BUYER DECISION GUIDE

X20DO6322 questions answered

Clear guidance for configuration, compatibility, sourcing and documentation.

QUESTION 01

What wiring choices are available for B&R X20DO6322?

Use X20TB06 for continuous 1-wire connections or X20TB12 when each field device needs a separate return connection.

QUESTION 02

Which X20 base is required beneath B&R X20DO6322?

B&R specifies the X20BM11 bus module, ordered separately, as the base for this output slice.

QUESTION 03

How does OSP behavior help an application using B&R X20DO6322?

Output Safe State defines the module response when normal controller communication is unavailable, supporting a planned machine-state strategy.

QUESTION 04

Where is B&R X20DO6322 commonly integrated?

It suits compact X20 stations controlling valves, relays, contactors and other discrete 24 VDC loads within the documented output limits.

QUESTION 05

Is B&R X20DO6322 obsolete or assigned an official successor?

B&R maintains the product datasheet and does not identify a replacement on the official page; request a dated availability check for procurement.

QUESTION 06

What terminal information should be included in a B&R X20DO6322 quote request?

State whether X20TB06 or X20TB12 is required, confirm the X20BM11 base, provide quantity, destination and the field-load summary.
