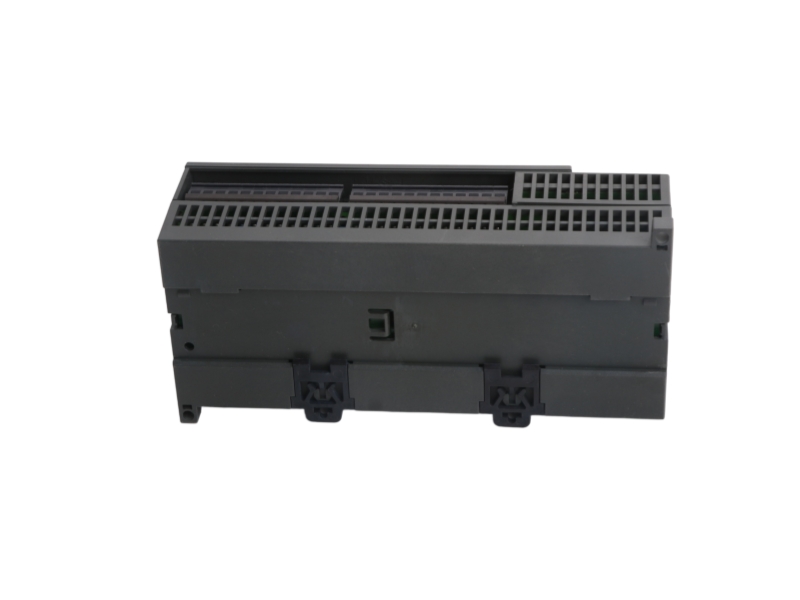

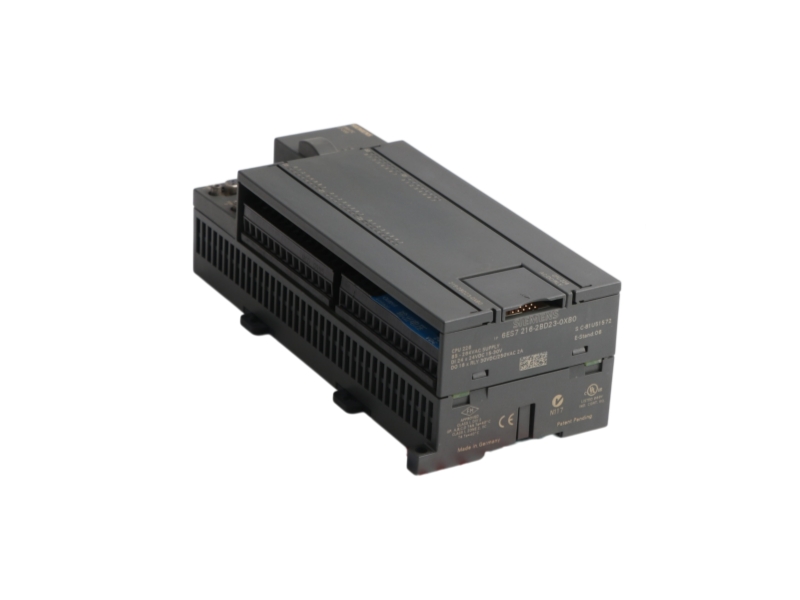

Name: Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 226 PLC
Availability: InStock

OFFICIAL CPU DATA

CPU 226 power, I/O and communication specifications

Integrated resources, memory, interfaces, dimensions and lifecycle data.

Article number6ES7216-2BD23-0XB0

Controller familySIMATIC S7-200

CPU designationCPU 226

Supply voltage120 to 240 VAC

Integrated digital inputs24

Digital input voltage24 VDC

Integrated digital outputs16

Output typeRelay

Program memory16 / 24 kB

Data memory10 kB

Communication interfaces2

Interface modesPPI and freeport

5 VDC current available1000 mA

24 VDC sensor supply400 mA

Power dissipation17 W

Product width196 mm

Product height80 mm

Product depth62 mm

Net weight0.571 kg

Packaging dimensions20.5 x 11.1 x 7.4 cm

Commodity code85371091

EAN4025515071037

UPC662643188356

LifecycleDiscontinued spare part

FUNCTION PATH

How the CPU 226 coordinates an S7-200 machine

From field signals and the stored control program to relay outputs and serial data exchange.

Read

Sample the integrated digital inputs and attached expansion data.

Execute

Process the stored logic, timers, counters and data operations.

Communicate

Exchange serial information through the configured PPI or freeport interfaces.

Update

Drive the integrated relay outputs according to the control result.

Repeat

Continue the cyclic scan while monitoring diagnostics and communications.

COMPACT MACHINE CONTROLFor legacy equipment using dense onboard AC-powered S7-200 I/O.

RELAY-OUTPUT PANELSFor loads that require the installed CPU 226 relay-output configuration.

S7-200 SPARE STRATEGYFor maintaining an existing program while a platform migration is evaluated.

BUYER DECISION GUIDE

6ES7216-2BD23-0XB0 questions answered

Clear guidance for configuration, compatibility, sourcing and documentation.

QUESTION 01

What I/O mix is built into Siemens 6ES7216-2BD23-0XB0?

The CPU 226 includes 24 digital inputs for 24 VDC signals and 16 relay outputs inside the compact controller.

QUESTION 02

How can the two ports on Siemens 6ES7216-2BD23-0XB0 be configured?

They support Siemens PPI communication and freeport programming for approved serial protocols defined by the user application.

QUESTION 03

Which expansion details must be recorded around Siemens 6ES7216-2BD23-0XB0?

Document every module order number, rack order, address assignment, field connector and external power arrangement before replacement.

QUESTION 04

Why is the packaging size relevant when ordering Siemens 6ES7216-2BD23-0XB0?

Siemens provides a separate package dimension for logistics; it should not be confused with the smaller installed product envelope.

QUESTION 05

How does the discontinued status of Siemens 6ES7216-2BD23-0XB0 affect a retrofit?

Treat a newer Siemens controller as a migration project requiring program conversion, I/O review, communication changes and panel engineering.

QUESTION 06

Which identification photos support a Siemens 6ES7216-2BD23-0XB0 enquiry?

Provide the front order-number label, side label, terminal areas, connected expansion modules and any visible firmware or project information.
