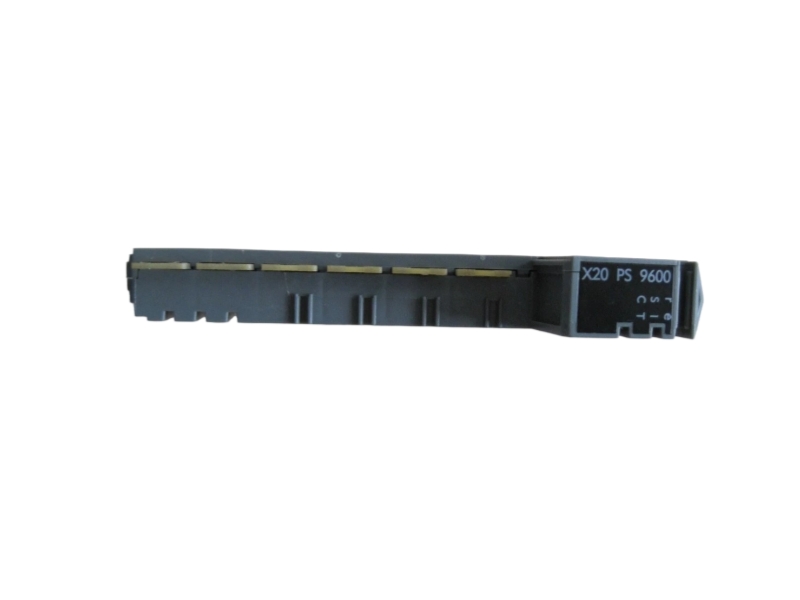

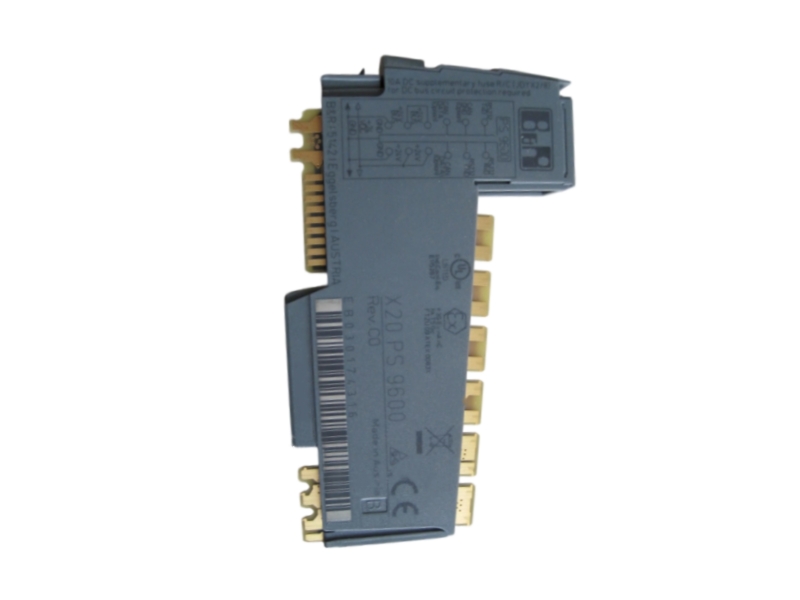

Material numberX20PS9600
Product roleCompact-S PLC, X2X Link and internal I/O power supply
B&R ID code0xEB03
Controller / X2X input24 VDC -15% / +20%
Maximum input current0.7 A
Controller input fuseIntegrated and non-replaceable
Controller input polarityReverse-polarity protected
Controller / X2X output7 W nominal
Parallel operationSupported with synchronized switching
Parallel usable output75% of nominal power
Redundant operationSupported for the controller / X2X supply
Overload characteristicShort-circuit proof with temporary overload
I/O supply range20.4 to 28.8 VDC
Required I/O line fuseMaximum 10 A slow-blow
I/O polarity protectionNot provided
I/O output voltage24 VDC nominal
Permissible contact load10 A maximum
Interface IF1RS232 or RS485 via X20TB12
IF1 transfer rateUp to 115.2 kbit/s
Interface IF3CAN via X20TB12
IF3 transfer rateUp to 1 Mbit/s
X2X supply consumption1.42 W maximum
Internal I/O consumption0.6 W maximum
Electrical isolationPLC / X2X path isolated; I/O path not isolated
Bus overcurrent warningAbove 2.3 A
Bus undervoltage warningBelow 4.7 V
I/O undervoltage warningBelow 20.4 V
SupplyCurrent resolution0.1 A
SupplyVoltage resolution0.1 V
Bus nominal voltage5 V
Minimum cycle time100 us
Minimum I/O update time2 ms
Horizontal operation-25 to 60 deg C
Vertical operation-25 to 50 deg C
Storage and transport-40 to 85 deg C
Relative humidity5 to 95%, non-condensing
Installation altitude0 to 2000 m without limitation
Altitude deratingReduce maximum temperature 0.5 deg C per 100 m
Protection ratingIP20
Module pitch12.5 +0.2 mm
Conformity marksCE and UKCA
UL approvalcULus E115267
Required terminal blockX20TB12, ordered separately
Compatible bus basesX20BB52 / 53 / 57 / 62 / 63 / 67 / 72 / 77
