B&R X20DI9371 X20 12-Channel 24 VDC Digital Input Module

X20 CURRENT-SINKING DIGITAL INPUT

X20DI9371

B&R X20DI9371 acquires twelve 24 VDC current-sinking digital signals with configurable module-wide filtering in an X20 station.

12 INPUTS24 VDCSINK1-WIRE
Brand New OriginalOne Year WarrantyWorldwide Shipping
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number X20DI9371
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
DIGITAL INPUT DATA

Signal and installation profile for X20DI9371

Official model data organized for confident specification and replacement review.

Model numberX20DI9371
B&R ID code0x1B95
Digital inputs12
Nominal input voltage24 VDC
Input circuit typeCurrent sinking
Wiring technology1-wire
Input filterConfigurable in software for the entire module
Channel status indicationLED per channel
Module diagnosticsLED and software status
X2X Link consumption0.18 W
Internal I/O consumption1.75 W
Horizontal operating temperature-25 to 60 °C
Vertical operating temperature-25 to 50 °C
Storage and transport-40 to 85 °C
Relative humidity5 to 95%, non-condensing
Module pitch12.5 +0.2 mm
Required terminal blockX20TB12, ordered separately
Compatible bus moduleX20BM11 or X20BM15
ConformityCE and UKCA
UL recognitioncULus E115267
Hazardous-location approvalATEX Zone 2
Marine approvalDNV
02
FUNCTION PATH

How X20DI9371 brings field states into control logic

A practical view of the signal, control and integration decisions behind this model.

CORE ROLETwelve-channel input stage

The module accepts current-sinking 24 VDC field states and transfers their conditioned status through the X20 backplane.

X20
01

Sense

Twelve 1-wire input channels receive discrete states from compatible field circuits.

02

Filter

One software setting applies the selected input filter behavior across the entire module.

03

Report

Channel LEDs and process data expose input state and diagnostic information to the controller.

APPLICATION 01Control-panel feedback

Collect relay, contact and semiconductor states in a high-density X20 slice.

APPLICATION 02Machine interlocks

Bring discrete permissive and guard-circuit status into controller logic.

APPLICATION 03Distributed I/O station

Add twelve 24 VDC sink inputs to a compact remote machine node.

03
PURCHASING FAQ

FAQ for X20DI9371

Clear answers for selecting, replacing and sourcing the right configuration.

01

What field-signal polarity does B&R X20DI9371 require?

B&R X20DI9371 is a current-sinking 24 VDC input module, so the sensor and common wiring must be designed for that input behavior.

02

Is the input filter set independently for every channel on B&R X20DI9371?

No. B&R documents a configurable filter that applies to the entire module, so all twelve channels share the selected filter behavior.

03

Which removable connection components are needed with B&R X20DI9371?

B&R X20DI9371 requires an X20TB12 terminal block and a compatible X20BM11 or X20BM15 bus module; these parts are ordered separately.

04

How does B&R X20DI9371 indicate a field-state change?

Each channel has a status LED, and the controller can read channel state and module diagnostic information through the X20 system.

05

What must be compared before substituting B&R X20DI9371?

Compare current-sinking polarity, twelve-channel density, 1-wire terminals, shared filter behavior, bus-module choice and the Automation Studio hardware configuration.

06

Which installation details should be sent with a B&R X20DI9371 enquiry?

Provide quantity, destination, controller and X20 base information, terminal-block requirement, sensor wiring, ambient conditions and clear photos of the existing module.

04
A PRACTICAL SOURCING PARTNER

Why Choose Us

Practical support from product selection through international delivery.

01One-stop automation sourcing

Thousands of suppliers and a wide range of products allow you to experience a one-stop shop.

02Quality comes first

The highest quality product.

03Warranty confidence

Most products have a warranty period of up to one year, and any quality issues will be refunded at our expense. Each item undergoes rigorous testing before delivery.

04Responsive sales support

Our sales personnel provide you with over 10 hours of service and promptly respond to your inquiries.

05Fast international delivery

Quickly deliver all products within 1-3 days after placing an order. Most goods will be delivered to you in a timely manner through DHL's fastest service.

06Transport-ready packaging

Good packaging ensures transportation safety and greatly saves transportation costs.

05
A LONG-TERM AUTOMATION PARTNER

Our Company History

A steady foundation for dependable automation partnerships.

Company office in 2016
2016
Company office in 2026
2026
2005 — THE BEGINNING

Product knowledge starts with focus.

Company was founded in Xiamen, Fujian, China, in 2005 with a team of only four people. At that time, we mainly served selected European and North American markets, supplying commonly requested industrial automation products from Siemens, Allen-Bradley and Bently Nevada. Although the business was still developing and we completed relatively few orders, this period helped us build essential product knowledge and international trade experience.

2017 — A PERIOD OF GROWTH

Inventory and service expand together.

By 2017, our team had grown to approximately 30 people, and we had established a warehouse for in-stock automation components. Our business expanded across Europe, North America and Southeast Asia, while our product range grew from popular models to scarce and discontinued industrial automation parts. As our product knowledge and service experience increased, we completed nearly 20 orders per month on average.

TODAY — SERVING WORLDWIDE

A broader team for complex sourcing.

Today, Company serves customers worldwide with a professional team of approximately 60 people. Our warehouse holds a broad selection of industrial automation components, including popular products, hard-to-find parts and discontinued models. We now complete more than 30 orders per month, with an average monthly transaction value of approximately USD 3 million. We have established long-term partnerships with nearly 30 customers from different countries and welcomed almost 40 international customers to visit our company.

Since our company was founded, we have served every customer with sincerity and professionalism. Our prices may not always be the lowest, but we earn long-term trust through quality products, dependable after-sales support, honest condition reporting, timely communication and responsible delivery. Our goal is to build lasting partnerships rather than pursue one-off transactions.

06
EXPLORE MORE AUTOMATION PARTS

More automation models

Explore complementary automation components for future system needs.

01TD220030
02SB-DIM46c2A-DN
037TCA085450R0026
04RSG2100 100FX 40-00-0043
05MB158S186K15
06QL-PS1202
07ES-1000
08MX35
09DL-230CPU D2-16ND3-2 D2-08CDR D2-12TR
10EPN-110DN
11ABB 1SNA115930R1300
12TSDW2CO
13MPA2
14PCS090 PG090.204.A
15CYK10-A051
161PH UNO-PS/1AC/12DC/30W
17PXC64-U
18WML-317-292
19WRB100
20EY-IO550F001
210004A3C138EA
22ABB M2M 2CSG299883R4052
236SE6400-3TC00-4AD2
243TX7014-1BM02
25X13760335-01 TD7
264032L
27KDM-R2
28026592 I/O RS485
29HP2000
30BIP-5000
31GE 55-501463G002
32IPT2300
33JA/S 4.SMI.1M
34FVS318AU
35FS88
36K1137
37CLIOP821A
38FMI-100BU
39PSX220
REQUEST A QUOTEDiscuss your X20DI9371 requirement
SALES MANAGERMay

Related Products

B&R X20AI8221 X20 8-Channel Analog Input Module
B&R X20AI8221 X20 8-Channel Analog Input Module

B&R X20 / ANALOG INPUT8-CHANNEL +/-10 V X20AI8221 B&R X20AI8221 is an eight-channel differential analog input module for measuring ±10 V signals, enabling accurate acquisition of sensor and process values in X20 automation stations. Integrity SupplyOne Year WarrantyFast Delivery ANALOG I/O ENQUIRY Match the signal range, wiring and X20 base. 8INPUTS +/-10 VSIGNAL 13-bitSIGNED 1 msALL CHANNELS Inquire Now WhatsApp +86 181069096502-3 DAYS

Details

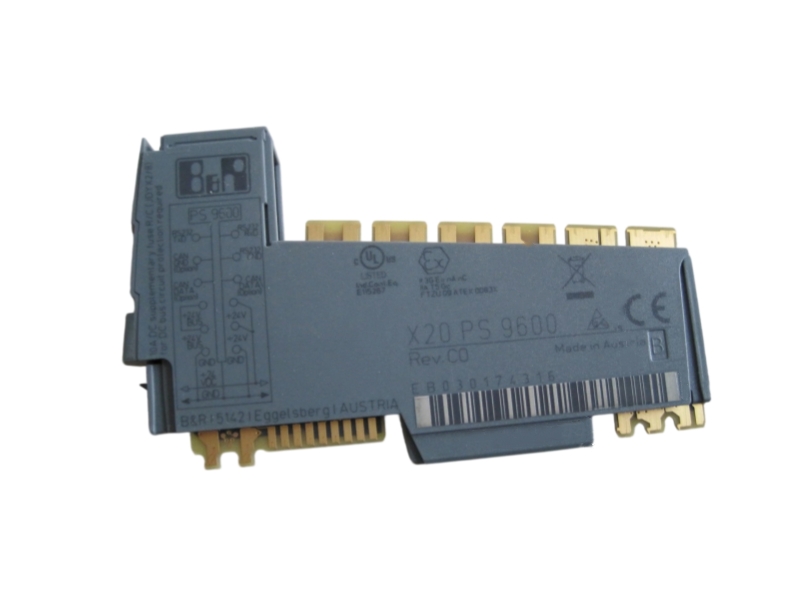

B&R X20PS9600 power supply module front view
B&R X20PS9600 X20 Compact-S PLC Power Supply Module

B&R X20 POWER ARCHITECTURE X20PS9600 B&R X20PS9600 provides isolated 24 VDC power for Compact-S PLC systems and X2X Link communication, supporting reliable operation in compact distributed automation stations. 24 VDC7 W OUTPUTISOLATEDREDUNDANCY PRODUCT ENQUIRYBuild the rightpower path. Share the CPU, bus base, interface and destination for a precise quotation. Inquire Nowab@mooreplc.com Brand New OriginalOne Year WarrantyWorldwide Shipping

Details

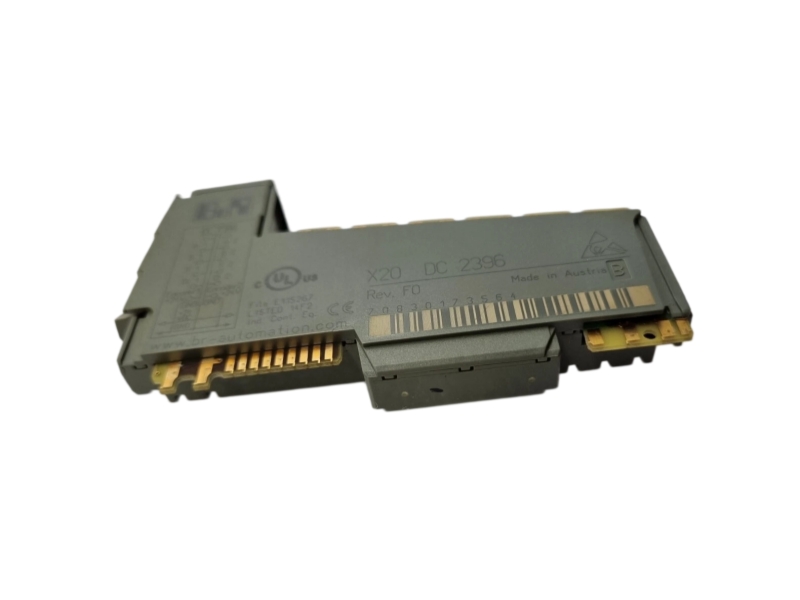

B&R X20DC2396 2-channel ABR incremental encoder module front view
B&R X20DC2396 X20 2-Channel ABR Incremental Encoder Module

PRODUCT ENQUIRY LEAD TIME  2-3 DAYS B&R X20 / ENCODER MODULE X20DC2396 B&R X20DC2396 captures two 24 V ABR encoder channels for position, direction and homing in compact X20 stations. Brand New OriginalOne Year WarrantyFast Delivery Inquire Now WhatsApp +86 18106909650

Details

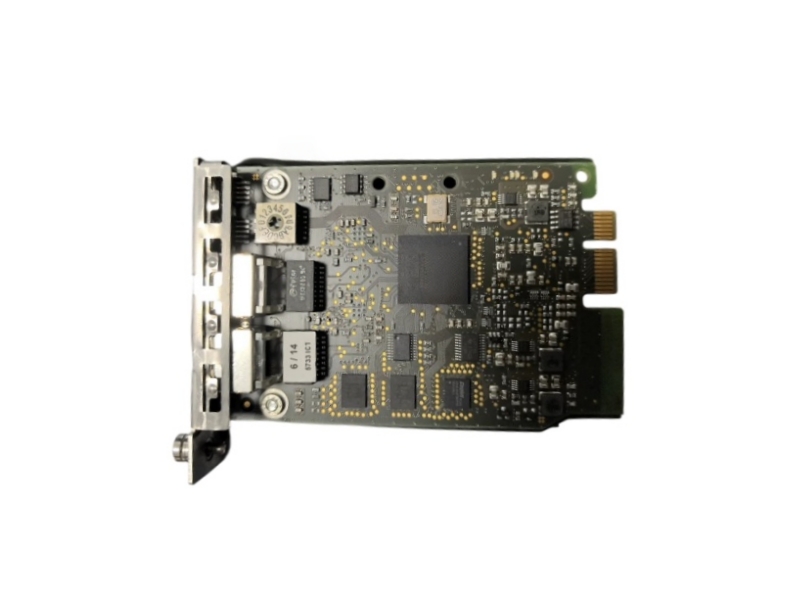

B&R 5ACPCC.MPL0-00 interface connectors and board detail
B&R 5ACPCC.MPL0-00 POWERLINK PCI Express Compact Card

PRODUCT ENQUIRYLEAD TIME  2-3 DAYS B&R / POWERLINK COMMUNICATION 5ACPCC.MPL0-00 B&R 5ACPCC.MPL0-00 adds a dual-port 100 Mbit/s POWERLINK interface and retained SRAM to a compatible PCI Express compact host. Integrity SupplyOne Year WarrantyFast Delivery Inquire Now WhatsApp +86 18106909650

Details

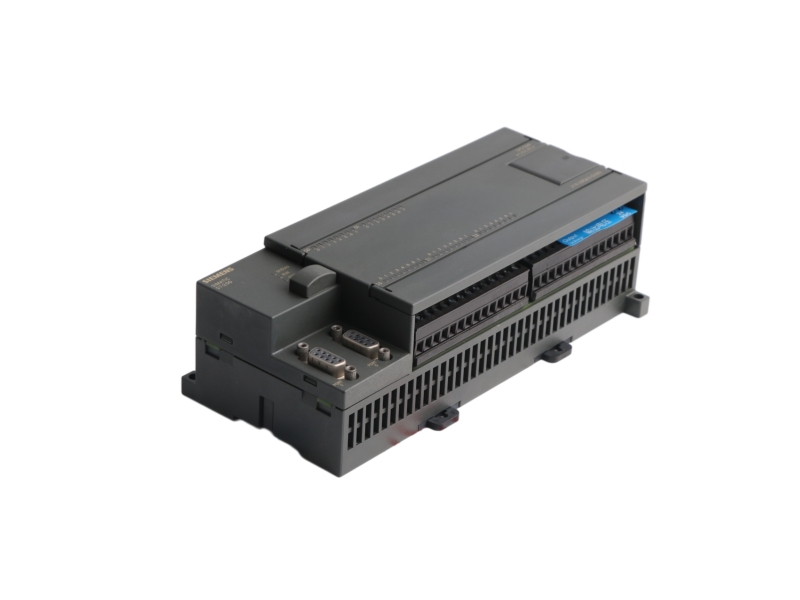

Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU front view
Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 226 PLC

PRODUCT ENQUIRYLEAD TIME  2-3 DAYS SIEMENS / SIMATIC S7-200 6ES7216-2BD23-0XB0 Siemens 6ES7216-2BD23-0XB0 is an S7-200 CPU 226 with 120-240 VAC supply, 24 digital inputs, 16 relay outputs and two communication ports. Integrity SupplyOne Year WarrantyFast Delivery Inquire Now WhatsApp +86 18106909650

Details

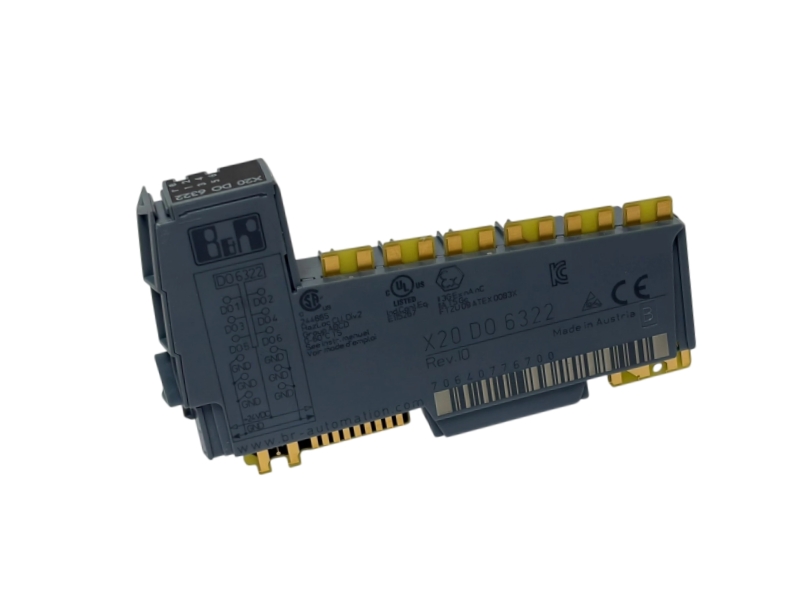

B&R X20DO6322 digital output module front view
