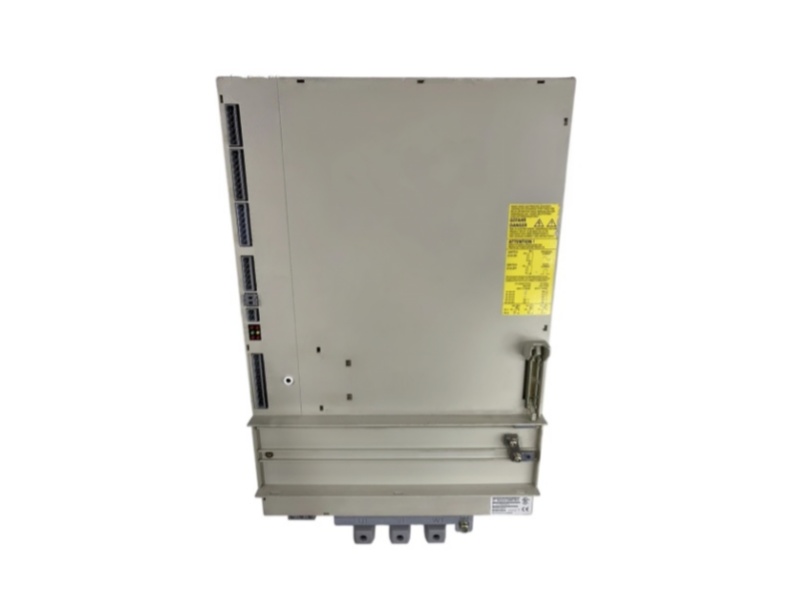

Siemens 6SN1146-1BB00-0EA1 front view

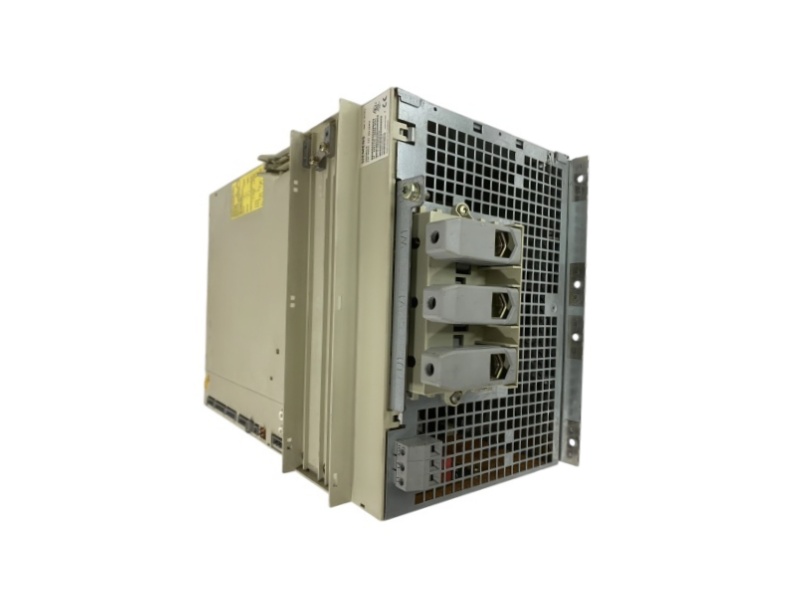

Siemens 6SN1146-1BB00-0EA1 product view 1

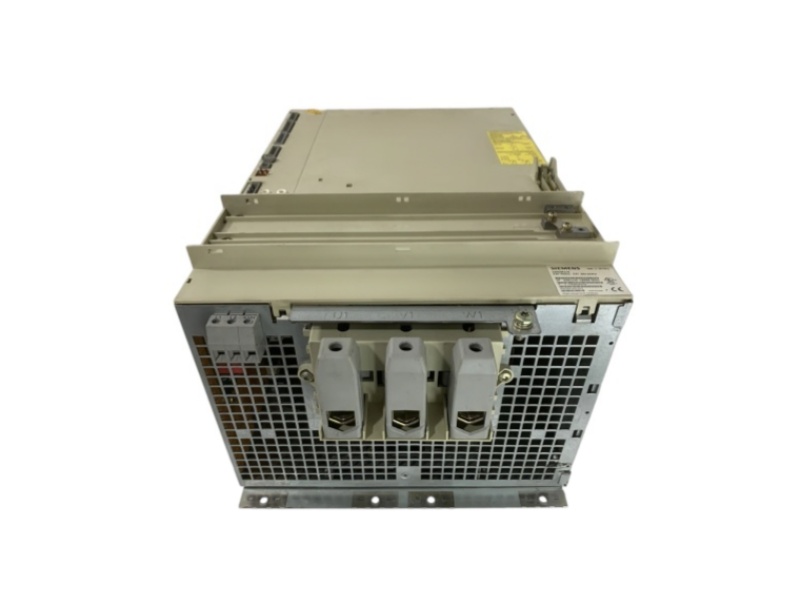

Siemens 6SN1146-1BB00-0EA1 product view 2

Siemens 6SN1146-1BB00-0EA1 SIMODRIVE 611 80/104 kW Closed-Loop Infeed/Regenerative Feedback Module

Siemens · SIMODRIVE 611
6SN1146-1BB00-0EA1
Siemens 6SN1146-1BB00-0EA1 is an 80/104 kW closed-loop SIMODRIVE 611 infeed/regenerative feedback module with external cooling for a configured common-DC-link drive group.
Rated duty
80 kW S1
Regenerative duty
104 kW S6
Official status
Prod. Cancellation
External-cooling cabinet interface · 24.00 kg net weight · no direct Siemens successor displayed
Line module
80
kW · closed loop
External heat path
Common DC link
Regenerative feedback
INQUIRE NOW
ONE YEAR WARRANTY
24/7 SERVICE
FAST DELIVERY
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens
Item number 6SN1146-1BB00-0EA1
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044095
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01

Verified performance
Eight verified ratings define the EA1 operating envelope.
Official values for electrical selection and cabinet planning.
01Rated power (S1)
80 kW
02S6 power
104 kW
03Peak power at 400 V
131 kW
04Sinusoidal input current
134 A RMS
05Squarewave input current
149 A RMS
06Maximum line conductor
95 mm²
07Module width
300 mm
08Efficiency
0.97
Country of origin
Germany
Commodity Code
85044095
Official net weight
24.00 kg
Official lifecycle
Prod. Cancellation
02
External cooling route
Build the cabinet boundary before energizing the line module.
The mechanical opening, sealing and airflow path are part of the product configuration.
Cooling type cannot be changed from the power label alone.
01
Cabinet opening
The heatsink passes through the rear mounting plane so most thermal loss can enter an external cooling circuit.
02
Sealed frame
Seal the mounting frame around its circumference and keep the rear cabinet panel bare metal at the interface.
03
External air path
Keep the inlet unobstructed, maintain at least 50 mm side clearance and prevent cooling-lubricant contamination.
04
Fan maintenance
Use the separately ordered built-on fan, verify rotation and protective bonding, and clean accumulated dirt as required.
Heatsink zone
IP54
Electronics zone
IP20
Frame screw
M5 · 3 Nm
Contactor control
External supply
Official Siemens source: SIMODRIVE 611 Configuration Manual, external-cooling and I/R-module chapters.
03

Buyer decision notes
Questions customers ask about Siemens 6SN1146-1BB00-0EA1.
Practical answers for exact-model evaluation.
What must be matched beyond the nameplate when replacing Siemens 6SN1146-1BB00-0EA1?
Match the external-cooling cabinet interface, line-side components, common-DC-link arrangement, control connections and complete machine documentation. A similar power rating alone does not establish compatibility.
01
Which application is Siemens 6SN1146-1BB00-0EA1 designed to support?
It is the line-side infeed/regenerative feedback unit in a configured SIMODRIVE 611 drive group, supplying the common DC link and returning braking energy through the engineered line connection.
Can an internally cooled module be installed directly in place of Siemens 6SN1146-1BB00-0EA1?
No direct interchange should be assumed. The heatsink position, rear-panel opening, mounting frame, fan arrangement and cabinet thermal boundary must be reviewed before any change of cooling type.
02
Is Siemens 6SN1146-1BB00-0EA1 still an active Siemens catalog product?
No. Siemens marks the exact article as Product Cancellation and identifies it as a spare part. Actual condition, stock and delivery are confirmed for each quotation.
Does Siemens publish a direct successor for Siemens 6SN1146-1BB00-0EA1?
The reviewed Siemens product record does not display a direct successor. Use the exact article or complete a documented system-migration review before selecting another configuration.
03
What should be provided with a manual and quotation request for Siemens 6SN1146-1BB00-0EA1?
Send clear nameplate and terminal photos, the cabinet opening and fan arrangement, the connected drive-group list, requested condition, quantity, destination and required date.
