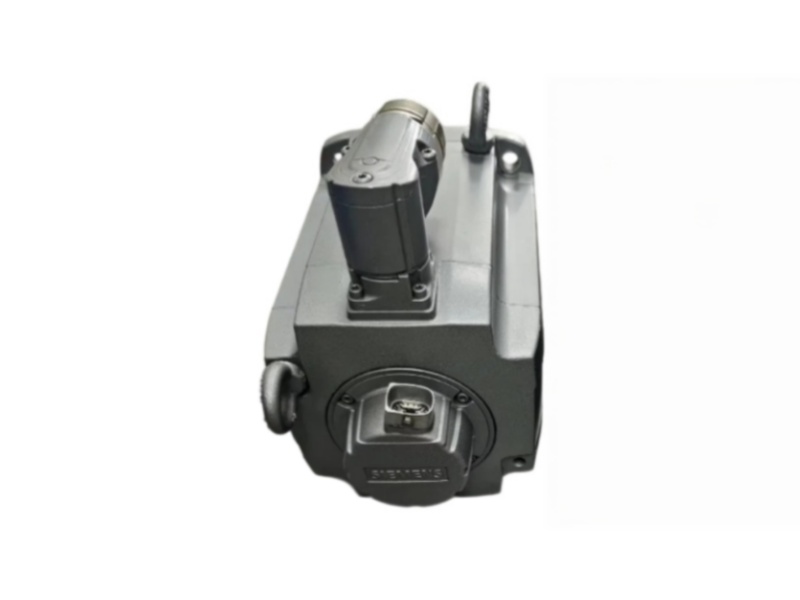

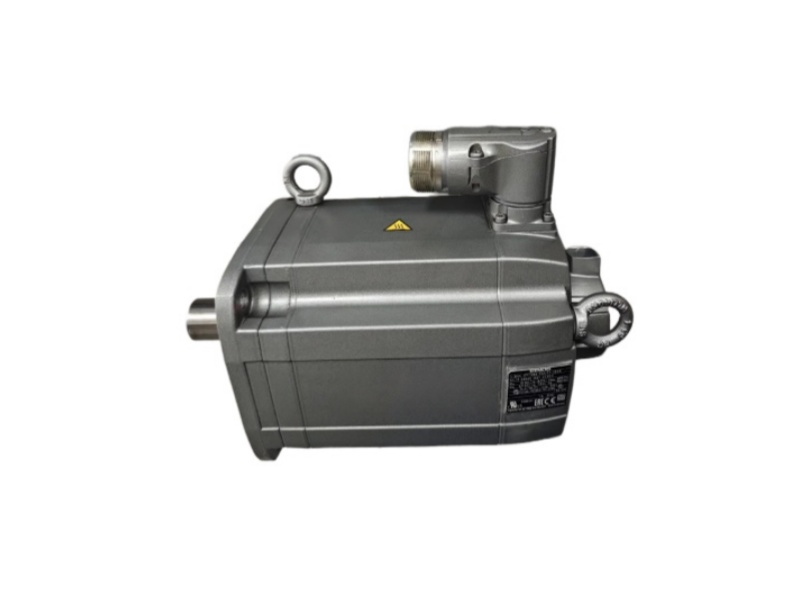

Name: Siemens 1FT7084-5AH71-1BG0 SIMOTICS S-1FT7 Synchronous Servo Motor
Availability: InStock

Siemens 1FT7084-5AH71-1BG0 SIMOTICS S-1FT7 Synchronous Servo Motor

SIEMENS / SIMOTICS S-1FT7

1FT7084-5AH71-1BG0

Siemens 1FT7084-5AH71-1BG0 is a naturally cooled 1FT7 servo motor with AS24DQI feedback for precise positioning and dynamic motion control.

Integrity Supply●One Year Warranty●Fast Delivery

9.5 N·mRATED TORQUE

4500RATED rpm

24-bitAS24DQI ENCODER

OFFICIAL MOTOR DATA

SIMOTICS torque, speed and feedback profile

Exact electrical, mechanical and encoder data for the complete 1BG0 configuration.

Article number1FT7084-5AH71-1BG0

Product familySIMOTICS S-1FT7

Motor typePermanent-magnet synchronous motor

CoolingNatural cooling

Rated speed4,500 rpm

Rated torque at 100 K9.5 Nm

Rated current7.80 A

Static torque at 100 K20.0 Nm

Static torque at 60 K16.8 Nm

Stall current at 100 K15.60 A

Stall current at 60 K13.40 A

Maximum mechanical speed8,000 rpm

Maximum inverter speed7,200 rpm

Maximum torque81.0 Nm

Maximum current80.00 A

Optimum operating speed4,000 rpm

Optimum operating power4.8 kW

Efficiency93.0%

Rotor moment of inertia45.10 kgcm²

Torque constant1.25 Nm/A

Voltage constant at 20°C79.5 V/1000 rpm

Winding resistance at 20°C0.17 ohm

Rotary field inductance2.9 mH

Number of poles10

Shaft height80

Degree of protectionIP64

EncoderAS24DQI single-turn 24-bit DRIVE-CLiQ

Net motor weight20.8 kg

SERVO ENERGY PATH

How converter power becomes controlled axis motion

Coordinate the motor module, magnetic torque production and DRIVE-CLiQ feedback.

AXIS STAGE 01

CONVERT POWER

A correctly sized SINAMICS motor module supplies the phase current required by the 1FT7 winding and machine duty.

AXIS STAGE 02

BUILD TORQUE

The permanent-magnet rotor converts controlled current into the commanded torque across the permitted speed range.

AXIS STAGE 03

CLOSE THE LOOP

The AS24DQI single-turn encoder returns absolute position information through the DRIVE-CLiQ interface.

AXIS FIT

Dynamic machine axes requiring the documented 1FT7 torque range, IM B5 flange, plain shaft and natural cooling.

INTEGRATION GATE

Confirm the motor module, DRIVE-CLiQ cable, shaft coupling, mounting orientation and absence of a holding brake before startup.

PURCHASING FAQ

Frequently Asked Questions from Buyers

Make sourcing and migration decisions with confidence.

What operating point defines Siemens 1FT7084-5AH71-1BG0 for continuous axis duty?

The exact data sheet specifies 4,500 rpm rated speed, 9.5 Nm rated torque and 7.80 A rated current, with a 4.8 kW optimum point at 4,000 rpm.

Which feedback interface is built into Siemens 1FT7084-5AH71-1BG0?

The motor uses an AS24DQI single-turn 24-bit absolute encoder with DRIVE-CLiQ and an RJ45 signal connection.

What mechanical configuration must match when installing Siemens 1FT7084-5AH71-1BG0?

Check the IM B5 design, conventional 1FT6-compatible flange, shaft height 80, plain shaft, IP64 protection and rotatable connector against the machine.

How should the motor module be selected for Siemens 1FT7084-5AH71-1BG0?

Siemens lists an 18 A rated inverter current and 54 A maximum inverter current for the recommended motor-module operating data; the application duty and DC-link conditions must also be verified.

What prevents a similar 1FT7 motor from being a direct replacement for Siemens 1FT7084-5AH71-1BG0?

Differences in winding, encoder, shaft, brake option, protection, connector and flange can change electrical and mechanical compatibility, so the complete order number must match.

What should be included when requesting availability, documentation or a quotation for Siemens 1FT7084-5AH71-1BG0?

Send the complete nameplate, motor-module model, encoder cable details, shaft and flange photos, quantity, destination and required delivery schedule.
