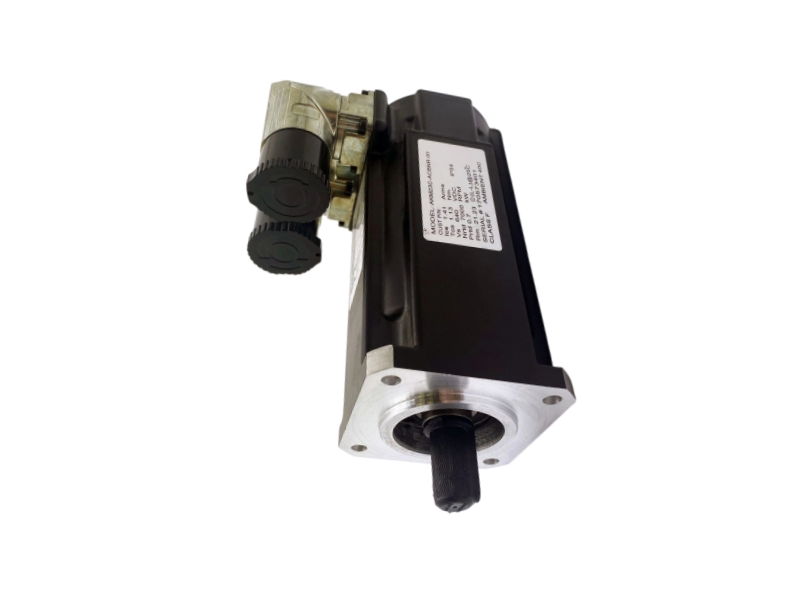

Kollmorgen AKM23C-ACBNR-00 AKM Synchronous Servo Motor

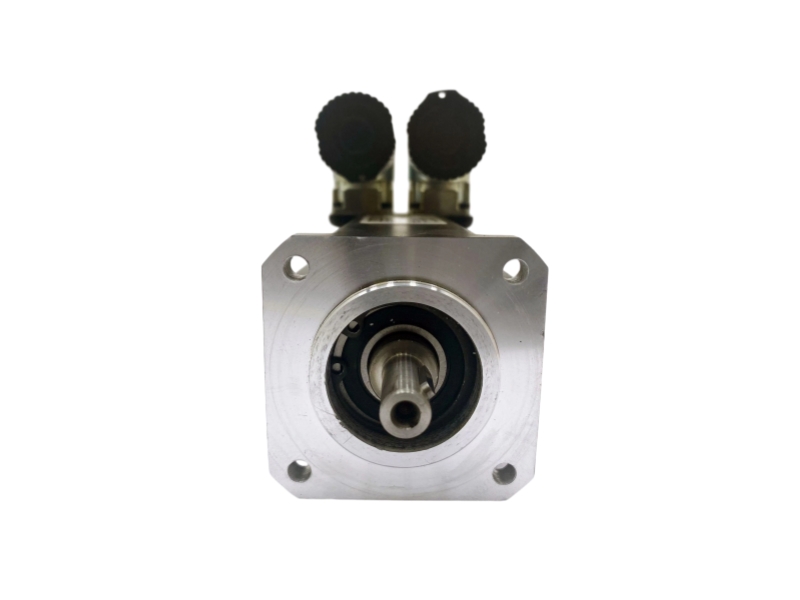

Kollmorgen AKM23C-ACBNR-00 AKM Synchronous Servo Motor - View 2
Kollmorgen AKM23C-ACBNR-00 AKM Synchronous Servo Motor - View 3

Kollmorgen AKM23C-ACBNR-00 AKM Synchronous Servo Motor

inquireKOLLMORGEN / AKM SERIES

AKM23C-ACBNR-00

Kollmorgen AKM23C-ACBNR-00 is a servo motor with resolver feedback, IP65 connectors and no holding brake for precise motion control.

Integrity Supply●One Year Warranty●Fast Delivery
3.2 N·mPEAK TORQUE
8000MAX rpm
RRESOLVER
PRODUCT ENQUIRYMatch winding, feedback, brake and connectors
LEAD TIME2-3 DAYS
Inquire Now
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Kollmorgen
Item number AKM23C-ACBNR-00
Country of Origin United States
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
OFFICIAL MOTOR DATA

AKM23C performance and option profile

Torque, speed, feedback and configuration details for the complete suffix.

01
Complete modelAKM23C-ACBNR-00
Motor familyAKM synchronous servo motor
Base windingAKM23C
Connector optionRotatable IP65 connectors
Holding brakeNo
FeedbackResolver
Continuous stall torque at 100°C rise1.13 N·m
Continuous stall current at 100°C rise1.41 Arms
Continuous torque at 60°C rise0.90 N·m
Peak stall torque3.2 N·m
Peak line current4.5 Arms
Maximum speed8000 rpm
Rotor inertia0.216 kg·cm²
Motor mass1.38 kg
Documented ambient basis40°C
Motor constructionBrushless synchronous servo
MOTION CONTROL PATH

How torque reaches the mechanical axis

Coordinate drive current, resolver feedback and load-holding requirements.

02
PROCESS STAGE 01

ENERGIZE

The matched servo drive supplies the AKM23C winding within its continuous and peak current boundaries.

PROCESS STAGE 02

MEASURE

Resolver feedback returns rotor position for commutation and closed-loop motion control.

PROCESS STAGE 03

TRANSMIT

The motor shaft delivers commanded torque while the connector arrangement supports routed power and feedback cables.

APPLICATION FIT

Compact high-dynamic positioning axes where a separate mechanical holding method is acceptable.

SIZING GATE

Verify drive voltage, current, inertia, feedback interface, shaft load and brake need before replacement.

PURCHASING FAQ

Frequently Asked Questions from Buyers

Make sourcing and migration decisions with confidence.

03
01

What do the B, N and R options identify on Kollmorgen AKM23C-ACBNR-00?

The documented AKM option scheme identifies B as rotatable IP65 connectors, N as no holding brake and R as resolver feedback.

02

Which drive checks are essential before powering Kollmorgen AKM23C-ACBNR-00?

Confirm the drive voltage class, continuous and peak current capability, resolver input, commutation setup and cable set against the complete motor nameplate.

03

Can Kollmorgen AKM23C-ACBNR-00 replace an encoder-feedback AKM23C without drive changes?

Not automatically. AKM23C-ACBNR-00 uses resolver feedback, so the drive feedback interface, cable pinout and configuration must support a resolver.

04

Is Kollmorgen AKM23C-ACBNR-00 suitable for a vertical axis that must hold position after power removal?

The N option means no motor holding brake. A vertical or suspended load needs a separately engineered holding or counterbalance method.

05

How should a sourcing offer for Kollmorgen AKM23C-ACBNR-00 be compared with another AKM23C motor?

Compare the entire suffix, winding, feedback, connector style, brake option, shaft and flange configuration rather than matching only the AKM23C base designation.

06

Which details improve a manual or quotation request for Kollmorgen AKM23C-ACBNR-00?

Provide the full nameplate, drive model, DC-bus class, cable requirements, load inertia, required quantity, destination and target delivery date.
