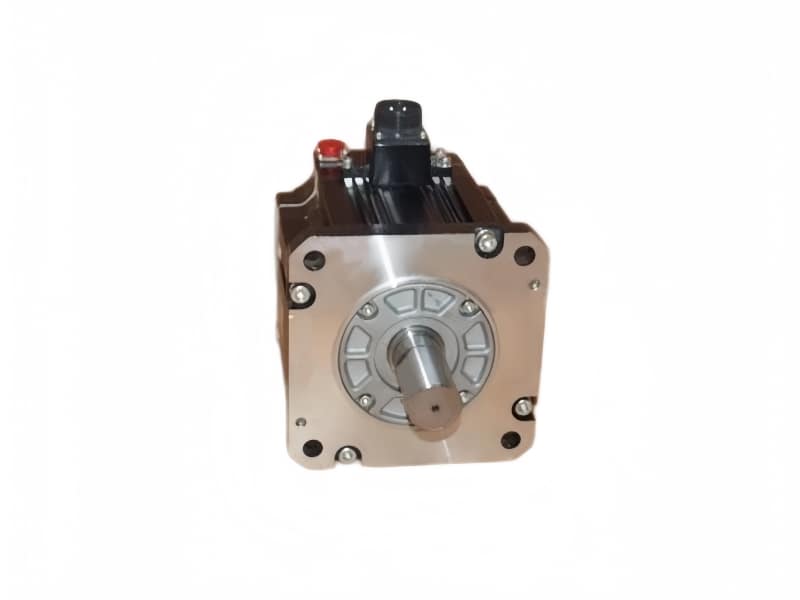

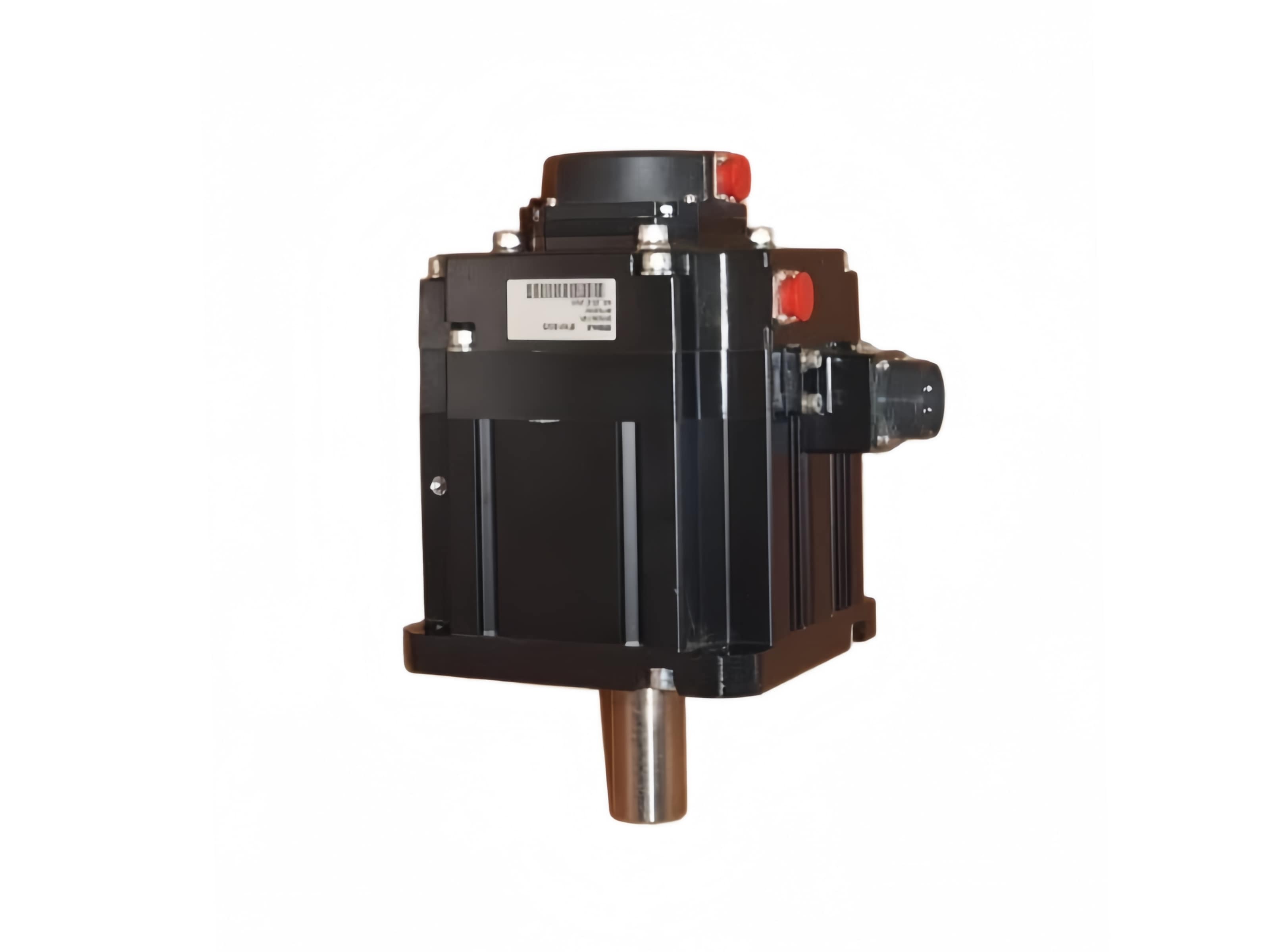

Name: Mitsubishi Electric HF-SP352B MELSERVO-J3 3.5 kW Servo Motor
Availability: InStock

Mitsubishi Electric HF-SP352B MELSERVO-J3 3.5 kW Servo Motor

MITSUBISHI ELECTRIC / HF-SP

HF-SP352B

Mitsubishi Electric HF-SP352B is a 3.5 kW, 2000 rpm servo motor with a holding brake for precise industrial motion control.

Integrity Supply●One Year Warranty●Fast Delivery

3.5 kWRATED OUTPUT

16.7 N·mRATED TORQUE

BMOTOR BRAKE

OFFICIAL MOTOR DATA

HF-SP352B torque and installation profile

Performance, brake, connector and mechanical data for the exact motor.

Complete modelHF-SP352B

Servo familyHF-SP 2000 r/min series

Inertia classMedium inertia

Capacity classMedium capacity

Voltage class200 VAC

Rated output3.5 kW

Rated torque16.7 N·m

Maximum torque50.1 N·m

Rated speed2000 r/min

Maximum speed3000 r/min

Permissible instantaneous speed3450 r/min

Power rate at rated torque37.2 kW/s

Rated current16 A

Maximum current48 A

Power-supply capacity5.5 kVA

Compatible amplifier classMR-J3-350A/B(-RJ006)/T

Brake static-friction torque44 N·m

Rotor inertia84.7 × 10^-4 kg·m²

Motor mass25 kg

Power connectorMS3102A22-22P

Encoder connectorCM10-R10P

Brake connectorCM10-R2P

Mounting holes4 × 13.5 mm

Eyebolt screw holesM8

SERVO ENERGY PATH

How drive current becomes controlled shaft torque

Coordinate amplifier capacity, encoder feedback and brake release.

PROCESS STAGE 01

SUPPLY MOTOR

The matched MR-J3 amplifier delivers current to the 3.5 kW winding within the documented continuous and peak limits.

PROCESS STAGE 02

REGULATE SPEED

Encoder feedback closes the motion loop through the dedicated CM10-R10P feedback connector.

PROCESS STAGE 03

HOLD AXIS

The electromagnetic brake provides static holding torque after motion stops and its release circuit is correctly controlled.

MACHINE FIT

Medium-inertia positioning, material handling and feed axes requiring 3.5 kW output and motor holding brake.

MECHANICAL GATE

Check flange, shaft, connector clearance, brake supply, load inertia and lifting plan before replacement.

PURCHASING FAQ

Frequently Asked Questions from Buyers

Make sourcing and migration decisions with confidence.

What does the B suffix specify on Mitsubishi Electric HF-SP352B?

The B suffix identifies the version equipped with an electromagnetic brake; the documented static-friction torque is 44 N·m.

Which amplifier capacity should be reviewed with Mitsubishi Electric HF-SP352B?

The official MELSERVO-J3 table places HF-SP352B in the MR-J3-350 amplifier class. Confirm the full amplifier suffix and feedback interface.

What motion envelope is documented for Mitsubishi Electric HF-SP352B?

The motor is rated 3.5 kW, 16.7 N·m and 2000 r/min, with 50.1 N·m maximum torque and 3000 r/min maximum speed.

Which mechanical and connector details control Mitsubishi Electric HF-SP352B interchangeability?

Compare the 4 × 13.5 mm mounting pattern, shaft alignment, 233 mm body length, power connector, encoder connector, brake connector and surrounding clearance.

Is there a direct drop-in replacement for Mitsubishi Electric HF-SP352B?

No replacement should be treated as automatic. Verify the amplifier, encoder, brake, cable set, flange, shaft, inertia and machine parameter file against the proposed motor.

What should accompany a Mitsubishi Electric HF-SP352B documentation or price request?

Send the motor and amplifier nameplates, brake voltage, cable requirements, machine duty, shaft details, quantity, destination and delivery deadline.
