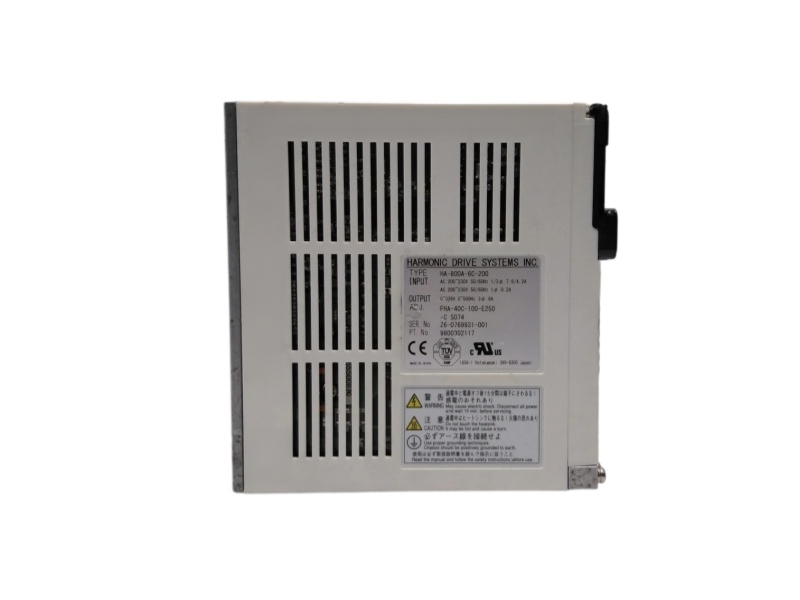

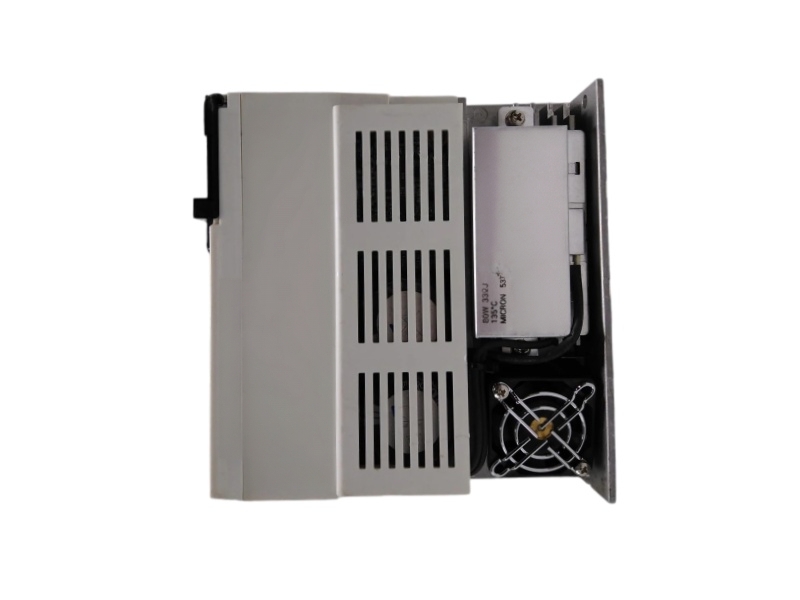

Name: Harmonic Drive HA-800A-6C-200 AC Servo Driver
Availability: InStock

Harmonic Drive HA-800A-6C-200 AC Servo Driver

HARMONIC DRIVE / HA-800A

HA-800A-6C-200

Harmonic Drive HA-800A-6C-200 is a 200 V, 6 A servo driver for precise motion control with compatible FHA-C actuators.

Integrity Supply●One Year Warranty●Fast Delivery

6 ARATED OUTPUT

200 VINPUT CLASS

C4-WIRE ENCODER

OFFICIAL DRIVE DATA

HA-800A configuration and pairing profile

Current class, encoder code and approved FHA-C actuator combinations.

Complete modelHA-800A-6C-200

Driver seriesHA-800A

Command typeI/O command

Rated output current code6 A

Input voltage classAC 200 V

Encoder codeC

Encoder type4-wire wire-saving incremental

Applicable actuator seriesFHA-C

Applicable actuator sizes32 and 40

Motor cable familyEWC-MB**-M08-TN3

Encoder cable familyEWC-E**-B04-3M14

Documented cable lengths3 m, 5 m or 10 m

Default encoder monitor pulses1

Supported supply family200 V HA-800A configuration

SERVO COMMAND PATH

How I/O commands become actuator motion

Keep command wiring, power delivery and incremental feedback matched.

PROCESS STAGE 01

RECEIVE COMMAND

The I/O-command interface accepts the configured position, speed or control signals from the machine controller.

PROCESS STAGE 02

DRIVE ACTUATOR

The 200 V power stage supplies the matched FHA-C size 32 or 40 actuator within the 6 A driver class.

PROCESS STAGE 03

CLOSE LOOP

The four-wire wire-saving incremental encoder returns the feedback required for controlled servo operation.

AXIS FIT

FHA-C precision rotary axes using the documented incremental encoder and compatible reduction configuration.

COMMISSIONING GATE

Verify actuator size, ratio, driver defaults, motor cable, encoder cable and protective grounding before motion.

PURCHASING FAQ

Frequently Asked Questions from Buyers

Make sourcing and migration decisions with confidence.

What does the 6C-200 configuration identify on Harmonic Drive HA-800A-6C-200?

The 6 code identifies the 6 A rated-output class, C identifies the four-wire wire-saving incremental encoder interface and 200 identifies the 200 V supply class.

Which FHA-C actuator sizes are documented for Harmonic Drive HA-800A-6C-200?

The official pairing table assigns HA-800A-6C-200 to FHA-C size 32 and size 40 actuators in the 200 V incremental-feedback group.

Which extension cables match Harmonic Drive HA-800A-6C-200?

Use the EWC-MB**-M08-TN3 motor-cable family and EWC-E**-B04-3M14 encoder-cable family, selecting the documented 3 m, 5 m or 10 m length code.

Can Harmonic Drive HA-800A-6C-200 run an FHA-C actuator with an absolute encoder?

No direct interchange should be assumed. The C driver suffix is for four-wire incremental feedback; the absolute-encoder configuration uses a different suffix and cable arrangement.

How should the supply status of Harmonic Drive HA-800A-6C-200 be checked for an installed machine?

Request a dated availability review and compare the driver label, actuator size, encoder type, reduction ratio, cable codes and stored parameter requirements.

What material is useful for a Harmonic Drive HA-800A-6C-200 quotation and manual request?

Send photos of both driver and actuator labels, the actuator ratio, cable lengths, command method, alarm history, quantity, destination and delivery target.
