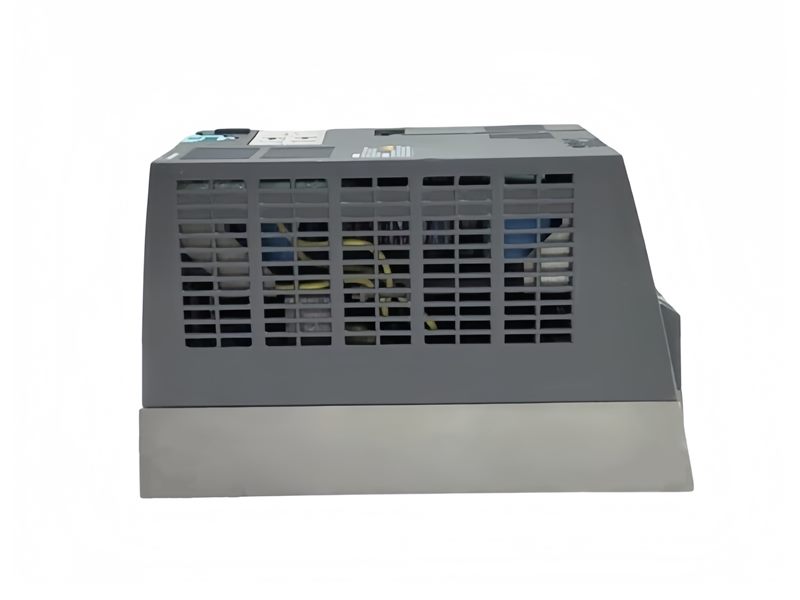

6SL3224-0BE22-2AA0 Siemens drive product view 1

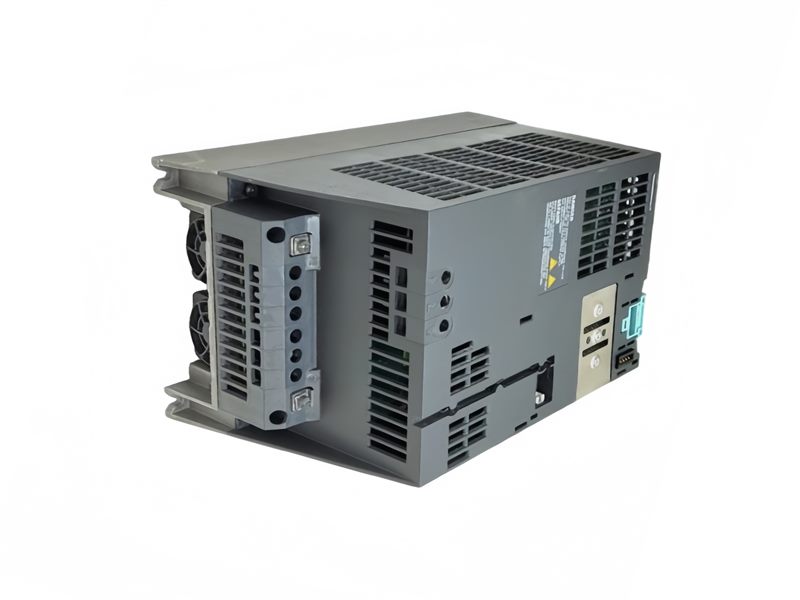

6SL3224-0BE22-2AA0 Siemens drive product view 2

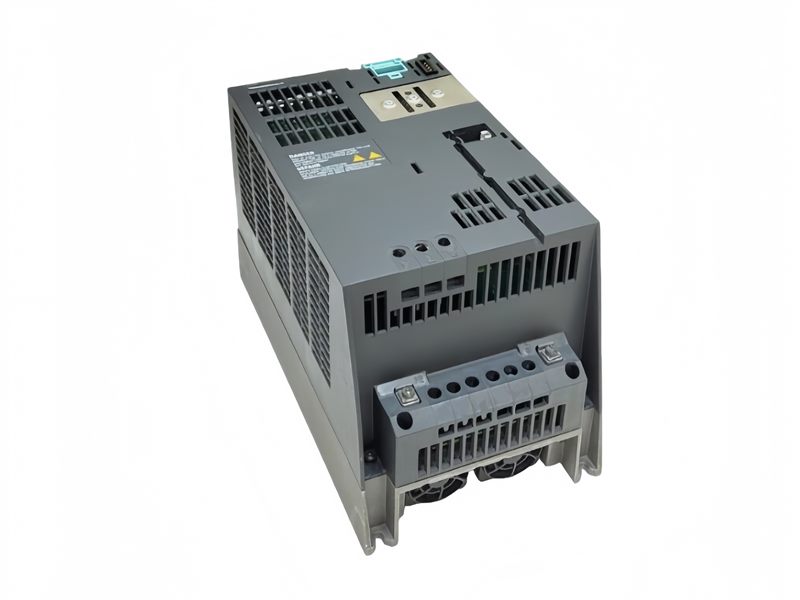

6SL3224-0BE22-2AA0 Siemens drive product view 3

Siemens 6SL3224-0BE22-2AA0 SINAMICS G120 PM240 Power Module 2.2 kW

Siemens · Drive Technology
6SL3224-0BE22-2AA0
SINAMICS G120 PM240 Power Module
FSB · IP20 · integrated braking chopper
Replacement brief
A 2.2 kW power module with integrated Class A filtering.
For quotation, send the complete order number, motor load, installed Control Unit, cabinet photo and destination. Confirm the 0BE22-2AA0 suffix, Class A filter and high-overload duty.
ORDER
1 piece MOQ
STATUS
Siemens spare part
RESPONSE
Within 1 hour
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3224-0BE22-2AA0
Country of Origin Great Britain
Lead Time 2-3 DAYS
After-Sales Support For after-sales service support, please contact May
HS Code / Commodity code 85044085
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01 · Compact overload stage
2.2 kW.
Filtered PM240.
G120 drive power.
6SL3224-0BE22-2AA0 is a SINAMICS G120 PM240 Power Module for 3-phase 380–480 V systems. It provides 2.2 kW high-overload duty in an FSB, IP20 format with an integrated Class A filter and braking chopper.
LINE
INPUT
3AC 380–480 V
+10/−10%, 47–63 Hz
HIGH-OVERLOAD
2.2 kW
200% for 3 s
OVERLOAD PROFILE
150% for 57 s
100% for 240 s
FRAME / PROTECTION
FSB
IP20 · internal air
Lifecycle note: Siemens lists this exact article as a spare part, with product cancellation effective 1 October 2019. Full-suffix verification is essential.
INPUT CURRENT
7.6 A
OUTPUT CURRENT
5.9 A
INPUT FREQUENCY
47–63 Hz
POWER LOSS
0.139 kW
COOLING AIR
0.024 m³/s
DIMENSIONS (H×W×D)
270 × 153 × 165 mm
AMBIENT (HIGH OVERLOAD)
−10…+50 °C
NET WEIGHT
4.0 kg
02 · Braking-and-overload setup
Integrate the 2.2 kW PM240 around its braking and overload functions.
Four checks for the filtered FSB module and its external G120 controls.
01
Confirm the 0BE22-2AA0 build
Verify the exact FSB article with integrated Class A filter and integrated braking chopper.
02
Apply the high-overload sequence
Match the motor cycle to the stated 200%, 150% and 100% time intervals shown in the product data.
03
Keep the IP20 cooling space
Allow for the listed FSB dimensions, internal-air path and cooling-air requirement inside the enclosure.
04
Match the external G120 controls
Confirm the separate Control Unit and BOP arrangement while retaining the module's integrated braking function.
03 · G120 interface FAQ
Questions for the compact PM240 article.
Three checks covering filter, overload and braking.
01
Does this PM240 include a Class A filter?
Yes. 6SL3224-0BE22-2AA0 is specified with an integrated Class A filter and an integrated braking chopper.
02
What overload sequence is stated for the 2.2 kW module?
Use the displayed high-overload profile: 200% for 3 seconds, 150% for 57 seconds and 100% for 240 seconds.
03
What must be verified around the braking chopper?
Confirm the braking resistor arrangement, separate G120 Control Unit and BOP, FSB installation space, IP20 enclosure and cooling conditions.
