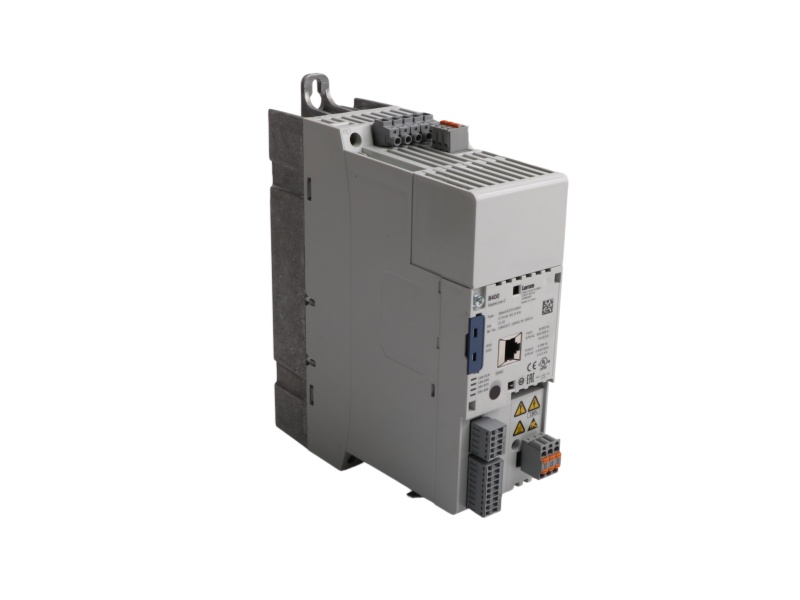

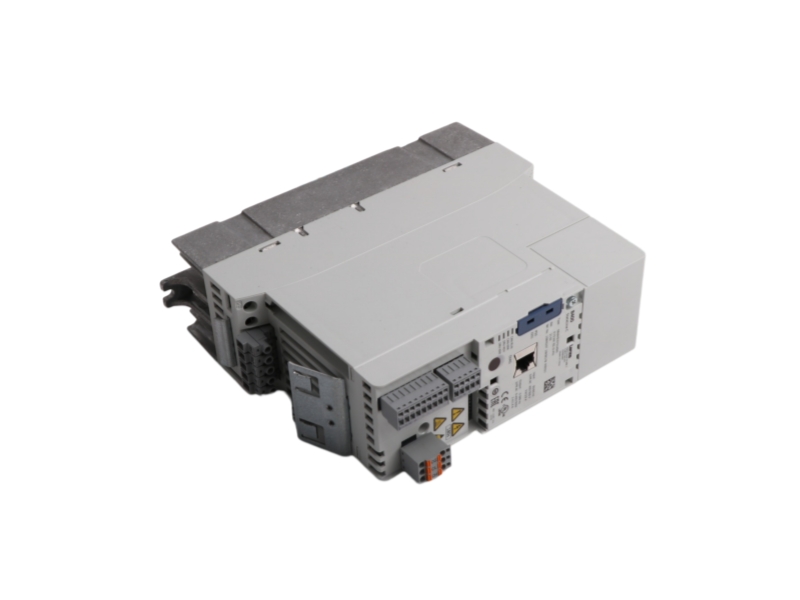

Name: Lenze E84AVSCE7514SX0 8400 StateLine C Frequency Inverter
Availability: InStock

Lenze E84AVSCE7514SX0 8400 StateLine C Frequency Inverter

LENZE / 8400 STATELINE C

E84AVSCE7514SX0

Lenze E84AVSCE7514SX0 is a 0.75 kW 8400 StateLine C inverter for speed control in 400 V-class industrial machine drives.

Integrity Supply●One Year Warranty●Fast Delivery

0.75 kWDEVICE POWER

400 VDEVICE CLASS

CANopenONBOARD BUS

OFFICIAL DRIVE DATA

StateLine C power and control profile

Device-dependent Lenze settings for the 7514 power section and control platform.

Complete typeE84AVSCE7514SX0

Product lineInverter Drives 8400 StateLine C

Power section identification7514

Device voltage class400 V device

Device power setting0.75 kW

Default motor rated voltage400 V

Default motor rated current1.9 A

Default maximum motor current4.2 A

Default V/f base frequency50 Hz

Default motor rated frequency50 Hz

SLVC speed-controller integral time100 ms

SLVC torque-controller proportional gain1.25

Current-controller proportional gain44.9 V/A

Current-controller integral time2.39 ms

Default brake-resistor value390 ohm

Default brake-resistor rated power100 W

Default brake-resistor thermal capacity15 kWs

Onboard communicationCANopen

External control supply24 VDC

Maximum control-card current at 24EApproximately 0.6 A

Communication-module loadMaximum 3.5 W

Keypad current allocationApproximately 75 mA

Digital-output current allocation50 mA

Auxiliary 24I current allocation50 mA

DRIVE CONTROL PATH

How the StateLine controller builds motor output

Keep reference values, motor control and machine communication synchronized.

CONTROL STAGE 01

COMMAND INPUT

Speed references and logic enter through the configured terminals, CANopen data path or installed communication option.

CONTROL STAGE 02

MOTOR CONTROL

V/f or sensorless vector control uses the stored motor data and current limits to produce the requested drive output.

CONTROL STAGE 03

STATUS RETURN

Operating state, warnings and drive-ready information return through the configured I/O and communication words.

MACHINE FIT

Variable-speed machinery using the 0.75 kW 400 V StateLine C power section and the documented control architecture.

COMMISSIONING GATE

Restore the verified parameter set, then validate motor rotation, current limits, braking and bus control before production.

PURCHASING FAQ

Frequently Asked Questions from Buyers

Make sourcing and migration decisions with confidence.

What does the 7514 power code identify in Lenze E84AVSCE7514SX0?

Lenze's device-dependent settings identify 7514 as the 0.75 kW power section in the 400 V 8400 range.

How can Lenze E84AVSCE7514SX0 exchange commands with a machine controller?

The 8400 StateLine C platform includes CANopen onboard and can use configured terminals or an installed communication module for command and status exchange.

Which motor-control methods are relevant when commissioning Lenze E84AVSCE7514SX0?

The StateLine platform supports V/f control and sensorless vector control. Select the method that matches the motor data and machine duty, then verify current limits and rotation.

How does Lenze E84AVSCE7514SX0 manage regenerative braking when no brake resistor is fitted?

The 8400 StateLine provides DC-bus limiting functions that can restrict regenerative current or pause the ramp generator; the resulting braking time must be validated for the load.

What must be retained when replacing Lenze E84AVSCE7514SX0 in an existing machine?

Keep a verified parameter backup and compare the full type code, firmware, memory module, CANopen mapping, motor data and braking arrangement before changeover.

Which records should accompany an availability or quotation request for Lenze E84AVSCE7514SX0?

Provide clear nameplate and connector photos, firmware and memory-module details, motor data, communication option, quantity, destination and required delivery date.
