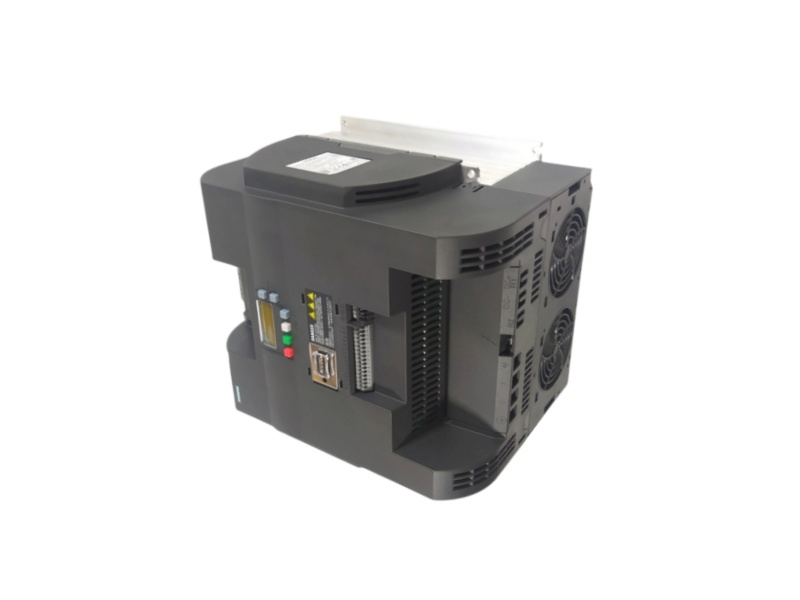

Siemens 6SL3210-5BE31-8CV0 SINAMICS V20 front view

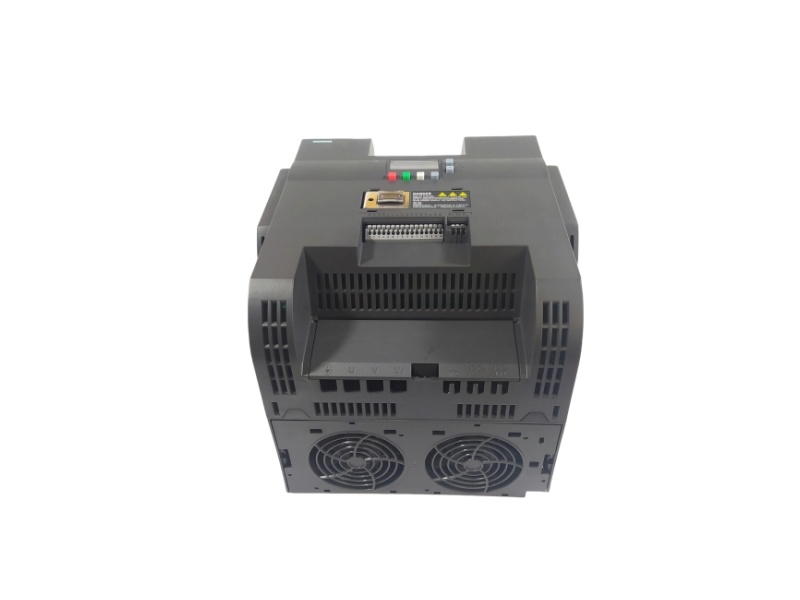

Siemens 6SL3210-5BE31-8CV0 inverter detail
SINAMICS V20 6SL3210-5BE31-8CV0 product image

Siemens 6SL3210-5BE31-8CV0 SINAMICS V20 Variable Frequency Drive

SIEMENS SINAMICS V20

6SL3210-5BE31-8CV0

Siemens 6SL3210-5BE31-8CV0 is a SINAMICS V20 three-phase inverter for 400/480 V motor systems, with separate low- and high-overload ratings, integrated braking and serial communication.

22 kWLow overload
18.5 kWHigh overload
45 ARated current
IP20Protection
+Integrity Supply+One Year Warranty+Fast Delivery
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3210-5BE31-8CV0
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code 85044095
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
OFFICIAL INVERTER DATA

SINAMICS V20 power, overload and interface data

Verified Siemens technical data.

Product familySINAMICS V20
Input phasesThree-phase AC
Input voltage380 to 480 V AC, -15% / +10%
Input frequency47 to 63 Hz
Output phasesThree-phase AC
IEC rated output voltage400 V
NEC rated output voltage480 V
Low-overload power22 kW / 30 HP
High-overload power18.5 kW / 25 HP
Rated output current45 A
Low-overload current45 A IEC / 40 A NEC
High-overload current38 A IEC / 34 A NEC
Pulse frequency4 kHz
Output frequency0 to 550 Hz
Low-overload capability110% for 60 s in a 300 s cycle
High-overload capability150% for 60 s in a 300 s cycle
Efficiency98%
Displacement power factor0.95
Integrated EMC filterClass A
Braking chopperIntegrated
CommunicationUSS and Modbus RTU
Digital inputs4
Analog inputs2, also usable as additional digital inputs
Analog output1
Relay output1
Transistor output1
CoolingExternal fan
Maximum altitude without derating1,000 m
Operating temperature-10 to 60°C, derating from 40°C
Storage temperature-40 to 70°C
Shielded motor cableMaximum 50 m
Unshielded motor cableMaximum 100 m
Mounting optionsWall, through-hole or side-by-side
Degree of protectionIP20 / UL open type
Frame sizeFSE
Dimensions245 x 264.5 x 209 mm
Net weight6.79 kg
StandardsEN 61800-5-1, EN 60204-1 and EN 61800-3
02
MOTOR CONTROL WORKFLOW

Variable-speed path from mains to motor process

Efficient drive commissioning.

01

Choose load class

Select the overload profile that matches the motor and mechanical duty.

02

Install

Apply the approved mounting, cooling, grounding and cable-routing requirements.

03

Commission

Enter verified motor values and configure ramps, control mode and process commands.

04

Integrate

Connect local I/O or the supported serial protocol to the machine-control architecture.



Pumps and fans

Energy-conscious variable-speed operation for continuous-flow equipment.



Conveying machinery

Adjustable acceleration and speed for material-handling systems.



General machine drives

Compact inverter control where the verified load class and environment match.

03
PRODUCT-SPECIFIC GUIDE

6SL3210-5BE31-8CV0 questions answered

V20 selection and replacement.

Q

When should low overload or high overload be selected for Siemens 6SL3210-5BE31-8CV0?

Choose from the actual torque profile and overload duration: variable-torque duties may fit low overload, while demanding starts or cyclic loads can require the high-overload rating.

Q

Which mounting arrangements are supported by Siemens 6SL3210-5BE31-8CV0?

The official data lists wall, through-hole and side-by-side installation; apply the specified clearances, derating and cooling rules for the chosen arrangement.

Q

How can Siemens 6SL3210-5BE31-8CV0 exchange commands with a controller?

It supports local digital and analog I/O plus USS or Modbus RTU serial communication when the control project and wiring are configured accordingly.

Q

What cable planning affects EMC performance of Siemens 6SL3210-5BE31-8CV0?

Use the approved grounding and shield termination method, observe the official motor-cable limits and verify whether the installation category needs additional EMC measures.

Q

What must be transferred when replacing Siemens 6SL3210-5BE31-8CV0?

Record motor data, overload class, control mode, I/O functions, serial settings, ramps, limits and braking parameters before commissioning the replacement.

Q

How are manuals, supply and pricing requested for Siemens 6SL3210-5BE31-8CV0?

Provide the complete MLFB, nameplate, motor and load data, existing parameter backup, required condition, quantity and destination for a matched documentation and quotation package.

04
PURCHASING SUPPORT

Why choose us

Quality sourcing and fast support.

01

Thousands of suppliers and a wide range of products allow you to experience a one-stop shop.

02

The highest quality product.

03

Most products have a warranty period of up to one year, and any quality issues will be refunded at our expense. Each item undergoes rigorous testing before delivery.

04

Our sales personnel provide you with over 10 hours of service and promptly respond to your inquiries.

05

Quickly deliver all products within 1-3 days after placing an order. Most goods will be delivered to you in a timely manner through DHL's fastest service.

06

Good packaging ensures transportation safety and greatly saves transportation costs.

05
BUILT FOR LONG-TERM SUPPLY

Our Company History

Growth and customer commitment.

2005

The Beginning

Company was founded in Xiamen, Fujian, China, in 2005 with a team of only four people. At that time, we mainly served selected European and North American markets, supplying commonly requested industrial automation products from Siemens, Allen-Bradley and Bently Nevada. Although the business was still developing and we completed relatively few orders, this period helped us build essential product knowledge and international trade experience.

2017

A Period of Growth

By 2017, our team had grown to approximately 30 people, and we had established a warehouse for in-stock automation components. Our business expanded across Europe, North America and Southeast Asia, while our product range grew from popular models to scarce and discontinued industrial automation parts. As our product knowledge and service experience increased, we completed nearly 20 orders per month on average.

TODAY

Serving Customers Worldwide

Today, Company serves customers worldwide with a professional team of approximately 60 people. Our warehouse holds a broad selection of industrial automation components, including popular products, hard-to-find parts and discontinued models. We now complete more than 30 orders per month, with an average monthly transaction value of approximately USD 3 million. We have established long-term partnerships with nearly 30 customers from different countries and welcomed almost 40 international customers to visit our company.

Our commitment

Since our company was founded, we have served every customer with sincerity and professionalism. Our prices may not always be the lowest, but we earn long-term trust through quality products, dependable after-sales support, honest condition reporting, timely communication and responsible delivery. Our goal is to build lasting partnerships rather than pursue one-off transactions.

06
HARD-TO-FIND INVENTORY

Automation parts worth checking

Maintenance and retrofit sourcing.

01ADC8220/22
02Sal31.00T10
03LF1B-NC3P-2THWW2-1M
04251402-AP
05EJA110A
06XEV22D-1P2CO
07DLAF8000
08TV-IP612P
09TSXCFY21
10719-DC-RC
11Tb521-eth
12F124x04
13A970GOT-LBA
14ROS3001
15520BOD01
16PSM700
17SB401-10-S1
18PS-10-1CU
19D-78120
20UBT2000
21TU830V1
22PAC4200
232TMA010020W00001
24BK4020
25DO840
26MTN648493
27BN5930.48
28RIA141X-EA
29TM3TI4DG
30440R-G23215
31APL31-0B9
32972LX
33QAA25
34LS3408-ER20155R
35ADV551-32DO
36DCJ4501-01PLF
371SBP260181R1001
3808-358-013-R
39TZ350
PRODUCT ENQUIRYReview your 6SL3210-5BE31-8CV0 requirement
SALES MANAGERMay

Related Products

ACS355-03E-23A1-4
ABB ACS355-03E-23A1-4 Machinery drive

ABB / ACS355 ACS355-03E-23A1-4 MACHINERY DRIVE ACS355-03E-23A1-4 Compact drive for machine builders ABB machinery drive for dependable speed control and machine integration. 400 VAC7.5 kW3-PHASE Engineering quote Inquire Now Share the motor data, enclosure needs, quantity and destination for a precise quotation. ab@mooreplc.com  ↗ Brand New Original One Year Warranty Fast Delivery

Details
Allen-Bradley 20F11NC104JA0NNNNN PowerFlex 753 Drive
Allen-Bradley 20F11NC104JA0NNNNN PowerFlex 753 Drive

ALLEN-BRADLEY / POWERFLEX 753 20F11NC104JA0NNNNN POWERFLEX 753 DRIVE 20F11NC104JA0NNNNN PowerFlex 753 motor drive, air-cooled PowerFlex 753 configuration for 400 VAC three-phase motor control. 400 VAC104 APF753 Engineering quote Inquire Now Share motor data, braking option, quantity and destination. ab@mooreplc.com  ↗ Brand New Original One Year Warranty Fast Delivery

Details
Allen-Bradley 20BD034A0AYNANC1 Variable Frequency AC Drive front view
Allen-Bradley 20BD034A0AYNANC1 PowerFlex 700 AC Drive

ALLEN-BRADLEY POWERFLEX 700OFFICIAL DATA 20BD034A0AYNANC1 Allen-Bradley 20BD034A0AYNANC1 is a 480 V three-phase PowerFlex 700 drive rated 34 A, with IP20 Type 1 enclosure, brake IGBT, vector 24 V I/O and encoder feedback. Brand New OriginalOne Year WarrantyFast Delivery 480 V / FRAME 2 Vector motor control with encoder feedback 34 AOUTPUT 25 hpNORMAL DUTY 20 hpHEAVY DUTY 480 VINPUT CLASS CONTROL CONFIGVector 24 V I/O + encoder feedback PRODUCT ENQUIRYInquire Nowab@mooreplc.com

Details
Mitsubishi Electric FR-F840-01800-2-60 Variable Frequency Inverter front view
Mitsubishi FR-F840-01800-2-60 FREQROL-F800 Inverter

MITSUBISHI FREQROL-F800OFFICIAL DATA FR-F840-01800-2-60 Mitsubishi FR-F840-01800-2-60 is a 400 V-class FREQROL-F800 RS-485 inverter for fan and pump duty, rated 180 A SLD or 144 A LD. Brand New Original One Year Warranty Fast Delivery 400 V / RS-485 Energy-focused fan and pump control 180 ASLD CURRENT 144 ALD CURRENT 90 kWSLD MOTOR 75 kWLD MOTOR REQUIRED REACTORFR-HEL-H75K for 75 kW LD selection PRODUCT ENQUIRYInquire Nowab@mooreplc.com

Details

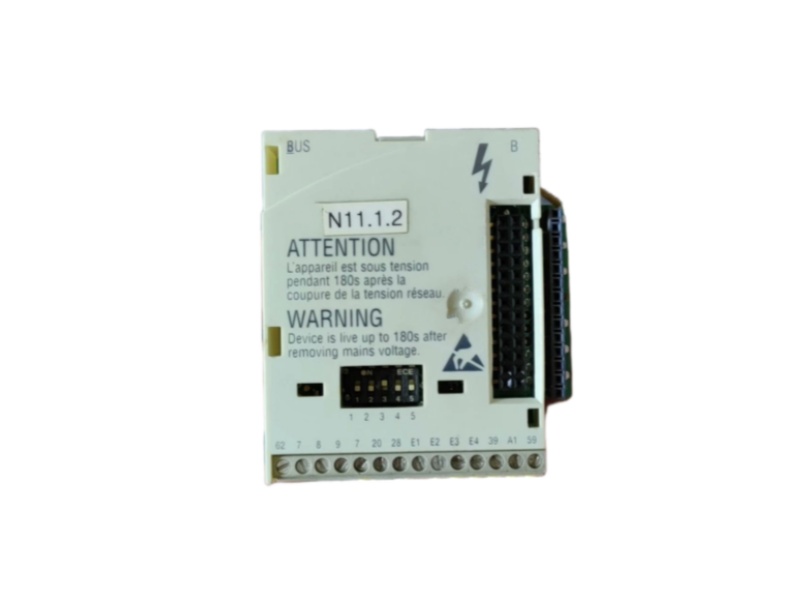

E82ZAFB201 front view
Lenze E82ZAFB201 8200 motec Bus I/O Function Module

LENZE / BUS I/O FUNCTION MODULEOFFICIAL DATA E82ZAFB201 Lenze E82ZAFB201 is an I/O function module that adds analog and digital signals to 8200 motec drives for reference, enable, and status control. ✓Integrity Supply ✓Worldwide Shipping 01analog input 01analog output 04digital inputs 01digital output PRODUCT ENQUIRYInquire Now↗

Details

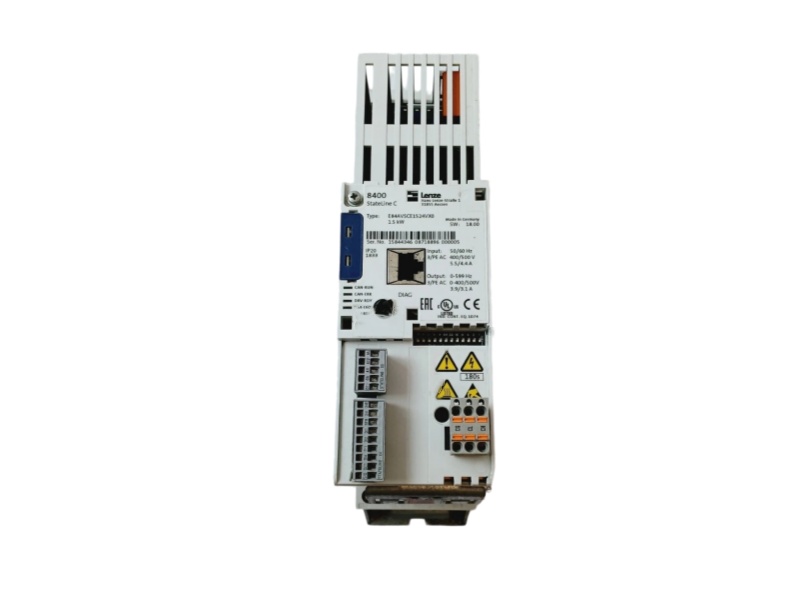

Lenze E84AVSCE1524VX0 Frequency Inverter product view
