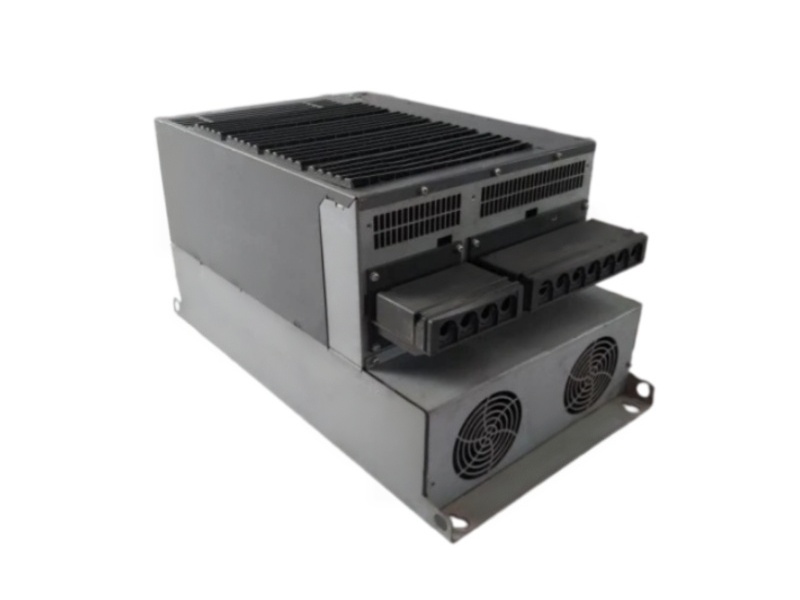

6SL3210-1SE31-8UA0 Siemens drive product view 1

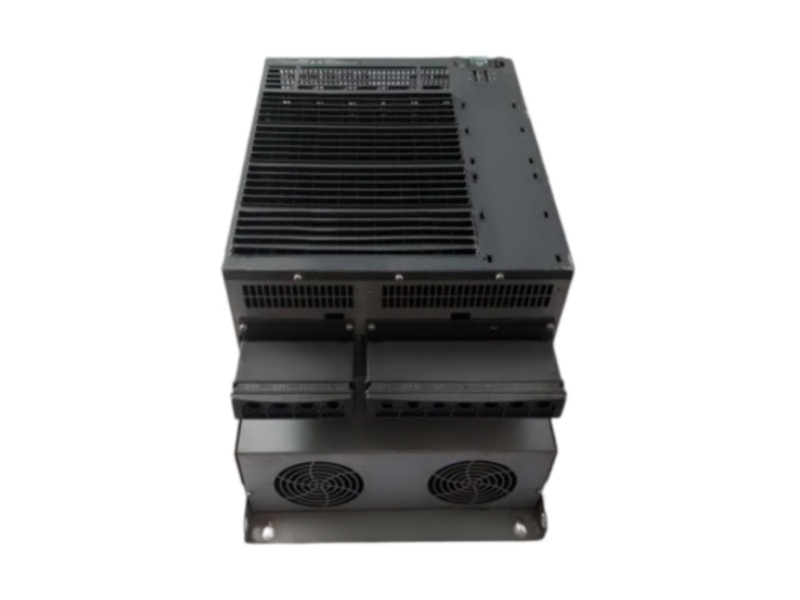

6SL3210-1SE31-8UA0 Siemens drive product view 2

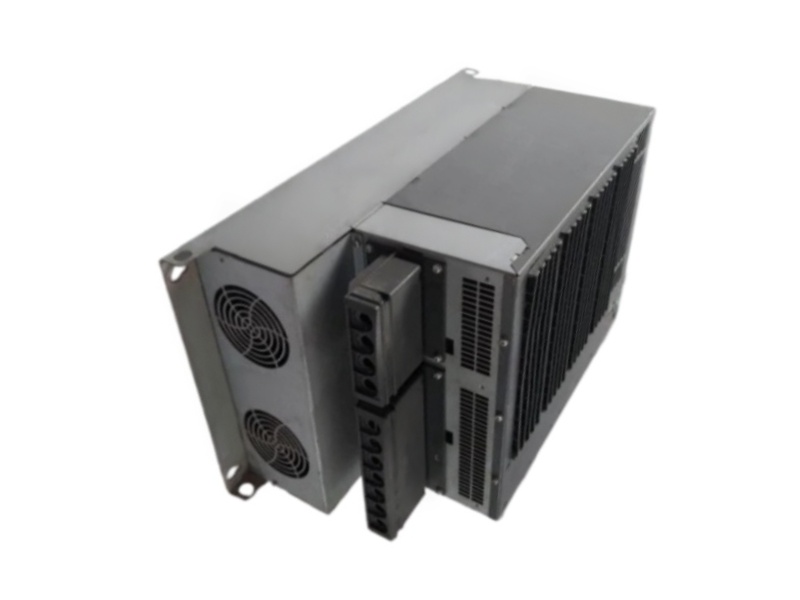

6SL3210-1SE31-8UA0 Siemens drive product view 3

Siemens 6SL3210-1SE31-8UA0 SINAMICS S120 PM340 Power Module 90 kW

Siemens · Drive Technology
6SL3210-1SE31-8UA0
SINAMICS S120 PM340 Power Module
Blocksize FSF · internal air cooling
Replacement brief
A 90 kW drive module with an exact-order boundary.
For quotation, send the complete order number, motor rating, installed Control Unit, cabinet photo and destination. The UA0 suffix must be verified before any alternative is considered.
ORDER
1 piece MOQ
STATUS
Siemens spare part
RESPONSE
Within 1 hour
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3210-1SE31-8UA0
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales service support, please contact May
HS Code / Commodity code 85044086
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01 · Unfiltered retrofit stage
90 kW.
External EMC design.
FSF cabinet power.
6SL3210-1SE31-8UA0 is a SINAMICS S120 PM340 blocksize Power Module for 3-phase 380–480 V systems. It delivers 90 kW at 178 A in an FSF, internally cooled format.
LINE
INPUT
3AC 380–480 V
±10%, 50/60 Hz
RATED OUTPUT
178 A
90 kW at rated current
HEAVY-DUTY BASIS
155 A
75 kW base-load rating
FRAME / COOLING
FSF
Internal air cooling
Lifecycle note: Siemens lists this exact article as a spare part, with product cancellation effective 1 October 2019. Full-suffix verification is essential.
S6 CURRENT (40%)
231 A
PEAK CURRENT
290 A
PULSE FREQUENCY
4 kHz
POWER LOSS
2.31 kW
COOLING AIR
0.117 m³/s
SOUND AT 1 M
65 dB(A)
24 V CONTROL SUPPLY
1.0 A
NET WEIGHT
50.7 kg
02 · Cabinet heat-load check
Review the thermal impact of the unfiltered 90 kW module.
Four checks that connect loss data, airflow and the real cabinet environment.
01
Identify the 8UA0 replacement
Retain the no-integral-filter configuration by specifying the full order number on the quotation and purchase order.
02
Account for module losses
Use the displayed power-loss value in the cabinet heat calculation together with neighboring equipment.
03
Confirm the cooling-air volume
Check the required internal-air path, inlet temperature and cabinet exhaust capacity for the FSF frame.
04
Validate the 90 kW duty
Compare rated, heavy-duty, S6 and peak-current data with the motor and process cycle.
03 · Retrofit-data FAQ
Questions for the 90 kW unfiltered article.
Three records needed for a high-power replacement.
01
Which EMC components remain external with 8UA0?
Because the article has no integrated line filter, verify the cabinet filter, reactor, grounding and screened-cable arrangement.
02
How should the 90 kW cabinet heat load be reviewed?
Combine the listed module power loss and cooling-air requirement with ambient temperature and heat from adjacent devices.
03
What distinguishes 8UA0 on a replacement order?
The full suffix identifies the unfiltered FSF version; include it with motor, Control Unit and cabinet details.
