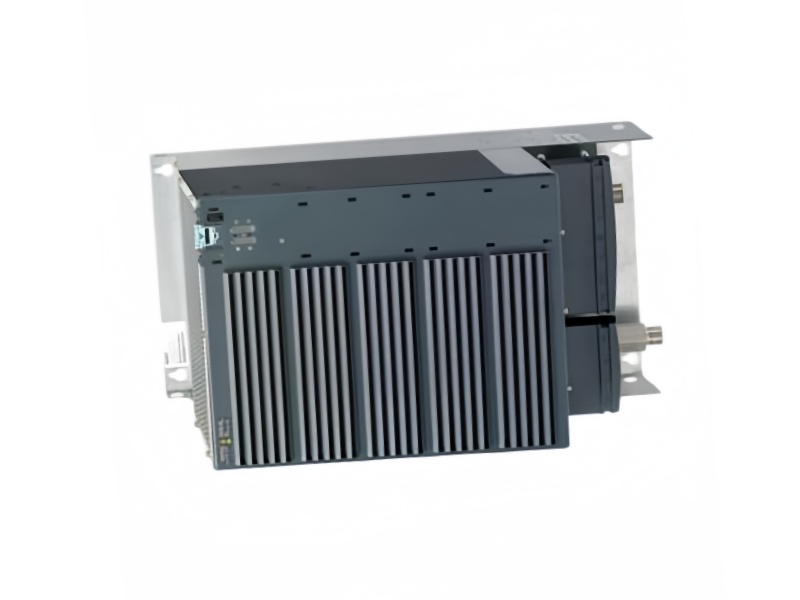

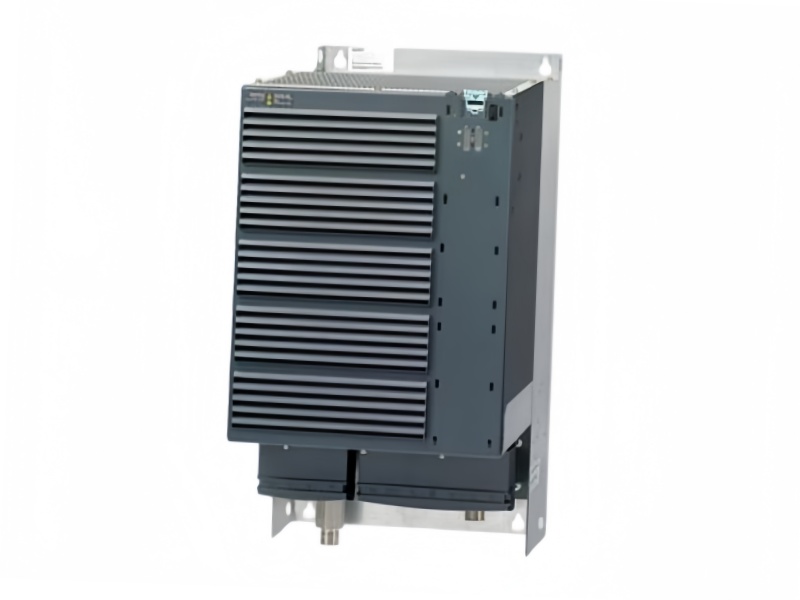

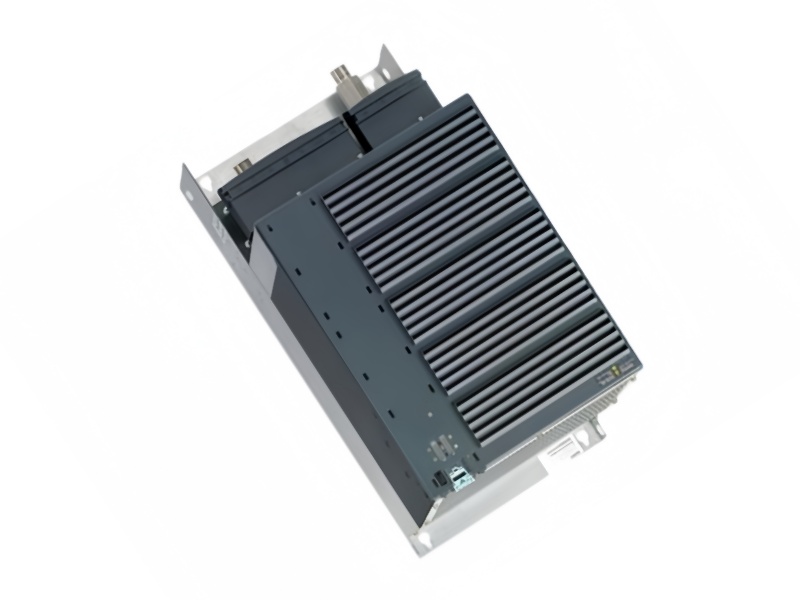

6SL3210-1SE31-5AA0 Siemens drive product view 1
6SL3210-1SE31-5AA0 Siemens drive product view 3
6SL3210-1SE31-5AA0 Siemens drive product view 2

Siemens 6SL3210-1SE31-5AA0 SINAMICS S120 PM340 Power Module 75 kW

Siemens · Drive Technology
6SL3210-1SE31-5AA0
SINAMICS S120 PM340 Power Module
Blocksize FSF · internal air cooling
Replacement brief
A 75 kW drive module with an exact-order boundary.
For quotation, send the complete order number, motor rating, installed Control Unit, cabinet photo and destination. The AA0 suffix must be verified before any alternative is considered.
ORDER
1 piece MOQ
STATUS
Siemens spare part
RESPONSE
Within 1 hour
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3210-1SE31-5AA0
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales service support, please contact May
HS Code / Commodity code 85044086
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01 · Filtered cabinet stage
75 kW.
Class A filtering.
FSF installation.
6SL3210-1SE31-5AA0 is a SINAMICS S120 PM340 blocksize Power Module for 3-phase 380–480 V systems. It delivers 75 kW at 145 A in an FSF, internally cooled format.
LINE
INPUT
3AC 380–480 V
±10%, 50/60 Hz
RATED OUTPUT
145 A
75 kW at rated current
HEAVY-DUTY BASIS
115 A
55 kW base-load rating
FRAME / COOLING
FSF
Internal air cooling
Lifecycle note: Siemens lists this exact article as a spare part, with product cancellation effective 1 October 2019. Full-suffix verification is essential.
S6 CURRENT (40%)
188 A
PEAK CURRENT
220 A
PULSE FREQUENCY
4 kHz
POWER LOSS
1.93 kW
COOLING AIR
0.094 m³/s
SOUND AT 1 M
< 60 dB(A)
24 V CONTROL SUPPLY
1.0 A
NET WEIGHT
66.7 kg
02 · Service-access preparation
Plan handling and maintenance access for the 75 kW filtered module.
Four practical checks for moving an FSF article into an existing cabinet.
01
Authenticate the 5AA0 article
Confirm the full filtered suffix and the exact 75 kW rating before arranging the replacement.
02
Plan the lifting route
Use the displayed net weight and cabinet access dimensions when selecting handling equipment and personnel.
03
Keep service faces reachable
Preserve access to terminals, cooling passages and removable connections after the module is installed.
04
Recheck the installed S120 set
Confirm the Control Unit, reactor, fuses, braking equipment and motor data against the existing system.
03 · Installed-filter FAQ
Questions for the 75 kW AA0 configuration.
Three checks for a filtered FSF replacement.
01
Which current value applies to the rated 75 kW output?
Use the rated-output current shown for this exact article; treat the heavy-duty value as a separate operating basis.
02
What filtering is included in 6SL3210-1SE31-5AA0?
The AA0 article includes the integrated line filter; its 5UA0 partner is the version without that integrated filter.
03
Which handling data should be checked for the FSF frame?
Review the listed net weight, cabinet access, lifting method and clearances before the old power module is removed.
