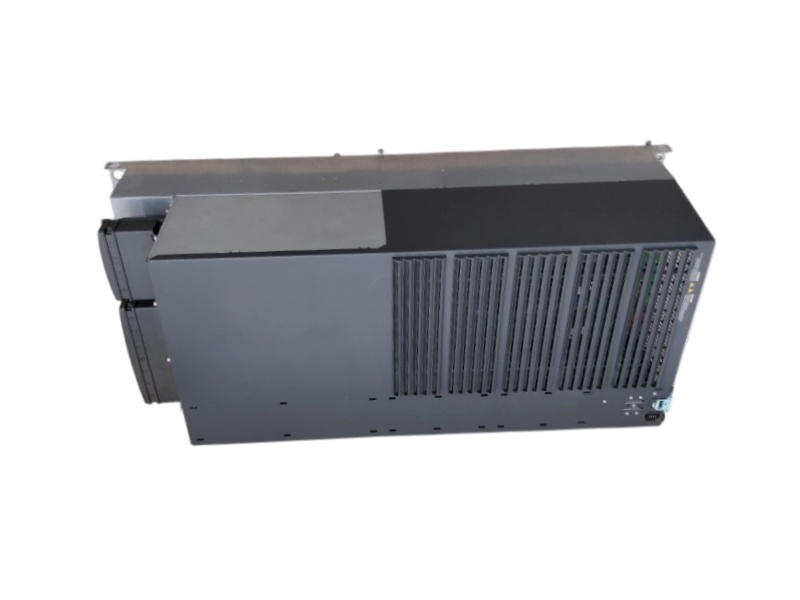

6SL3210-1SE31-1AA0 Siemens drive product view 1

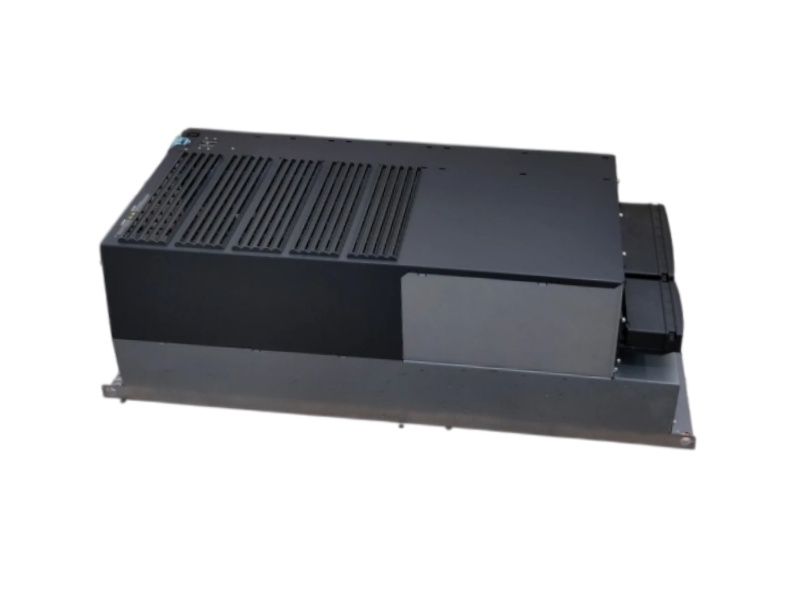

6SL3210-1SE31-1AA0 Siemens drive product view 2

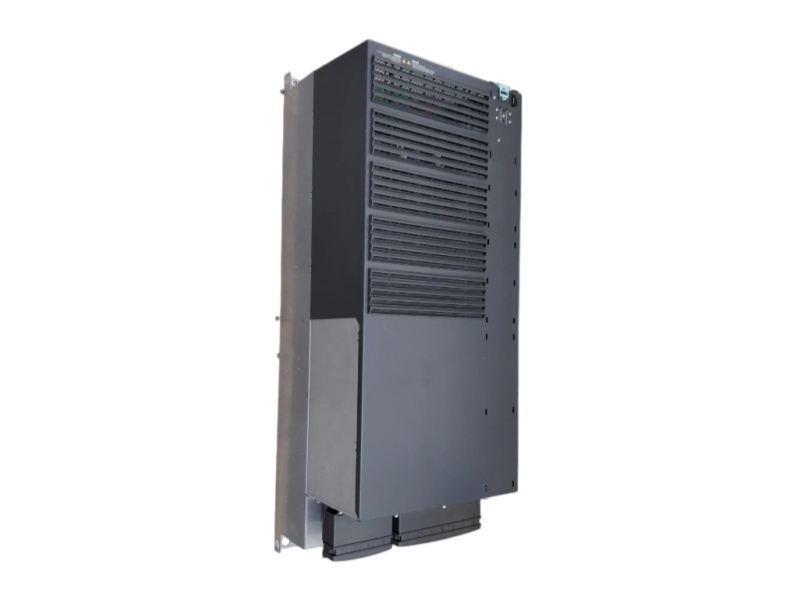

6SL3210-1SE31-1AA0 Siemens drive product view 3

Siemens 6SL3210-1SE31-1AA0 SINAMICS S120 PM340 Power Module 55 kW

Siemens · Drive Technology
6SL3210-1SE31-1AA0
SINAMICS S120 PM340 Power Module
Blocksize FSF · internal air cooling
Replacement brief
A 55 kW drive module with an exact-order boundary.
For quotation, send the complete order number, motor rating, installed Control Unit, cabinet photo and destination. The AA0 suffix must be verified before any alternative is considered.
ORDER
1 piece MOQ
STATUS
Siemens spare part
RESPONSE
Within 1 hour
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3210-1SE31-1AA0
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales service support, please contact May
HS Code / Commodity code 85044086
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01 · Filtered duty profile
55 kW.
Filter integrated.
FSF platform.
6SL3210-1SE31-1AA0 is a SINAMICS S120 PM340 blocksize Power Module for 3-phase 380–480 V systems. It delivers 55 kW at 110 A in an FSF, internally cooled format.
LINE
INPUT
3AC 380–480 V
±10%, 50/60 Hz
RATED OUTPUT
110 A
55 kW at rated current
HEAVY-DUTY BASIS
95 A
45 kW base-load rating
FRAME / COOLING
FSF
Internal air cooling
Lifecycle note: Siemens lists this exact article as a spare part, with product cancellation effective 1 October 2019. Full-suffix verification is essential.
S6 CURRENT (40%)
143 A
PEAK CURRENT
180 A
PULSE FREQUENCY
4 kHz
POWER LOSS
1.42 kW
COOLING AIR
0.094 m³/s
SOUND AT 1 M
< 60 dB(A)
24 V CONTROL SUPPLY
1.0 A
NET WEIGHT
66.7 kg
02 · Duty-margin review
Build the 55 kW load margin from the official current values.
Four checks that separate continuous, heavy-duty and short-duration demand.
01
Lock the 55 kW nameplate basis
Start with the exact 1AA0 order number, rated output and integrated-filter configuration.
02
Compare the two duty ratings
Review the displayed rated-current value beside the heavy-duty basis before matching the motor application.
03
Test short-duration demand
Check the listed S6 and peak-current figures against acceleration, cyclic load and overload requirements.
04
Protect the FSF thermal margin
Keep the internal-air path and the documented cooling allowance clear throughout the cabinet.
03 · Rated-current FAQ
Questions for the 55 kW filtered article.
Three current-focused checks before selection.
01
Which load basis should be used for continuous 55 kW service?
Use the rated-output data shown for the exact article, then compare the application separately with the stated heavy-duty basis.
02
Does 6SL3210-1SE31-1AA0 contain its line filter?
Yes. The AA0 suffix identifies the integrated-line-filter version; 1UA0 is the corresponding unfiltered article.
03
What must be reviewed when the motor reaches peak demand?
Compare the stated S6 and peak-current figures with the real acceleration time and cyclic-load profile, not only the nominal motor power.
