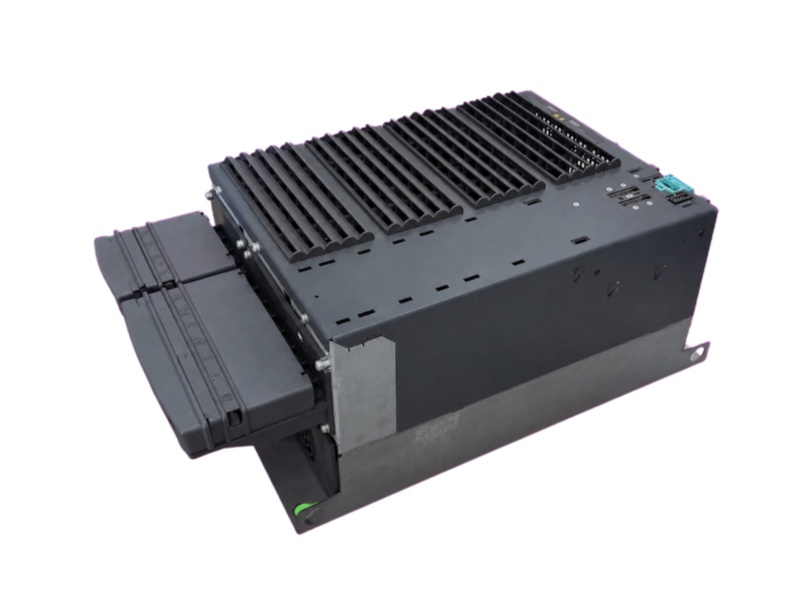

6SL3210-1SE31-0UA0 Siemens drive product view 1

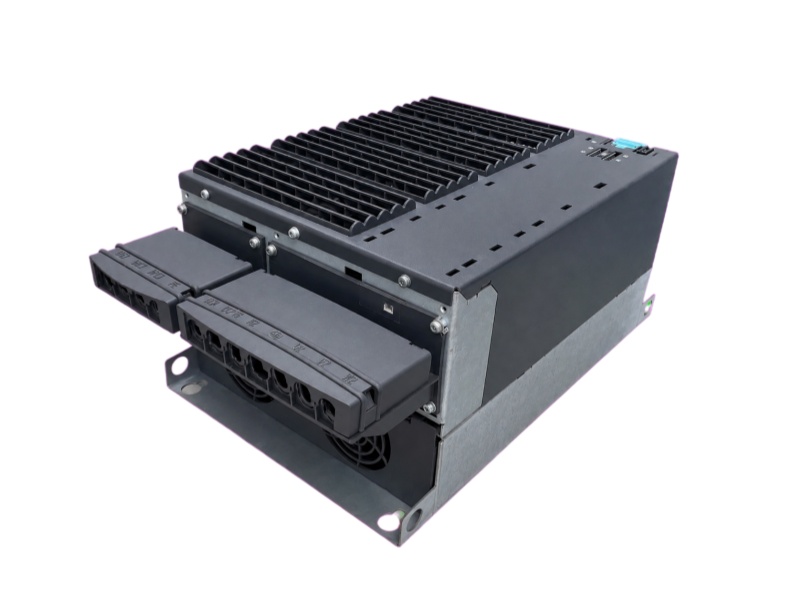

6SL3210-1SE31-0UA0 Siemens drive product view 2

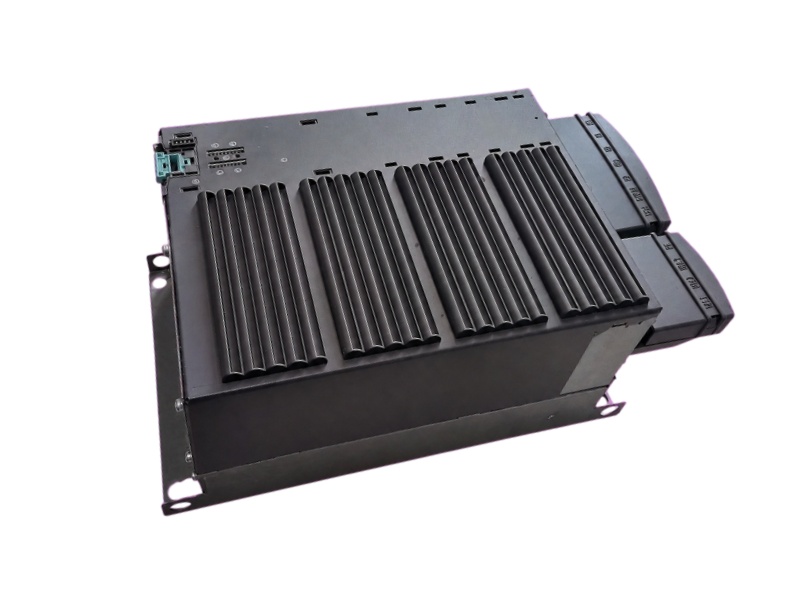

6SL3210-1SE31-0UA0 Siemens drive product view 3

Siemens 6SL3210-1SE31-0UA0 SINAMICS S120 PM340 Power Module 45 kW

Siemens · Drive Technology
6SL3210-1SE31-0UA0
SINAMICS S120 PM340 Power Module
Blocksize FSE · internal air cooling
Replacement brief
A 45 kW drive module with an exact-order boundary.
For quotation, send the complete order number, motor rating, installed Control Unit, cabinet photo and destination. The UA0 suffix must be verified before any alternative is considered.
ORDER
1 piece MOQ
STATUS
Siemens spare part
RESPONSE
Within 1 hour
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3210-1SE31-0UA0
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales service support, please contact May
HS Code / Commodity code 85044086
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01 · Open EMC configuration
45 kW.
Unfiltered input.
FSE cabinet fit.
6SL3210-1SE31-0UA0 is a SINAMICS S120 PM340 blocksize Power Module for 3-phase 380–480 V systems. It delivers 45 kW at 90 A in an FSE, internally cooled format.
LINE
INPUT
3AC 380–480 V
±10%, 50/60 Hz
RATED OUTPUT
90 A
45 kW at rated current
HEAVY-DUTY BASIS
80 A
37 kW base-load rating
FRAME / COOLING
FSE
Internal air cooling
Lifecycle note: Siemens lists this exact article as a spare part, with product cancellation effective 1 October 2019. Full-suffix verification is essential.
S6 CURRENT (40%)
117 A
PEAK CURRENT
150 A
PULSE FREQUENCY
4 kHz
POWER LOSS
1.21 kW
COOLING AIR
0.039 m³/s
SOUND AT 1 M
62 dB(A)
24 V CONTROL SUPPLY
1.0 A
NET WEIGHT
19.8 kg
02 · External EMC planning
Define the cabinet EMC measures before fitting this UA0 module.
A four-point path for an unfiltered 45 kW PM340 installation.
01
Identify the no-filter suffix
The UA0 ending identifies the PM340 version without the integrated line filter; do not exchange it with AA0 without reviewing the EMC design.
02
Document the external filter path
Record the existing filter, reactor, grounding and cable-screen arrangement that supports the cabinet installation.
03
Allow the specified air volume
Preserve the FSE internal-air route and the cooling-air value shown in the product data.
04
Match the 45 kW load curve
Confirm the displayed rated, heavy-duty, S6 and peak-current values against the motor and duty cycle.
03 · Unfiltered-integration FAQ
Questions for the 45 kW UA0 configuration.
Three checks unique to the external EMC arrangement.
01
What does the UA0 suffix change in the cabinet design?
It identifies the version without the integrated line filter, so the installed external EMC components and grounding arrangement must be verified.
02
How should the displayed S6 value be applied?
Use it only with the stated 40% S6 basis and compare it with the motor duty, rated current and peak-current demand.
03
Which cooling condition applies to this FSE article?
The module uses internal air cooling; maintain the airflow and clearances stated for this exact frame.
