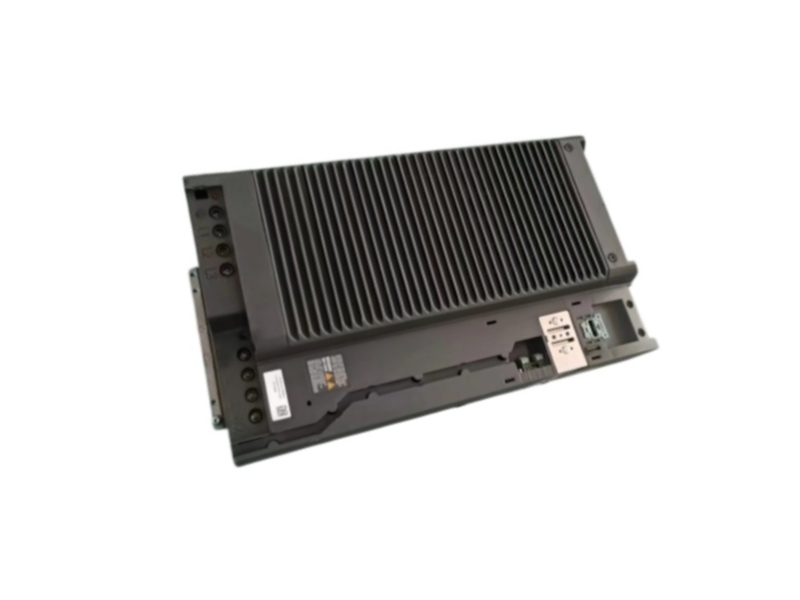

Siemens 6SL3210-1PE31-1UL0 front view

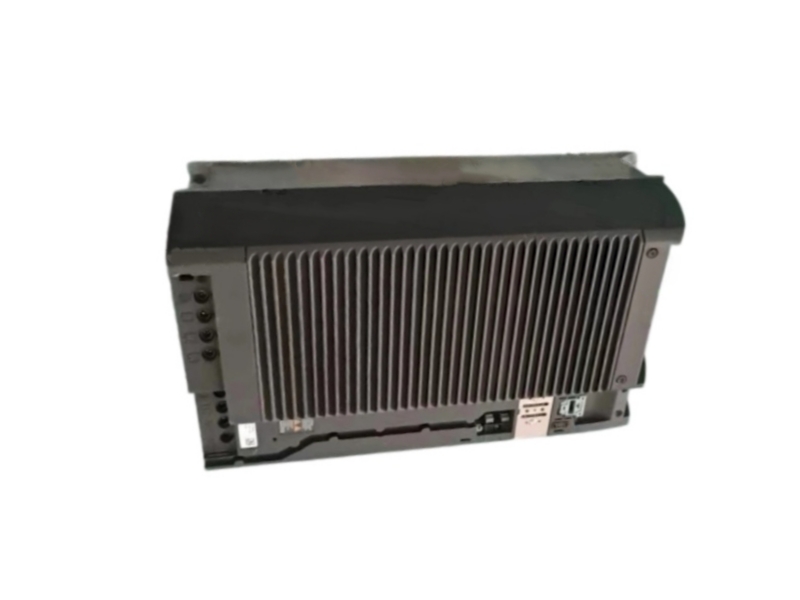

Siemens 6SL3210-1PE31-1UL0 alternate view
Siemens 6SL3210-1PE31-1UL0 product detail个

Siemens 6SL3210-1PE31-1UL0 SINAMICS G120 PM240-2 Power Module

MODULAR DRIVE POWER STAGE
PM240-2FRAME SIZE FSE

6SL3210-1PE31-1UL0

Siemens 6SL3210-1PE31-1UL0 is a 55 kW SINAMICS G120 PM240-2 power module with an integrated braking chopper for industrial motor control.

PRODUCT ENQUIRY

Drive power with controlled braking energy.

Inquire Nowab@mooreplc.com
Brand New Original
One Year Warranty
Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens
Item number 6SL3210-1PE31-1UL0
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code 85044095
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
OFFICIAL TECHNICAL DATA

Power-stage and installation specifications

Official ordering data for mains supply, output rating, enclosure, cooling and mechanical integration.

Supply system3-phase ACFrame sizeFSE
Input voltage380 to 480 V AC, +10% / -20%Cooling air requirement0.083 m³/s
Line frequency47 to 63 HzOperating temperature, LO-20 to 40°C
Rated input current104 AOperating temperature, HO-20 to 50°C
Low-overload power55 kWDimensions (H × W × D)551 × 275 × 237 mm
High-overload power45 kWNet weight26.4 kg
Rated output current110 AMaximum installation altitude1000 m without derating
High-overload base current90 AMinimum braking resistance10 Ω
Maximum output current180 AHigh-overload cycle200% for 3 s, 150% for 57 s and 100% for 240 s
Rated pulse frequency4 kHzLow-overload cycle150% for 3 s, 110% for 57 s and 100% for 240 s
Maximum pulse frequency8 kHzControl unitExcluded from the PM240-2 order scope
Integrated braking chopperIncludedOperator panelNot supplied with the power module
Line filterNot includedApproved conductorsCopper
Degree of protectionIP20Minimum firmware versionV4.7 HF8
02FUNCTION PATH

How 6SL3210-1PE31-1UL0 powers a variable-speed axis

The modular power stage converts the plant supply into controlled motor energy and manages regenerative braking through the matched G120 architecture.

01

Accept

The three-phase input enters the unfiltered PM240-2 power circuit within the specified mains range.

02

Convert

The inverter bridge creates the variable-frequency output commanded by the installed Control Unit.

03

Brake

The built-in chopper switches an external resistor when the application returns energy to the DC link.

04

Cool

Forced-air cooling carries converter losses away while the cabinet preserves the documented clearances.

CONVEYOR AND HANDLING DRIVESProvide scalable motor power for material-flow equipment with cyclic acceleration and deceleration.
PUMP AND FAN SYSTEMSPair the module with a suitable Control Unit for demand-based speed control.
REGENERATIVE DECELERATIONUse a correctly sized external resistor where the motion profile produces braking energy.
03BUYER QUESTIONS

FAQ for Siemens 6SL3210-1PE31-1UL0

Configuration and operating decisions
Replacement and compatibility checks
Documentation and quotation support

Direct answers for selection, integration, replacement and sourcing decisions.

Q01

Which Control Unit firmware is approved for Siemens 6SL3210-1PE31-1UL0?

Siemens lists SINAMICS Control Units with firmware V4.7 HF8 or later; confirm the exact CU type and application option set before commissioning.

Q02

What cabinet cooling must be planned for Siemens 6SL3210-1PE31-1UL0?

The installation data specifies forced-air cooling and approximately 0.083 m³/s cooling airflow, with the clearances and ambient limits stated in the PM240-2 hardware manual.

Q03

How is dynamic braking implemented with Siemens 6SL3210-1PE31-1UL0?

The power module includes a braking chopper, but the external braking resistor must be selected for the duty cycle, resistance limit and cable-length requirements.

Q04

Can Siemens 6SL3210-1PE31-1UL0 replace another PM240-2 frame without rewiring?

Not by part number alone. Verify frame size, current rating, mains arrangement, EMC filter, Control Unit, resistor, motor cable and protection devices before substitution.

Q05

What is the current lifecycle position of Siemens 6SL3210-1PE31-1UL0?

Siemens Industry Mall lists the order number as an active product; quotation should still confirm current delivery and the required Control Unit or operator panel.

Q06

Which documents and project details support a Siemens 6SL3210-1PE31-1UL0 quotation?

Request the official PM240-2 data sheet and hardware installation manual, then provide motor nameplate data, load cycle, supply, Control Unit, braking duty, quantity and destination.
