Name: REO REOVIB MFS 268 6A IP20 Frequency Converter For Vibratory Feeders
Availability: InStock

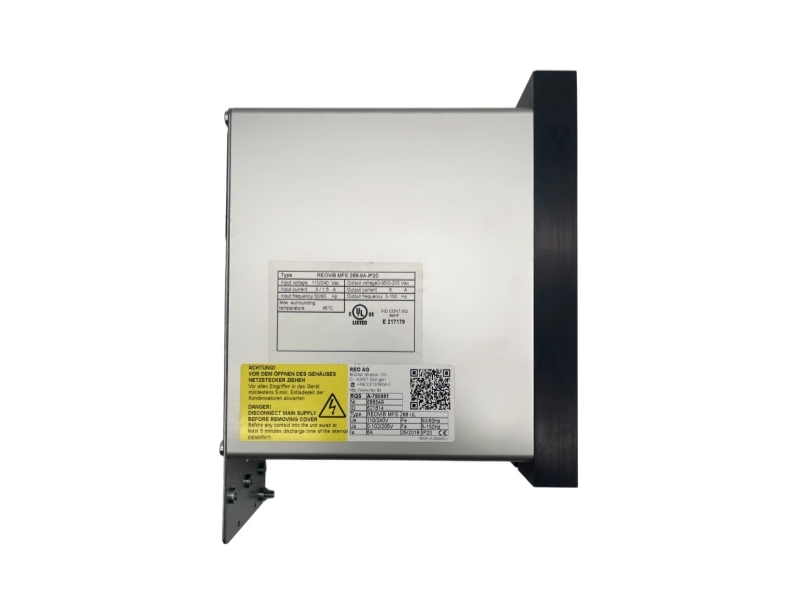

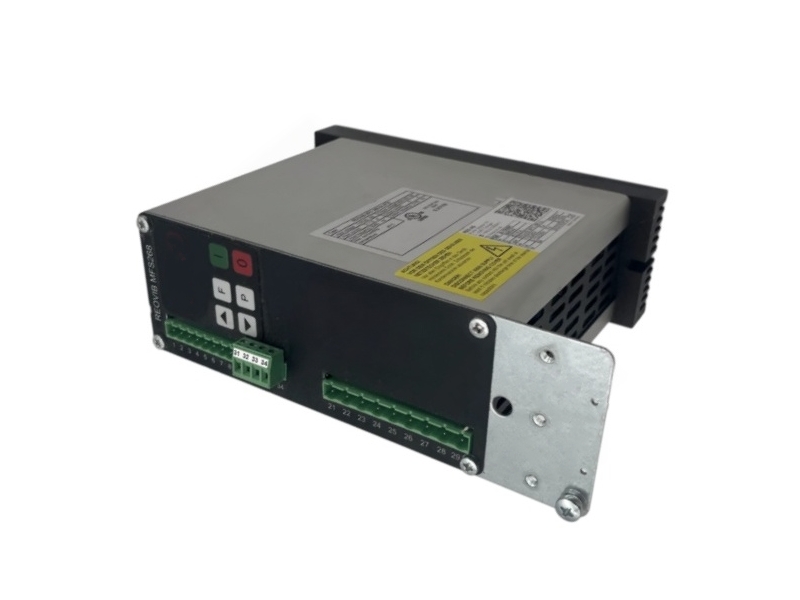

REO REOVIB MFS 268 6A IP20 Frequency Converter For Vibratory Feeders

REOVIB · FEEDER CONTROLREPLACED

268-6A-IP20

REO 268-6A-IP20 is a 6 A, IP20 MFS 268 frequency converter for mains-independent vibratory conveyor control.

OUTPUT CURRENT

6 A

ENCLOSURE

IP20

CONTROL

Integrated display

SELECTION ENVELOPE

Match the converter to the feeder coil, supply and control method as one drive system.

110 / 230 VINPUT

0...205 VOUTPUT

5...150 HzFREQUENCY

IP20ENCLOSURE

ONE YEAR WARRANTY

FAST DELIVERY

WORLDWIDE SHIPPING

INQUIRE NOW

TECHNICAL LEDGER

268-6A-IP20 Technical Parameter Guide.

Electrical limits and adjustment ranges for the exact 6 A, IP20 MFS 268 configuration.

CONVERTER FAMILY

REOVIB MFS 268

RATED OUTPUT CURRENT

6 A

DEGREE OF PROTECTION

IP20

MAINS INPUT

110 / 230 V

SELECTION REVIEW

Treat the feeder and converter as one tuned system.

Confirm coil current, output range, vibration frequency, supply and enclosure before commissioning.

Mains frequency

50 / 60 Hz ±3 Hz

Output voltage

0...100 / 0...205 V

Vibration frequency

5...150 Hz

Extended frequency option

Up to 300 Hz

Setpoint via display

Supported

External voltage setpoint

0...10 V

External current setpoint

0(4)...20 mA

Soft start

0...60 s

Soft stop

0...60 s

Operating temperature

0...45 °C

Control principle

Frequency conversion

Installed interface

Operator keypad / display

Status signal

Relay changeover 250 V / 1 A

Ready signal

Relay changeover 250 V / 1 A

External enable

24 V DC switch

Sensor supply

24 V DC

DEVICE CLASS

Frequency converter

FEEDER TYPE

Vibratory conveyor

CONTROL

Local / external

LIFECYCLE

MFS 368 successor

MANUFACTURER

REO

MATERIAL FLOW

From command signal to controlled feeder vibration.

A functional path through setpoint selection, frequency control and process response.

Independent frequency

The converter separates conveyor vibration from the fixed mains frequency for adjustable feeder behavior.

Flexible setpoint

The operating value can be entered locally or supplied through an external analog command.

Controlled ramping

Adjustable start and stop ramps reduce abrupt mechanical changes in the feeder system.

COILIdentify

CURRENTMatch

FREQUENCYTune

RAMPSet

FLOWVerify

MODEL FAQ

Common buyer questions about 268-6A-IP20.

Concise answers for a more confident purchasing decision.

QUESTION01

How does REO 268-6A-IP20 separate conveyor vibration from mains frequency?

The converter generates an adjustable 5...150 Hz output instead of tying the feeder to the fixed 50 / 60 Hz supply; an extended option can reach 300 Hz where the configured hardware supports it.

QUESTION02

Can REO 268-6A-IP20 follow both voltage and current production setpoints?

Yes. REO lists 0...10 V and 0(4)...20 mA external setpoint inputs, as well as local adjustment from the operator keypad and display.

QUESTION03

What do the soft-start and soft-stop settings change on REO 268-6A-IP20?

Each ramp is adjustable from 0 to 60 seconds, allowing feeder amplitude to rise and fall progressively instead of changing abruptly during line starts and stops.

QUESTION04

Which rating decides whether the 6 A REO 268-6A-IP20 can run an existing feeder?

The connected magnet current must remain within the 6 A output rating, and the coil voltage, input supply, vibration-frequency range and thermal conditions must also match.

QUESTION05

When migrating from REO 268-6A-IP20 to the MFS 368 family, why is a drop-in swap unsafe?

REO identifies MFS 368 as the successor family, not as an unconditional pin-for-pin replacement. Recheck current, supply, enclosure, analog commands, sensor functions and wiring.

QUESTION06

Which feeder records produce an accurate REO 268-6A-IP20 quotation?

Provide the complete label, input voltage, 6 A and IP20 identification, feeder coil data, operating frequency, command signal, sensor use, quantity and destination.
