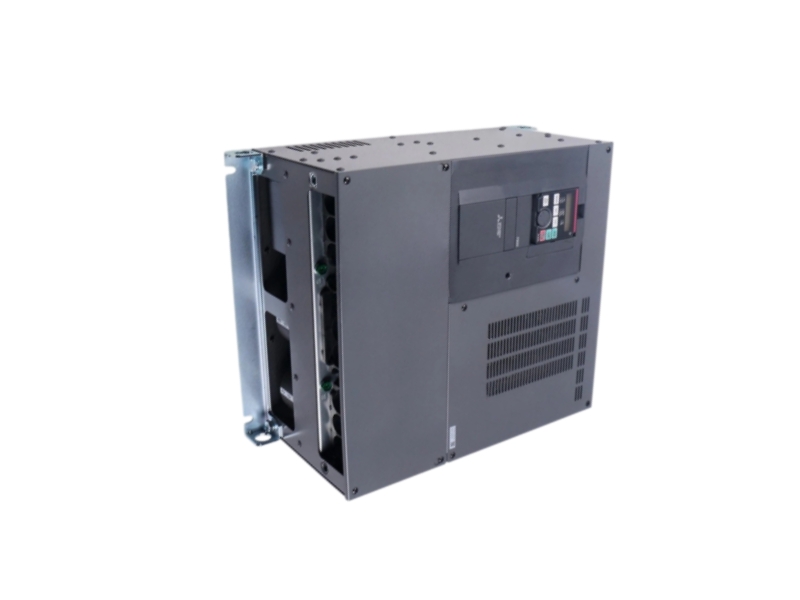

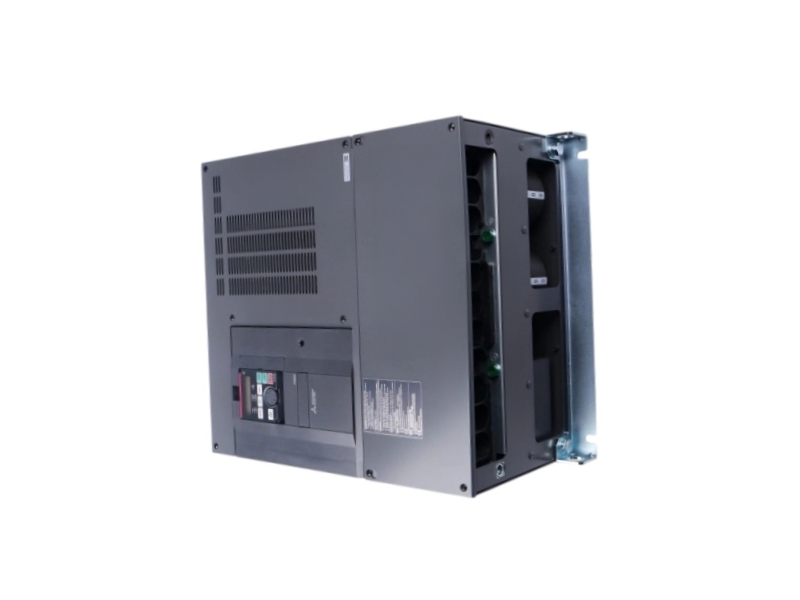

Name: Mitsubishi FR-F840-01800-2-60 FREQROL-F800 Inverter
Availability: InStock

Mitsubishi FR-F840-01800-2-60 FREQROL-F800 Inverter

MITSUBISHI FREQROL-F800OFFICIAL DATA

FR-F840-01800-2-60

Mitsubishi FR-F840-01800-2-60 is a 400 V-class FREQROL-F800 RS-485 inverter for fan and pump duty, rated 180 A SLD or 144 A LD.

Brand New Original One Year Warranty Fast Delivery

400 V / RS-485

Energy-focused fan and pump control

180 ASLD CURRENT

144 ALD CURRENT

90 kWSLD MOTOR

75 kWLD MOTOR

REQUIRED REACTORFR-HEL-H75K for 75 kW LD selection

PRODUCT ENQUIRYInquire Nowab@mooreplc.com

OFFICIAL DRIVE DATA

Dual ratings & power-system limits

Verified Mitsubishi 400 V class, current, overload, supply and reactor-selection data.

Inverter familyFREQROL-F800

Model classThree-phase 400 V; standard RS-485 model

SLD rated motor capacity90 kW

LD rated motor capacity75 kW

SLD rated output current180 A

LD rated output current144 A

SLD 60-second current198 A

SLD 3-second current216 A

LD 60-second current173 A

LD 3-second current216 A

SLD overload110% for 60 s; 120% for 3 s at 40°C

LD overload120% for 60 s; 150% for 3 s at 50°C

Rated output voltageThree-phase 380 to 500 V

Input voltageThree-phase 380 to 500 V, 50/60 Hz

Allowable input frequency fluctuation±5%

DC reactor requirementRequired for 01800 and larger unless FR-HC2 is used

75 kW reactorFR-HEL-H75K

Communication typeRS-485 standard model

Official dimensions and weight are shown only where the reviewed manufacturer material explicitly states them.

LOAD CONTROL BLUEPRINT

Fan, pump & energy-control duties

A load-oriented view of duty selection, motor control, process feedback and power-system accessories.

VARIABLE-TORQUE CONTROL ROUTE

STAGE 01

Profile the load

Collect motor current, fan or pump curve, overload duration and speed range.

STAGE 02

Choose duty

Select SLD or LD from continuous current and overload demand.

STAGE 03

Complete power stage

Install the required reactor or approved converter and protection hardware.

STAGE 04

Tune the process

Set motor, acceleration and process-control parameters, then validate energy and flow response.

PROCESS USES

Variable-air-volume fans

Adjust airflow by motor speed instead of relying only on dampers.

Water pumping systems

Match pump speed to demand while maintaining process pressure or flow.

Multi-motor facilities

Integrate large variable-torque loads into an RS-485 supervisory control scheme.

SELECTION CHECKPOINTS

DUTY

Use output current and overload needs to decide between SLD and LD.

REACTOR

Include the correct FR-HEL unit unless the approved FR-HC2 arrangement replaces it.

REGION

Confirm that the -2-60 catalog variant matches the destination and documentation set.

MOTOR

Verify nameplate voltage, insulation, cable length and operating speed range.

BUYER DECISION SUPPORT

Common Questions From Sellers About FR-F840-01800-2-60

Targeted answers for dual rating, reactor choice, regional configuration, process use, replacement and documentation.

Which duty column should govern sizing of Mitsubishi FR-F840-01800-2-60?

Use SLD when the load fits the lower overload profile and LD where the application needs the higher overload allowance. Continuous motor current must remain within the selected rating.

Why is an external reactor part of the Mitsubishi FR-F840-01800-2-60 installation plan?

Mitsubishi states that FR-F840-01800 and larger units always require a DC reactor unless an FR-HC2 high-power-factor converter is applied.

What does the -2-60 suffix mean for sourcing Mitsubishi FR-F840-01800-2-60?

Mitsubishi's Singapore catalog lists this regional 400 V standard RS-485 variant. Confirm the destination-market documentation and exact nameplate before ordering.

Why is Mitsubishi FR-F840-01800-2-60 commonly considered for fan and pump systems?

The FREQROL-F800 platform is designed around variable-torque process loads, where speed control can regulate flow or pressure and reduce throttling losses.

What changes must be audited when another F800 size replaces Mitsubishi FR-F840-01800-2-60?

Recalculate duty current, overload, motor capacity, reactor, terminals, physical installation, protective devices, wiring, parameters and communication settings before substitution.

Which official references belong with a Mitsubishi FR-F840-01800-2-60 RFQ?

Request the regional FR-F800 catalog and applicable F800 instruction manual, and provide the nameplate, motor data, chosen duty, reactor or converter, control method, quantity and destination.
