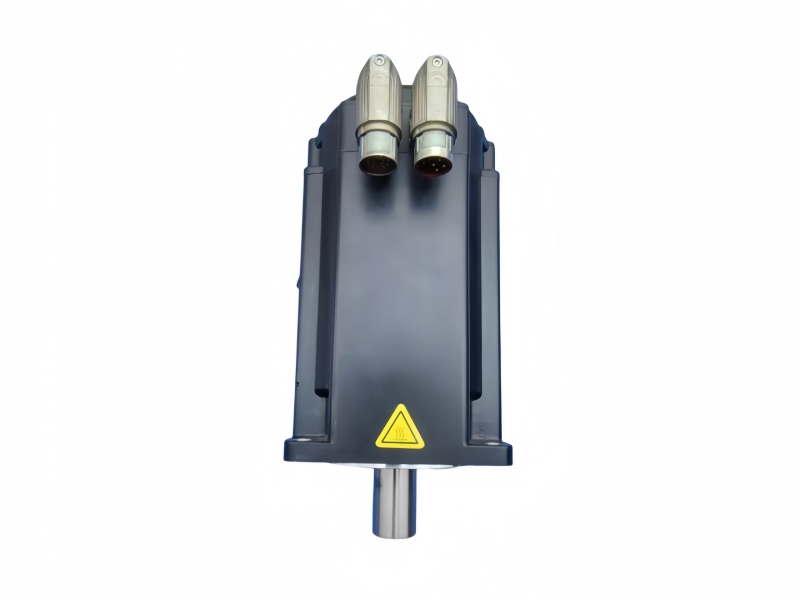

Beckhoff AM3065-0N30-0000 servomotor view 1

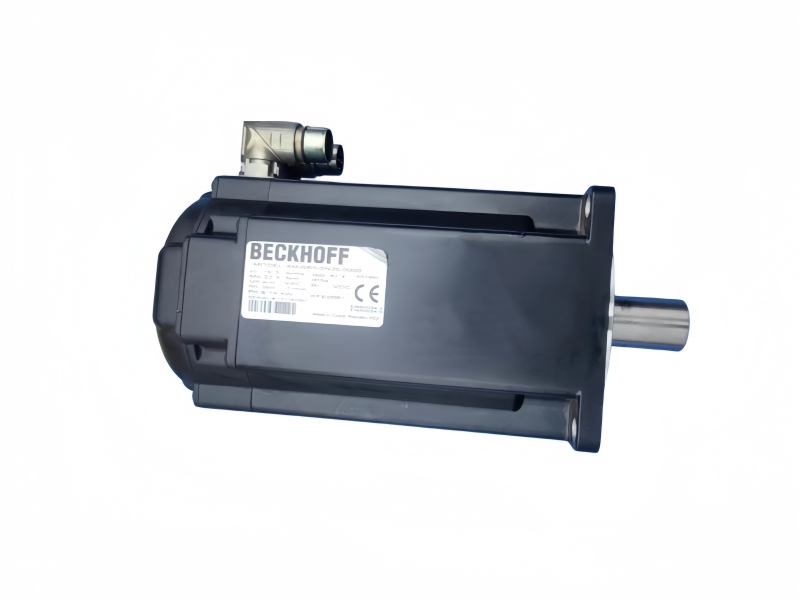

Beckhoff AM3065-0N30-0000 servomotor view 2

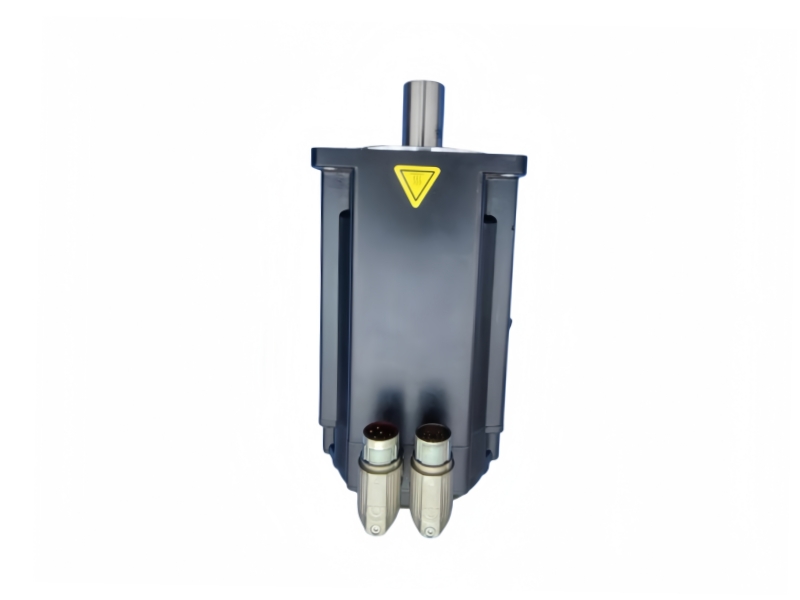

Beckhoff AM3065-0N30-0000 servomotor view 3

Beckhoff AM3065-0N30-0000 AM3000 Servomotor

AM
DYNAMIC SYNCHRONOUS MOTION

AM3065-0N30-0000

Beckhoff AM3065-0N30-0000 is an AM3000 servomotor with a smooth shaft, BiSS feedback and no holding brake, designed for precise dynamic motion control.

24.3 NM3500 RPMBISS
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Beckhoff
Item number AM3065-0N30-0000
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
OFFICIAL TECHNICAL DATA

Motor and feedback data

Exact winding and option-code details for axis sizing.

01
Order identifierAM3065-0N30-0000
Motor seriesAM3000
WindingN
Maximum rated mains voltage480 VAC
Standstill torque24.3 Nm
Standstill current17.8 A
Rated speed3500 rpm
Rated torque16.0 Nm
Rated output at 400 VAC5.86 kW
Peak torque91.6 Nm
Peak current89 A
Torque constant1.38 Nm/A
Rotor inertia40 kgcm²
EncoderBiSS singleturn absolute
Encoder resolution basis2048 sine periods
ShaftSmooth, without keyway
Holding brakeNone
ConnectionM23
CoolingNatural convection
Protection classIP54
MountingIM B5 / V1 / V3
Ambient temperature5 to 40 °C
Flange diameter130 mm j6
Shaft diameter32 mm k6
Overall length247.2 mm
Weight without brake15.4 kg
02
SIGNAL JOURNEY

How the servo axis creates controlled motion

Motor torque and encoder feedback close the machine-motion loop.

SIGNAL WORKBENCHCommand.
Energize.
Measure.
Correct.

A matched servo drive regulates the motor from command trajectory to measured position.

01

Command

The motion controller generates the requested position, velocity and torque trajectory.

02

Energize

The servo drive supplies regulated phase current to the permanent-magnet motor winding.

03

Measure

BiSS absolute feedback reports rotor position through the configured encoder interface.

04

Correct

Closed-loop control continuously compensates the axis against the commanded motion profile.

USE 01

HANDLING AXES

Power dynamic transfer, pick-and-place and indexing mechanisms.

USE 02

PACKAGING MOTION

Synchronize precise cyclic machine movements with controller trajectories.

USE 03

MACHINE TOOLS

Drive feed or positioning axes that match the motor torque and inertia envelope.

BUYER QUESTIONS

FAQ for Beckhoff AM3065-0N30-0000

Practical guidance for confident sourcing and system planning.

03
QUESTION 01

What does the 0N30 option string specify for Beckhoff AM3065-0N30-0000?

It identifies the N winding with a smooth shaft, BiSS singleturn absolute encoder and no holding brake.

QUESTION 02

Which drive feedback interface must match Beckhoff AM3065-0N30-0000?

The servo drive must support the installed BiSS encoder interface and the corresponding Beckhoff motor feedback configuration.

QUESTION 03

Where is Beckhoff AM3065-0N30-0000 typically applied?

It suits dynamic industrial axes such as packaging, handling, indexing and machine positioning where its torque and inertia are appropriate.

QUESTION 04

Which mechanical details matter when replacing Beckhoff AM3065-0N30-0000?

Check flange and shaft dimensions, overall length, connector orientation, mounting position, coupling, feedback type and the absence of a brake.

QUESTION 05

What official successor is recommended for Beckhoff AM3065-0N30-0000?

Beckhoff lists AM8064 as the recommended alternative for the AM3065 service product; it is not an automatic drop-in replacement and the complete axis must be revalidated.

QUESTION 06

What should an RFQ for Beckhoff AM3065-0N30-0000 include?

Provide the full option code, quantity, destination, motor label, existing drive type, cable lengths, connector orientation and required delivery date.
