Description:SP-110996 / SP-105060 / 105066-02 — pulse control board for precise SCR firing signal generation and stable motor drive control in Allen-Bradley 1395 systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Allen-Bradley |
| Item number | SP-110996 SP-105060 105066-02 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Automation Controller | 20 Years of Industrial Automation Supply Experience

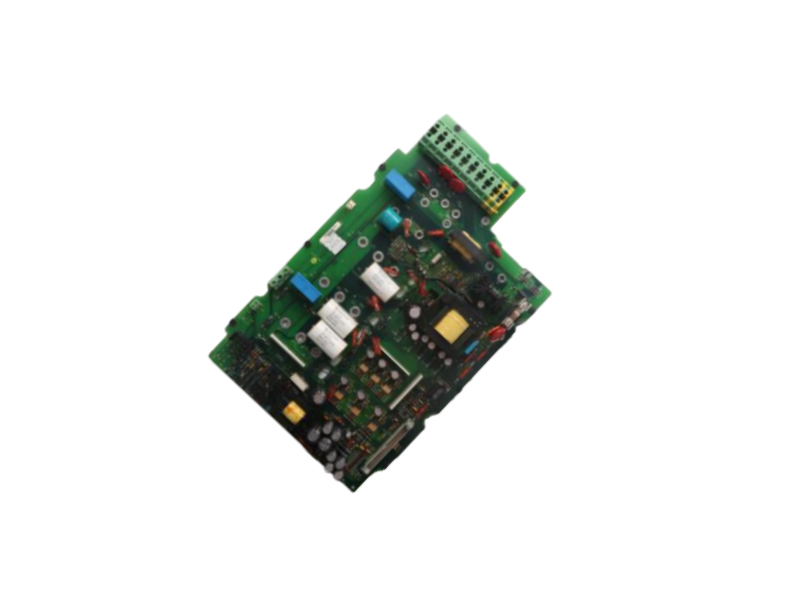

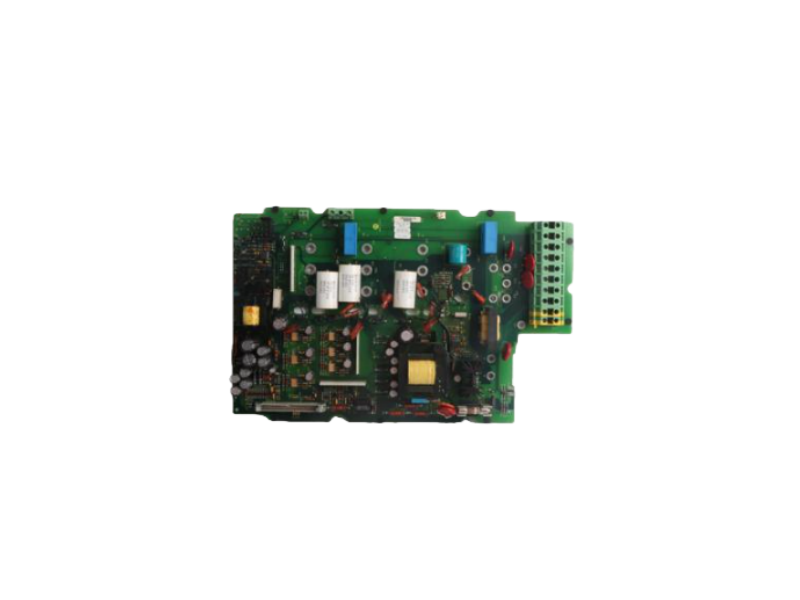

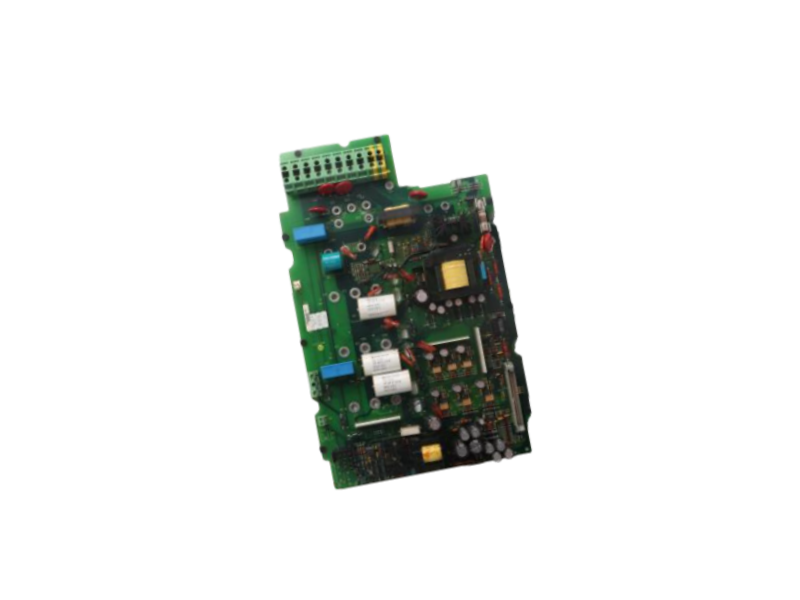

Allen-Bradley |SP-110996 SP-105060 105066-02 |key control board
What it is
Allen-Bradley SP-110996, SP-105044, and 105066-02 are key control board components used in the 1395 series industrial drive systems (DC drives), primarily for pulse signal processing and drive control functions.These modules typically function as Pulse Boards/Armature Pulse Control Boards, responsible for SCR trigger signal generation, gate pulse control, and drive system current regulation, making them one of the core electronic components in DC drive systems.
This series is widely used in industrial motor control systems, especially suitable for medium- to high-power DC drive equipment.
Technical Specifications
|
Parameter |
Specification |
|
Brand: |
Allen-Bradley |
|
Model: |
SP-110996 / SP-105044 / 105066-02 |
|
Series: |
1395 Drive Series |
|
Module Type: |
Pulse Control Board / ARM Pulse PCB |
|
Functions: |
SCR triggering, pulse signal generation, drive control |
|
Operating Temperature: |
-20°C ~ +85°C |
|
Power Consumption: |
Low-power industrial design |
|
Structure: |
Industrial-grade PCB board |
|
Mounting Method: |
Internal plug-in mounting |
Structure and Interface
Specifically designed for Allen-Bradley 1395 drive systems, offering strong compatibility.
Provides precise SCR trigger pulse control for improved drive stability.
Industrial-grade design suitable for high-temperature and complex environments.
Powerful signal processing capabilities ensure smooth motor operation.
Compact modular structure facilitates installation and maintenance.
Supports replacement and repair, reducing equipment downtime risks. Mature application solutions with proven reliability.
Application Areas
Industrial DC Motor Drive Systems
Iron and Metallurgical Production Lines
Power and Energy Control Systems
Petrochemical Industry
Mining and Heavy Industry Equipment
Automated Production and Process Control
DCS/PLC Industrial Control Systems
|
