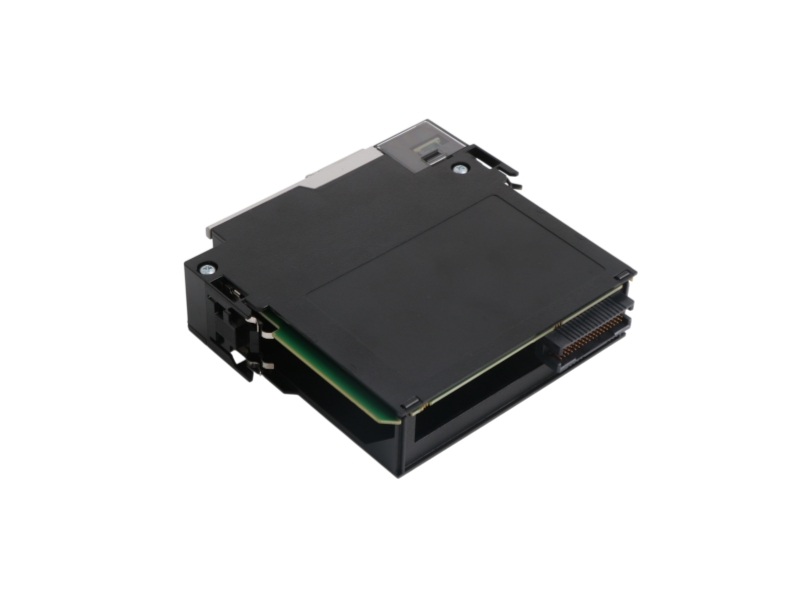

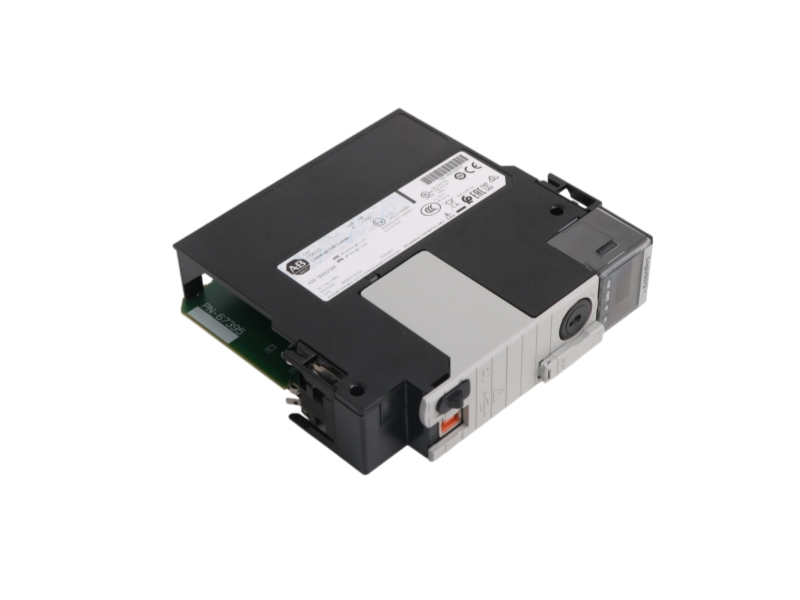

Name: Allen-Bradley 1756-L73 ControlLogix 5570 8 MB Controller
Availability: InStock

Allen-Bradley 1756-L73 ControlLogix 5570 8 MB Controller

ALLEN-BRADLEY · CONTROLLOGIX ACTIVE MATURE

CONTROLLOGIX 5570

1756-L73

Allen-Bradley 1756-L73 is an 8 MB ControlLogix 5570 controller with USB programming.

CONTROLLOGIX 8 MB CONTROLLER

NETWORK ROLE ControlLogix 8 MB Controller

IN NODE OUT

STATUS Lifecycle status: Active Mature

Brand New Original One Year Warranty Fast Delivery

REQUEST A QUOTE Inquire Now Send the module label, existing network layout, quantity and destination for a focused review. ab@mooreplc.com ↗

VERIFIED PRODUCT DATA

Product specifications

Core electrical, network, environmental and mechanical data.

User memory8 MB

I/O memory0.98 MB

Digital I/O maximum128,000

Analog I/O maximum4,000

Total I/O maximum128,000

Current draw at 1.2V DC5 mA

Current draw at 5.1V DC800 mA

Power dissipation2.5 W

Thermal dissipation8.5 BTU/hr

Isolation voltage30V continuous; basic insulation; USB port-to-system

USB portUSB 2.0 full speed (12 Mbps)

Nonvolatile storage1 GB Secure Digital card 1784-SD1

Slot width1 ControlLogix chassis slot

Module locationChassis-based, any slot

Temperature codeT4

Enclosure typeNone, open-style

Weight approx.0.24 kg

Physical dimensions3.5x14.2x14.5cm

FUNCTION & APPLICATION

Network integration

How the adapter is used, installed and checked in its intended control architecture.

SYSTEM PATH

PLCADAPTERI/O

Use the product-specific wiring and controller project as the final integration reference.

CONTROLLOGIX PROCESSING

Chassis controller

The 1756-L73 executes the ControlLogix application in a 1756 chassis and exchanges data with installed communication and I/O modules.

PROGRAMMING

USB service connection

Use the USB port for temporary programming, configuration, firmware update and online edits as described by Rockwell.

SYSTEM DESIGN

Controller and chassis match

Confirm chassis family, power supply, controller redundancy plan, energy-storage module and Logix Designer revision before replacement.

PURCHASING QUESTIONS

FAQ

Clear answers for selection, installation, replacement review and quotation.

How much application memory does Allen-Bradley 1756-L73 provide?

Rockwell lists 8 MB of user memory and 0.98 MB of I/O memory for the ControlLogix 5570 controller.

What I/O capacity is associated with Allen-Bradley 1756-L73?

The official technical data lists up to 128,000 digital I/O, 4,000 analog I/O and 128,000 total I/O.

How is Allen-Bradley 1756-L73 programmed?

The controller provides a USB 2.0 full-speed port intended for temporary programming, configuration, firmware updates and online edits.

Is Allen-Bradley 1756-L73 still supplied by Rockwell Automation?

Rockwell lists the lifecycle as Active Mature, with replacement availability, a five-day estimated lead time and a one-year standard warranty.

What must be verified before replacing Allen-Bradley 1756-L73?

Match the 1756 chassis, power supply, controller redundancy design, energy-storage module, project revision and application memory requirements before substitution.

Which official references are relevant to an Allen-Bradley 1756-L73 quotation?

Rockwell lists 1756-TD001 technical data, 1756-UM001 user manual, controller firmware and 1784-SD memory resources; provide the series, label, quantity and destination.
