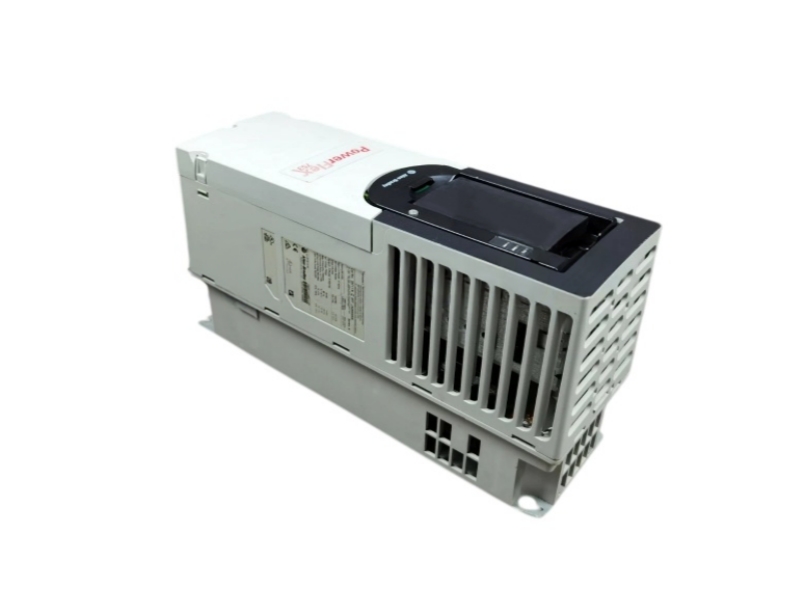

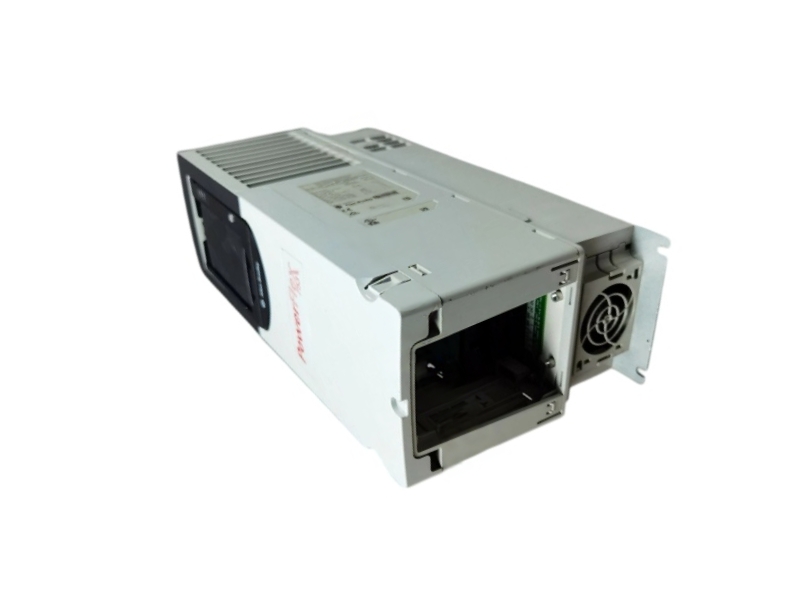

Name: Allen-Bradley 20F11NC5P0JA0NNNNN PowerFlex 753 AC Drive
Availability: InStock

Allen-Bradley 20F11NC5P0JA0NNNNN PowerFlex 753 AC Drive

AUTOMATION DATA SHEETALLEN-BRADLEY / VERIFIED

400 VAC · FRAME 2

20F11NC5P0JA0NNNNN

Allen-Bradley 20F11NC5P0JA0NNNNN is a PowerFlex 753 three-phase AC drive with embedded I/O, filtered input construction, an internal braking transistor and no factory-installed HIM.

Brand New OriginalOne Year WarrantyFast Delivery

MOTOR CONTROL / EMBEDDED I/OOpen-type variable-frequency control with DC terminals

5 A2.2 kW3 PH

OPERATOR INTERFACEBlank · No HIM

QUOTE / STOCK / DELIVERYInquire Nowab@mooreplc.com →

VERIFIED PRODUCT DATA

Product specifications

Official Rockwell Automation catalog configuration and PowerFlex 750-Series data for 20F11NC5P0JA0NNNNN.

PARAMETEROFFICIAL VALUEPARAMETEROFFICIAL VALUE

BulletinPowerFlex 753Common-mode jumperInstalled, preferred configuration

Embedded control hardwareEmbedded I/ODynamic brakingInternal DB transistor

Voltage class400 VAC, 3 phaseHuman interface moduleBlank, no HIM

Output current5 ADrive product code20F

Normal-duty rating2.2 kWTransistor output48 VDC, 250 mA max., open drain

Heavy-duty rating2.2 kW, Frame 2 configurationRelay output240 VAC / 24 VDC, 2 A max.

Frame sizeFrame 2Standard warranty1 year

EnclosureIP20/IP00, NEMA/UL Open TypeLifecycle statusActive

CoolingForced airUPC884951166325

Protection levelStandard protectionOrigin statementMultiple manufacturing countries

Input arrangementAC input with DC terminalsNormal-duty output class5.0 A at 400 V input class

EMC filterFilteredCatalog current code5P0

Rockwell identifies this exact catalog number as an active, repairable/replaceable PowerFlex 753 configuration.

02FUNCTION
& APPLICATION

Drive installation blueprint

Review motor duty, panel protection, braking hardware and operator-interface requirements for this exact catalog string.

01 / APPLICATION

Machine drive control

Apply the unit where a PowerFlex 753 is required for configurable motor control with built-in control terminals and expandable option architecture.

02 / INTEGRATION

Panel and airflow design

Provide a correctly rated cabinet, ventilation path, protective devices and cable routing for an open, forced-air drive assembly.

03 / COMMISSIONING

Motor and option setup

Enter the motor nameplate, select the intended control mode, confirm I/O polarity and commission any network or feedback option separately.

PROJECT PLANNING CHECKPOINTS

MOTOR

Match the motor nameplate and overload profile to the intended normal- or heavy-duty service.

EMC

Review the grounding system before retaining the installed common-mode jumper.

BRAKE

Size any external resistor and wiring for the application energy and duty cycle.

HMI

Add an approved local or remote operator interface if keypad operation is required.

CATALOG STATUS

Rockwell lists the exact catalog number as Active and repairable/replaceable; actual lead time and manufacturing origin are order-specific.

TECHNICAL & ORDER SUPPORT

Product FAQ & Buying Guide

Find practical answers for purchasing, compatibility, documentation and replacement planning.

What does the complete Allen-Bradley 20F11NC5P0JA0NNNNN catalog string identify?

It identifies a PowerFlex 753 air-cooled configuration with embedded I/O, open-type construction, filtered AC input with DC terminals, an internal braking switch and no installed HIM.

Which enclosure decision is required before installing Allen-Bradley 20F11NC5P0JA0NNNNN?

Because the drive is supplied as an open type, the machine builder must provide a suitable cabinet and maintain the spacing, airflow and environmental limits in the installation instructions.

How is Allen-Bradley 20F11NC5P0JA0NNNNN normally used in a motor-control panel?

It provides adjustable-frequency motor control for machinery that needs the PowerFlex 750-Series programming model, embedded control terminals and optional communication or feedback modules.

How should current availability for Allen-Bradley 20F11NC5P0JA0NNNNN be interpreted?

Rockwell shows an active lifecycle, but the displayed factory lead time is not Apter stock; request a dated quotation for condition, origin, shipment and warranty terms.

What must be matched when replacing a different PowerFlex 753 with Allen-Bradley 20F11NC5P0JA0NNNNN?

Compare every catalog-string position, plus firmware, motor duty, enclosure, DC-bus wiring, braking parts, option cards, HIM arrangement and safety functions.

What should accompany a documentation or price request for Allen-Bradley 20F11NC5P0JA0NNNNN?

Send the full drive label, series and firmware, motor nameplate, installed options, required quantity and destination so the quotation can be checked against Rockwell's cut sheet and manuals.
