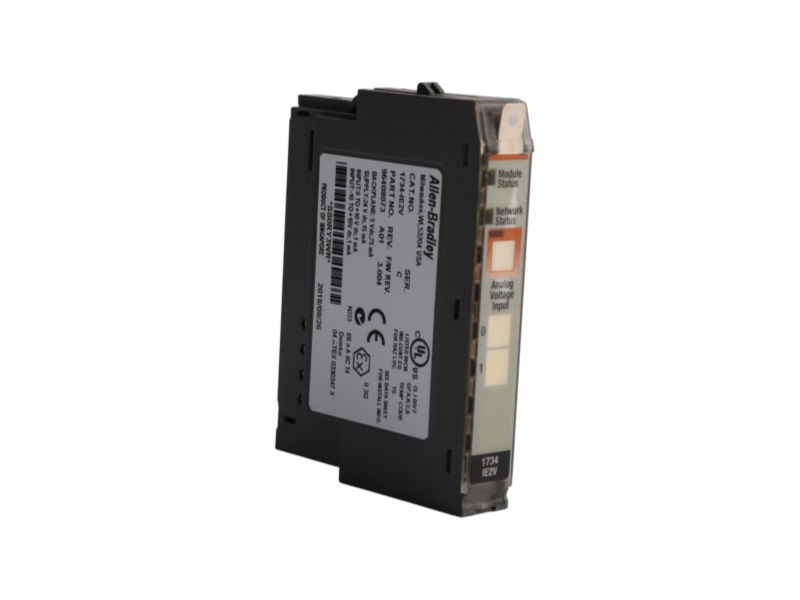

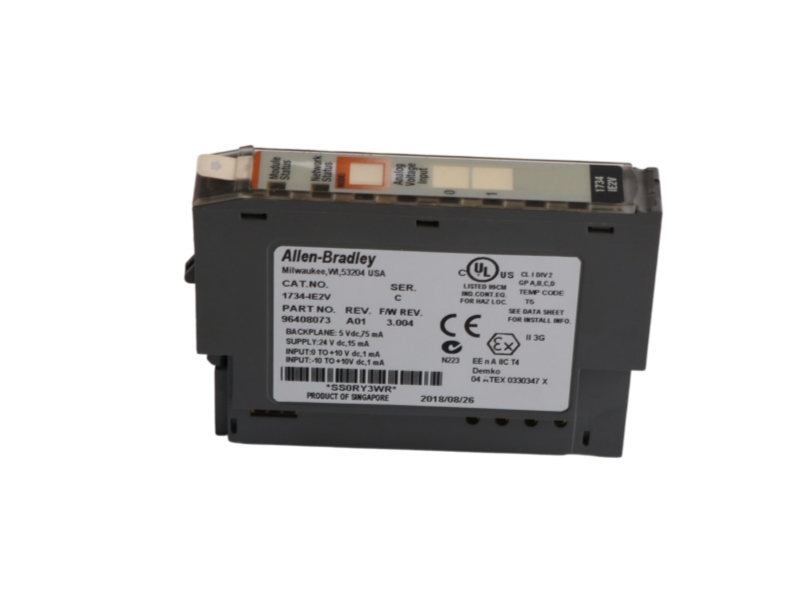

Name: Allen-Bradley 1734-IE2V POINT I/O 24V DC 2-Channel Analog Voltage Input Module
Availability: InStock

Allen-Bradley 1734-IE2V POINT I/O 24V DC 2-Channel Analog Voltage Input Module

ALLEN-BRADLEY · POINT I/O ACTIVE

POINT I/O / ANALOG VOLTAGE

1734-IE2V

Allen-Bradley 1734-IE2V is a 24V DC two-channel analog voltage input module for POINT I/O systems.

POINT I/O 2 VOLTAGE INPUTS

NETWORK ROLE POINT I/O 2 Point Analog Input Module

IN NODE OUT

STATUS Lifecycle status: Active

Brand New Original One Year Warranty Fast Delivery

REQUEST A QUOTE Inquire Now Send the module label, existing network layout, quantity and destination for a focused review. ab@mooreplc.com ↗

VERIFIED PRODUCT DATA

Product specifications

Core electrical, network, environmental and mechanical data.

Input channels2

Input signal range0…10V and ±10V

Input resolution15 bits plus sign; 320 µV/count

Input impedance100 kΩ

Input resistance200 kΩ

Conversion typeDelta Sigma

Absolute accuracy0.1% full scale at 25 °C

Data formatSigned integer

POINTBus current75 mA at 5V DC

External supply nominal24V DC

External supply range10…28.8V DC

External supply current15 mA at 24V DC

Power dissipation maximum0.75 W at 28.8V DC

Thermal dissipation maximum2.5 BTU/hr at 28.8V DC

Isolation voltage50V continuous; tested at 2200V DC for 60 s

Operating temperature-20…55 °C (-4…131 °F)

Dimensions (H × W × D)56.6 × 12.1 × 77.5 mm (2.23 × 0.48 × 3.05 in.)

Weight33 g (1.16 oz)

FUNCTION & APPLICATION

Network integration

How the adapter is used, installed and checked in its intended control architecture.

SYSTEM PATH

PLCADAPTERI/O

Use the product-specific wiring and controller project as the final integration reference.

VOLTAGE ACQUISITION

Two-channel analog measurement

The module converts 0…10V or ±10V field signals into POINT I/O data for a controller.

POINT I/O ASSEMBLY

Terminal-base installation

Install the module on a supported 1734 wiring base and budget 75 mA of POINTBus current.

SIGNAL INTEGRITY

Shielded field wiring

Use the specified conductor category and shielded analog wiring, then verify the configured voltage range in the controller project.

PURCHASING QUESTIONS

FAQ

Clear answers for selection, installation, replacement review and quotation.

Which voltage ranges can Allen-Bradley 1734-IE2V measure?

The official POINT I/O documentation lists 0…10V and ±10V input ranges for the two-channel 1734-IE2V module.

How is Allen-Bradley 1734-IE2V mounted in a POINT I/O system?

The module uses a supported 1734 terminal base such as 1734-TB, 1734-TBS, 1734-TOP or 1734-TOPS; confirm the base and keyswitch position 3 before installation.

What accuracy and resolution does Allen-Bradley 1734-IE2V provide?

Rockwell lists 15-bit resolution plus sign at 320 µV/count and 0.1% full-scale accuracy at 25 °C.

What is the supply and environmental requirement for Allen-Bradley 1734-IE2V?

The module uses a nominal 24V DC external supply, accepts 10…28.8V DC, and operates from -20…55 °C.

Can a current-input POINT I/O module replace Allen-Bradley 1734-IE2V?

Not without an engineering review. Compare the voltage input range, terminal base, controller tags, scaling and wiring because a current-input module has a different signal function.

What should be included in an Allen-Bradley 1734-IE2V quotation request?

Provide the module label, series, terminal-base type, required quantity and destination; Rockwell lists 1734-IN027, 1734-UM001, EDS and analog AOP resources.
