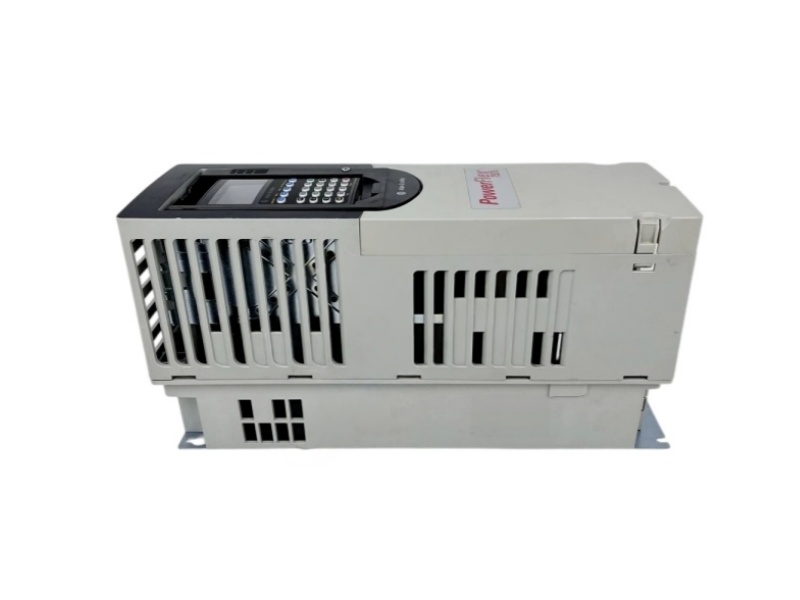

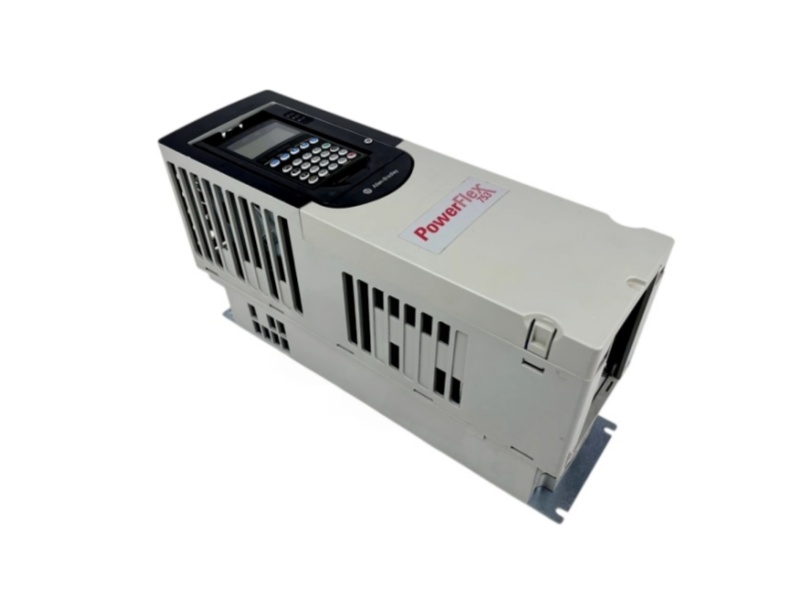

Name: Allen-Bradley 20G11NC011JA0NNNNN PowerFlex 755 AC Drive
Availability: InStock

Allen-Bradley 20G11NC011JA0NNNNN PowerFlex 755 AC Drive

PRODUCT ENQUIRY

EtherNet/IP AC drive for coordinated motion

Inquire Nowab@mooreplc.com →

Allen-BradleyPOWERFLEX 755

20G11NC011JA0NNNNN

Allen-Bradley 20G11NC011JA0NNNNN is a 400 VAC PowerFlex 755 AC drive for reliable speed and torque control in industrial motor applications.

● One Year Warranty● Fast Delivery● Worldwide Shipping

OFFICIAL ENGINEERING DATA

Power, enclosure and option-code specifications

The complete catalog number fixes the drive frame, current class and installed base options.

Catalog number20G11NC011JA0NNNNNDrive familyPowerFlex 755

Input voltage400 VAC, 3-phaseOutput current11.5 A

Normal-duty rating5.5 kWHeavy-duty rating5.5 kW for Frame 2 configuration

Frame sizeFrame 2CoolingStandard protection, forced air

Input arrangementAC input with precharge and DC terminalsEnclosureIP20 / IP00, NEMA / UL Open Type

NetworkEmbedded EtherNet/IPEMC optionFiltered with CM jumper installed

Dynamic brakingDB transistorOperator interfaceBlank; no HIM included

Lifecycle statusActive MatureReplacement statusReplacement available

Repair statusRepairable / replaceableUPC884951214989

Warranty reference1 year standard durationCountry of originMultiple manufacturing locations

FROM INPUT TO CONTROL

How 20G11NC011JA0NNNNN manages motor power

The drive links EtherNet/IP commands to a filtered, air-cooled motor power stage.

Coordinate

Embedded EtherNet/IP exchanges commands and operating data with the control system.

Precharge

The AC input and precharge circuit establish the DC link before motor operation.

Regulate

The Frame 2 power stage controls the connected motor at the configured duty rating.

Brake

The built-in DB transistor switches the selected external braking arrangement when required.

ENGINEERING FIT

FIT 01

Integrated Logix systems

Use embedded EtherNet/IP for coordinated control and drive diagnostics.

FIT 02

Regenerative deceleration

Engineer the compatible braking resistor and thermal duty around the DB transistor.

FIT 03

Open-panel installations

Provide the enclosure and cooling environment required by the IP20/IP00 open drive.

BUYER QUESTIONS

FAQ for 20G11NC011JA0NNNNN

Model-specific answers support engineering and purchasing decisions.

Which current and frame configuration does Allen-Bradley 20G11NC011JA0NNNNN use?

Rockwell Automation identifies this catalog number as an 11.5 A, 400 VAC PowerFlex 755 in Frame 2.

Does Allen-Bradley 20G11NC011JA0NNNNN include an operator HIM?

No. The catalog configuration is listed as blank with no HIM included.

How is dynamic braking provided on Allen-Bradley 20G11NC011JA0NNNNN?

The drive includes a DB transistor; the external braking resistor and its duty must be selected for the application.

What does Active Mature mean for Allen-Bradley 20G11NC011JA0NNNNN supply planning?

Rockwell lists the product as Active Mature and indicates replacement availability, so lifecycle planning should include the official replacement path and installed options.

Which configuration points prevent a wrong replacement for Allen-Bradley 20G11NC011JA0NNNNN?

Match voltage and current class, frame, enclosure, filtering, CM jumper, EtherNet/IP setup, braking hardware, firmware and parameter file.

Which Rockwell documents should be requested with Allen-Bradley 20G11NC011JA0NNNNN pricing?

Request the product cutsheet plus publications 750-TD001 and 750-IN001, and provide the nameplate, firmware, options, quantity and destination.
