 2713P-T7WD1 | human-machine interface

PLC Autocontroller | Sales Manager May | Wechat id: dcsfcs

Product Identification

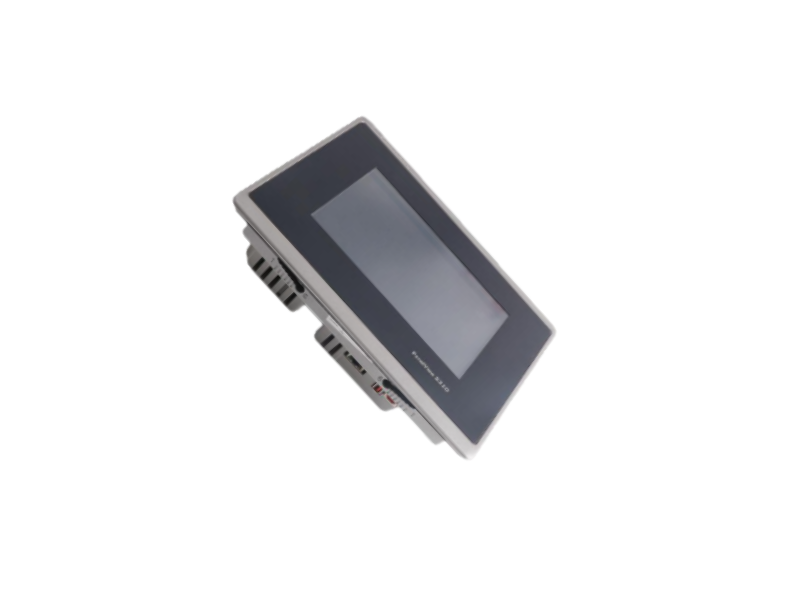

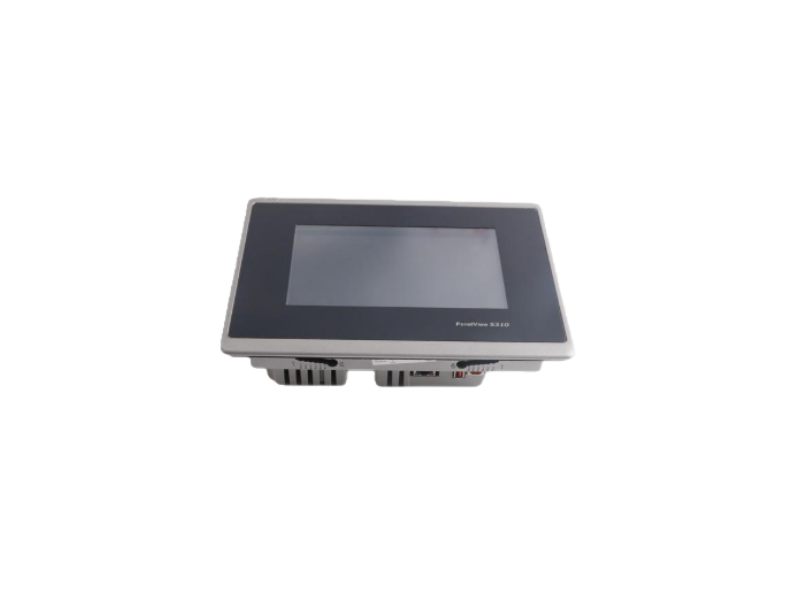

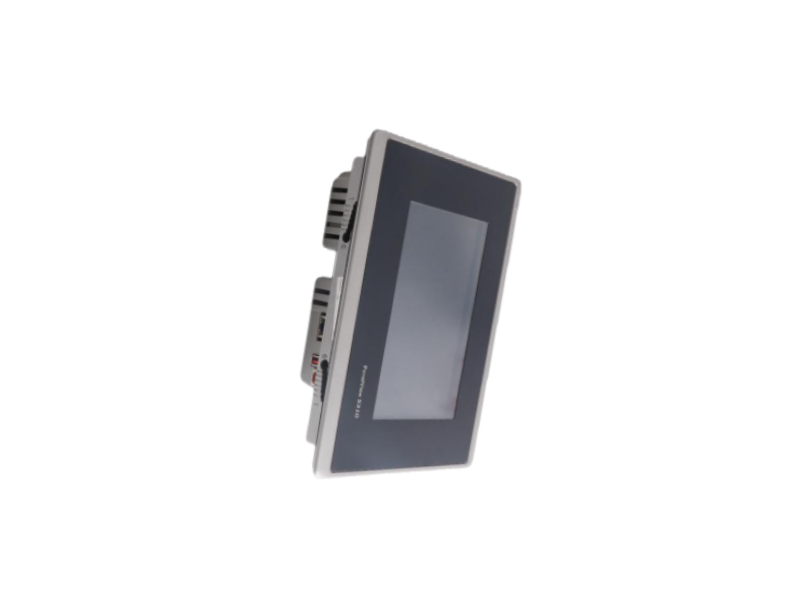

The Allen-Bradley 2713P-T7WD1 is a PanelView 5310 series industrial human-machine interface (HMI) graphical terminal designed for modern industrial automation and machine control applications. Equipped with a 7-inch widescreen TFT color touchscreen display, it supports intuitive human-machine interaction, enabling equipment monitoring, parameter setting, alarm management, and production process visualization.

The 2713P-T7WD1 supports seamless integration with CompactLogix and ControlLogix controllers and can be configured using the Studio 5000 View Designer environment. Its modern industrial design, rapid response capabilities, and stable communication performance make it widely applicable in manufacturing automation, packaging equipment, conveyor systems, and smart factories.

 Product Model: 2713P-T7WD1

Product Series: PanelView 5310

Product Type: Graphic Terminal / HMI

Display Size: 7-inch widescreen TFT color display

Resolution: 800 × 480 WVGA

Operation Method: Resistive touchscreen

Display Colors: 1.6 million colors

Communication Interface: 1 × Industrial Ethernet

USB Interface: USB Host Interface

Memory: 1 GB RAM / 4 GB Flash (partial data shown)

Protection Rating: Front panel IP66

Operating Temperature: 0°C to +50°C

Installation Method: Panel mount

Development Software: Studio 5000 View Designer

Features (General Summary):

High-Performance Industrial HMI Platform

The 2713P-T7WD1 adopts the PanelView 5310 platform architecture, providing rapid response capabilities to meet the real-time monitoring and operation needs of industrial equipment.

High-Definition Widescreen Display

The 7-inch widescreen TFT color display provides a clear human-machine interface, enhancing the visualization of equipment operating status and improving operational efficiency.

Deep Integration with Logix Platform

Supports direct integration with ControlLogix 5570, 5580, and CompactLogix series controllers, automatically sharing tag, alarm, and control data.

Industrial-Grade Reliability Design

The device features an industrial-grade structure and IP66 front panel protection, enabling long-term continuous operation in complex industrial environments.

Convenient Remote Maintenance Capability

Built-in VNC Server functionality supports remote monitoring and troubleshooting, improving the efficiency of industrial equipment maintenance.

Application Areas

Manufacturing: Automated Production Line Monitoring

Packaging Industry: Packaging Equipment User Interface

Conveying Systems: Conveying Equipment Parameter Control

Water Treatment: SCADA Control Terminal

Food and Beverage: Production Process Monitoring

Petrochemical Industry: Process Control and Alarm Management

Smart Factory: Industrial Data Visualization

OEM Equipment: Machine Control Human-Machine Interface
