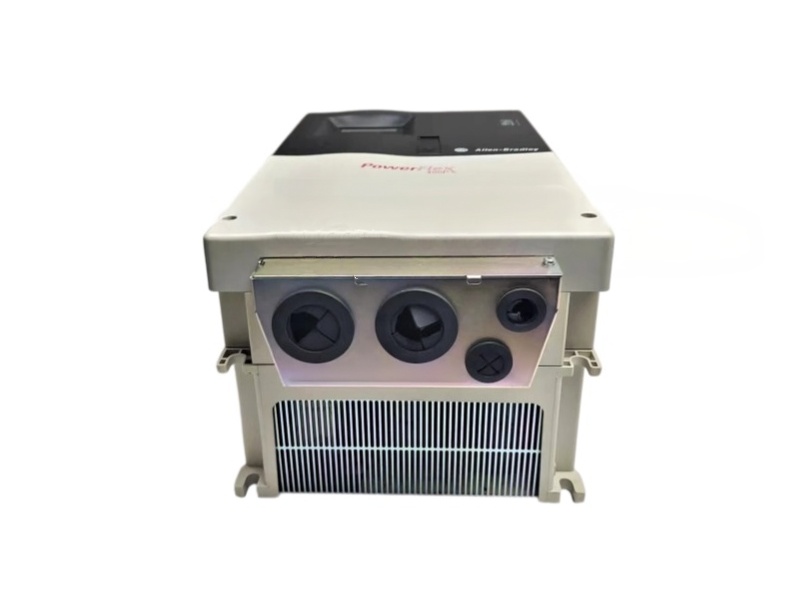

Allen-Bradley 22P-D038A103 PowerFlex 400P front view

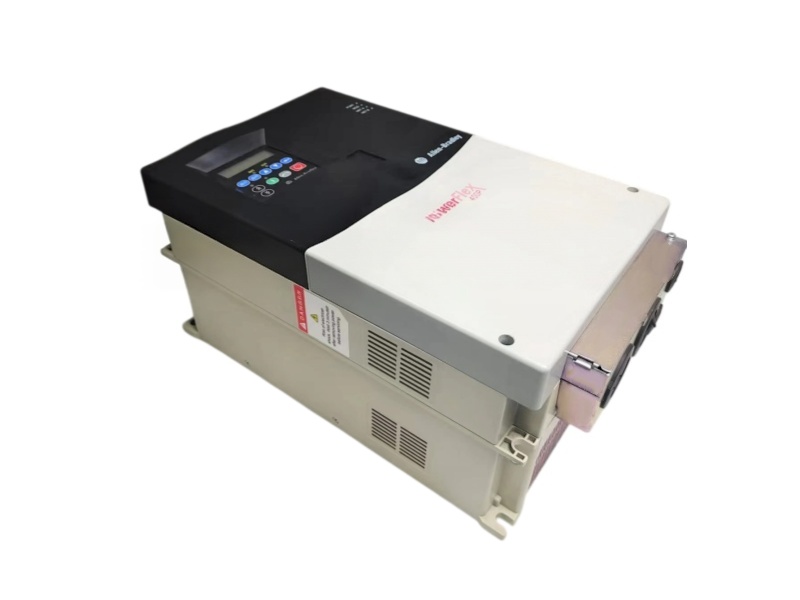

Allen-Bradley 22P-D038A103 AC drive detail
PowerFlex 400P 22P-D038A103 product image

Allen-Bradley 22P-D038A103 PowerFlex 400P Adjustable Frequency AC Drive

ALLEN-BRADLEY POWERFLEX 400P

22P-D038A103

Allen-Bradley 22P-D038A103 is a 480 V class PowerFlex 400P AC drive rated for HVAC and pump-duty motor control, with normal- and heavy-duty ratings in a ventilated IP30 enclosure.

480 VVoltage class
38 AOutput current
25 HPNormal duty
Frame DDrive frame
+Integrity Supply+One Year Warranty+Fast Delivery
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Allen-Bradley
Item number 22P-D038A103
Country of Origin USA
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
OFFICIAL DRIVE DATA

PowerFlex 400P ratings, protection and control data

Verified Rockwell Automation data.

Drive familyPowerFlex 400P
Input phaseThree-phase
Input voltage class480 V AC
Permitted input range340 to 528 V AC
Input frequency48 to 63 Hz
Input current33.3 A
Input kVA40 kVA
Output voltage0 to 460 V AC, three-phase
Continuous output current38 A
One-minute output current45 A
Three-second output current60 A
Normal-duty rating18.5 kW / 25 HP
Heavy-duty rating15 kW / 20 HP
Drive frameFrame D
EnclosureIP30 / NEMA/UL Type 1
Power loss606 W
Recommended input fuse50 A
Maximum short-circuit rating200 kA
Power factor0.98 displacement
Drive efficiency97.5% typical
Control methodSensorless vector and volts-per-hertz
Carrier frequency2 to 10 kHz
Output frequency0 to 320 Hz
Acceleration/deceleration0 to 600 s programmable
Digital inputs7 programmable
Analog inputs2
Motor overloadI²t, 110% for 60 s, Class 10
Ground-fault protectionPhase-to-ground on output
Operating temperature-10 to 45°C for IP30 enclosure
Storage temperature-40 to 70°C
Relative humidity0 to 95%, non-condensing
Maximum altitude without derating1,000 m
CoolingFan cooled
Weight12.7 kg
02
HVAC AND PUMP CONTROL

Drive path from incoming power to motor process

Practical drive-duty decisions.

01

Select duty

Match the motor load profile to the normal- or heavy-duty rating before sizing protection.

02

Wire safely

Coordinate the specified branch protection, grounding and enclosure requirements.

03

Commission

Enter verified motor data and tune the speed, ramp and process-control functions.

04

Monitor

Use drive status and fault information to support HVAC or pump-system maintenance.



Air-handling systems

Variable-speed control for fans and other building-airflow equipment.



Pump installations

Process and building-service pump control with adjustable acceleration and speed.



Retrofit panels

Replacement or modernization where the approved frame, ratings and options are matched.

03
PRODUCT-SPECIFIC GUIDE

22P-D038A103 questions answered

Drive service guidance.

Q

How should normal duty and heavy duty be chosen for Allen-Bradley 22P-D038A103?

Use the actual motor current, overload demand and load profile; the normal-duty and heavy-duty ratings are different and must not be selected from horsepower alone.

Q

What does enclosure code A mean on Allen-Bradley 22P-D038A103?

The official catalog coding identifies an IP30, NEMA/UL Type 1 enclosure, so cabinet ventilation and environmental protection must suit that construction.

Q

Which EMC accessory is listed for Allen-Bradley 22P-D038A103?

Rockwell Automation lists 22-RFD050 for the relevant rating; confirm cable length, grounding and installation category before ordering the filter.

Q

What must be compared before replacing Allen-Bradley 22P-D038A103?

Compare duty rating, motor data, frame, enclosure, branch protection, control wiring, communication options and parameter backup with the installed drive.

Q

Does the Allen-Bradley 22P-D038A103 manual confirm current factory availability?

No. The manual establishes technical data, not live inventory or lifecycle supply; request a dated quotation for condition and lead time.

Q

Which details produce an accurate Allen-Bradley 22P-D038A103 RFQ?

Send the full catalog number, nameplate photo, motor plate, load type, existing option modules, fault history, quantity and delivery destination.
